OEM Vehicle Waterproof 3inch 40W Spot LED Light Bars 4X4 Offroad Laser LED Fog Pods Work Light for Car Truck Tractor Motorcycle
Product Description
Basic Info.
Model NO.
BLW0410R
IP Rating
IP68
Power
31-40W
Application
Universal Heavy Machine LED Work Light
Voltage
DC9-36V
Certification
CE, EMC, REACH, RoHS, CE / R10 / Cispr 25-Class3
Size

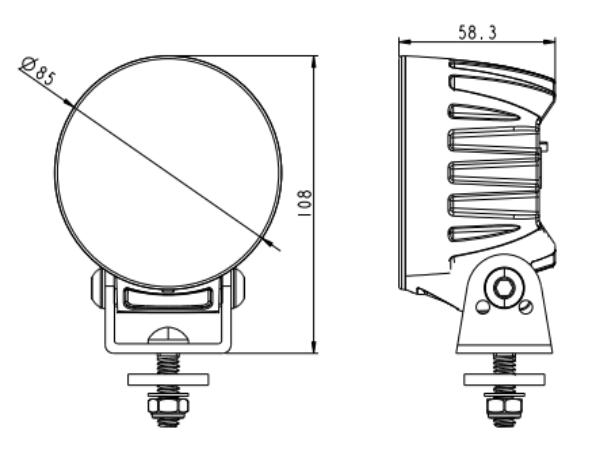

3.3inch--85*108*58.3mm

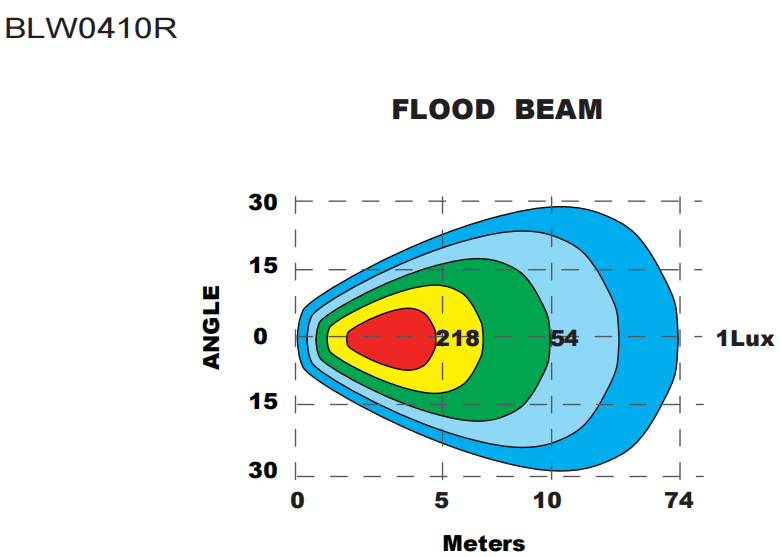

Beam Pattern
Flood Beam (60°)
Raw Luminous
3800lm
LED
4X10W Lp LED
Product Description & Comparison
| TYPE | BLW0310R | BLW0410R |
| SIZE | 3.3INCH | |
| WATTS | 30W | 40W |
| LUMENS | 3300lm | 3800lm |
| BEAM | Flood Beam (60°) | |
| FEATURES | In-Built Deutsch Connector | |
| CERTIFICATION | CE / R10 / CISPR 25-CLASS3 / IP68 / IP69K | |
40W LED TRACTOR WORK LIGHT Main Features:
- TIR lens provides the balanced beam covering 60° lighting coverage
- Flat and frameless cover for better anti-corrosion
- Strong bracket for easy installation
- Superior IP rating: IP68 & IP69K
- Highest EMC level: CISPR 25 CLASS 3
Technical Specification
| Input Voltage | 9-36V DC |
| Color Temp. | 5700K |
| Intensity | 1 lux @74m |
| Dimension | 3inch (85*108*58.3mm) |
| Optic system | TIR Lens |
| Life Span | 50,000+ hours |
| Other Spec. | Integrated ETM Technology (Electronic Thermal Management) |
Connector & Waterproof Performance
Application
Production & Quality Control

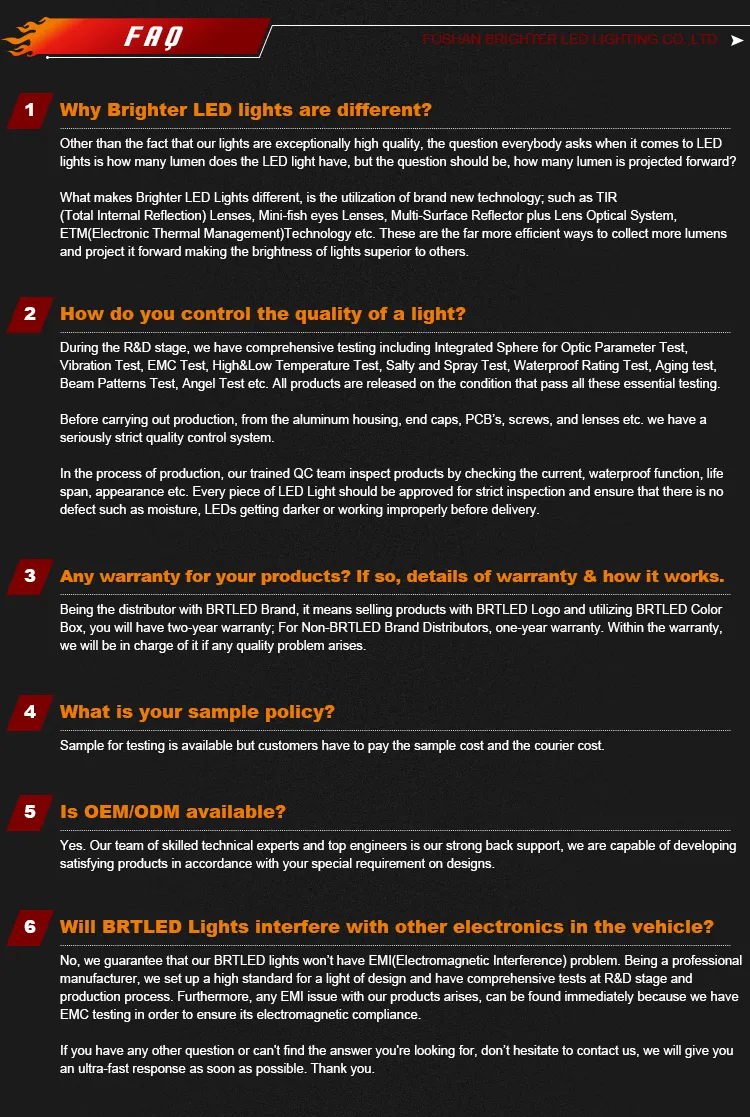

Frequently Asked Questions
Q1: What is the IP rating for this work light?
The light is rated IP68 and IP69K, ensuring complete protection against dust and high-pressure water jets, making it ideal for heavy-duty environments.
Q2: Does it interfere with radio or electronic equipment?
No, it meets the highest EMC level CISPR 25 CLASS 3, which prevents electromagnetic interference with other electronic devices on your vehicle.
Q3: How does the Electronic Thermal Management (ETM) work?
Integrated ETM technology automatically monitors and regulates the temperature of the LEDs to prevent overheating and extend the lifespan of the light to over 50,000 hours.
Q4: What kind of connector does it use?
This model features an in-built Deutsch (DT2) connector for a secure, waterproof, and easy plug-and-play installation.
Q5: What is the beam angle of the light?
It features a 60° Flood Beam, provided by a specialized TIR lens for a balanced and wide lighting coverage.
Q6: What voltage range is supported?
The light supports a wide input voltage range of DC 9-36V, making it compatible with various cars, trucks, tractors, and heavy machinery.
