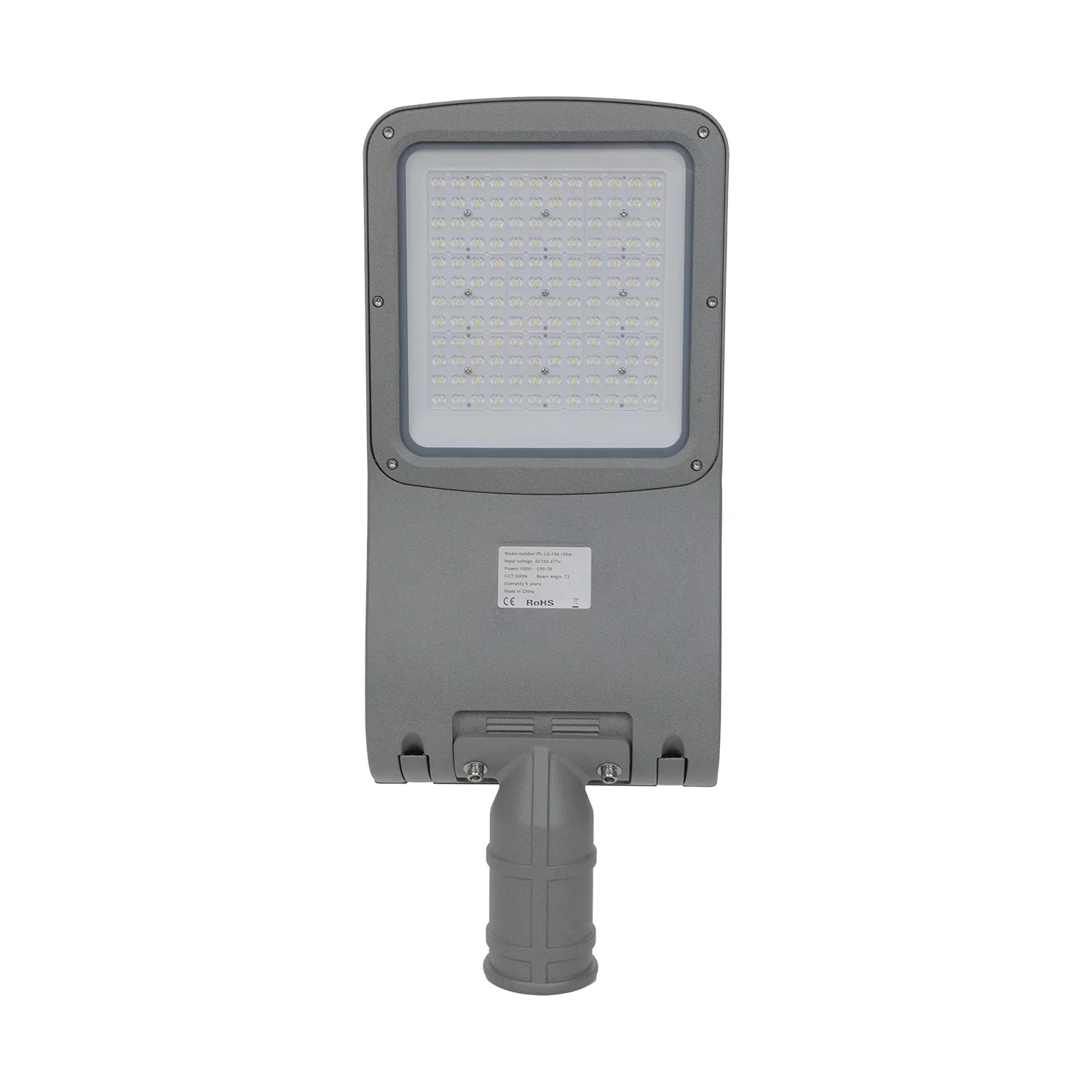

Luminaria Road LED Garden Street Lamp LED Lights off Road Streetlight All in One LED Street Light
Product Description
Basic Specifications
Model NO.
PL-LD-194
Lamp Body Material
Aluminum
Application
Square, Highway, Garden
IP Rating
IP66
Input Voltage
AC90-305V
LED Chips Brand
Lumileds 5050SMD
Luminous Flux
150lm/w ±5%
Working Life
100,000 hours
Product Description

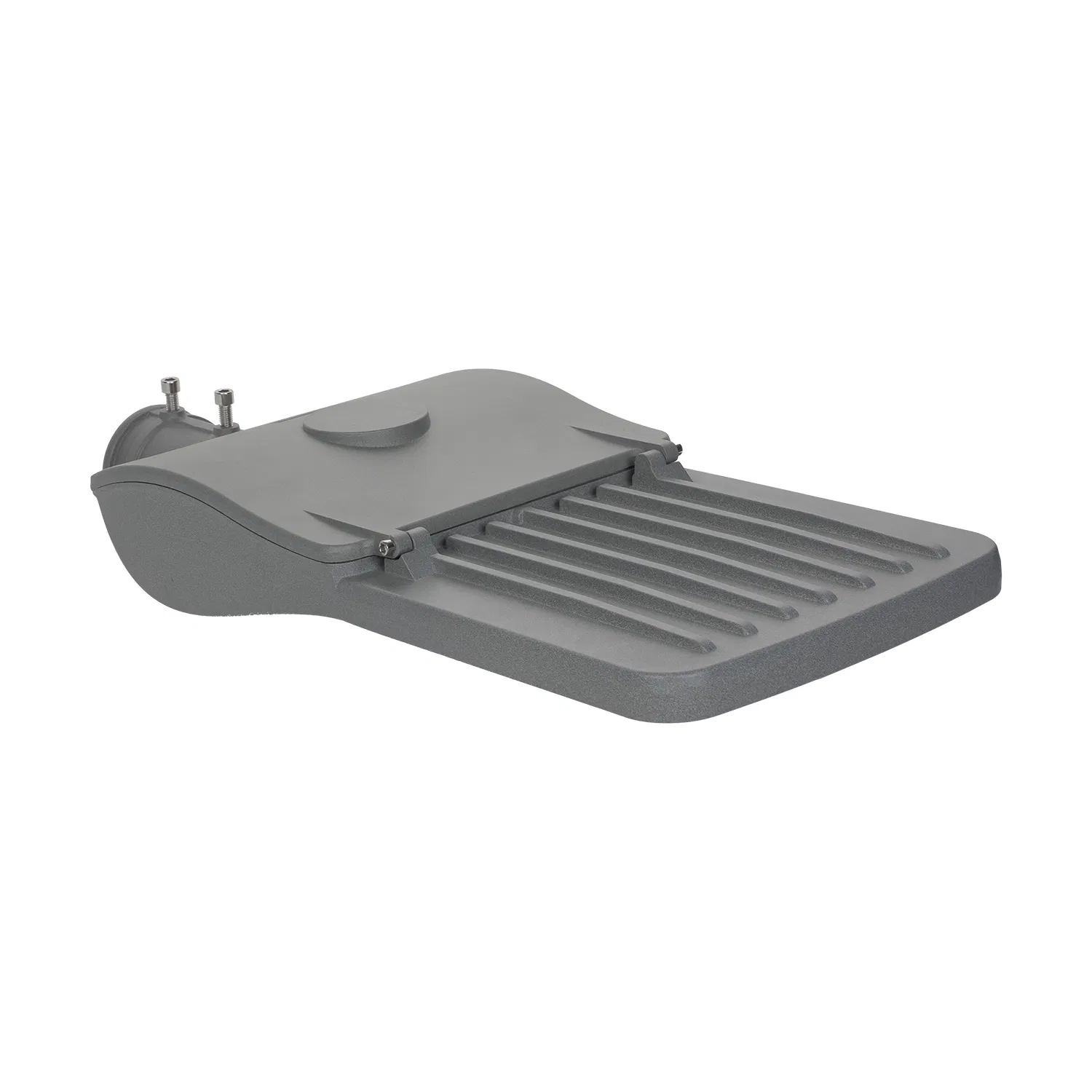

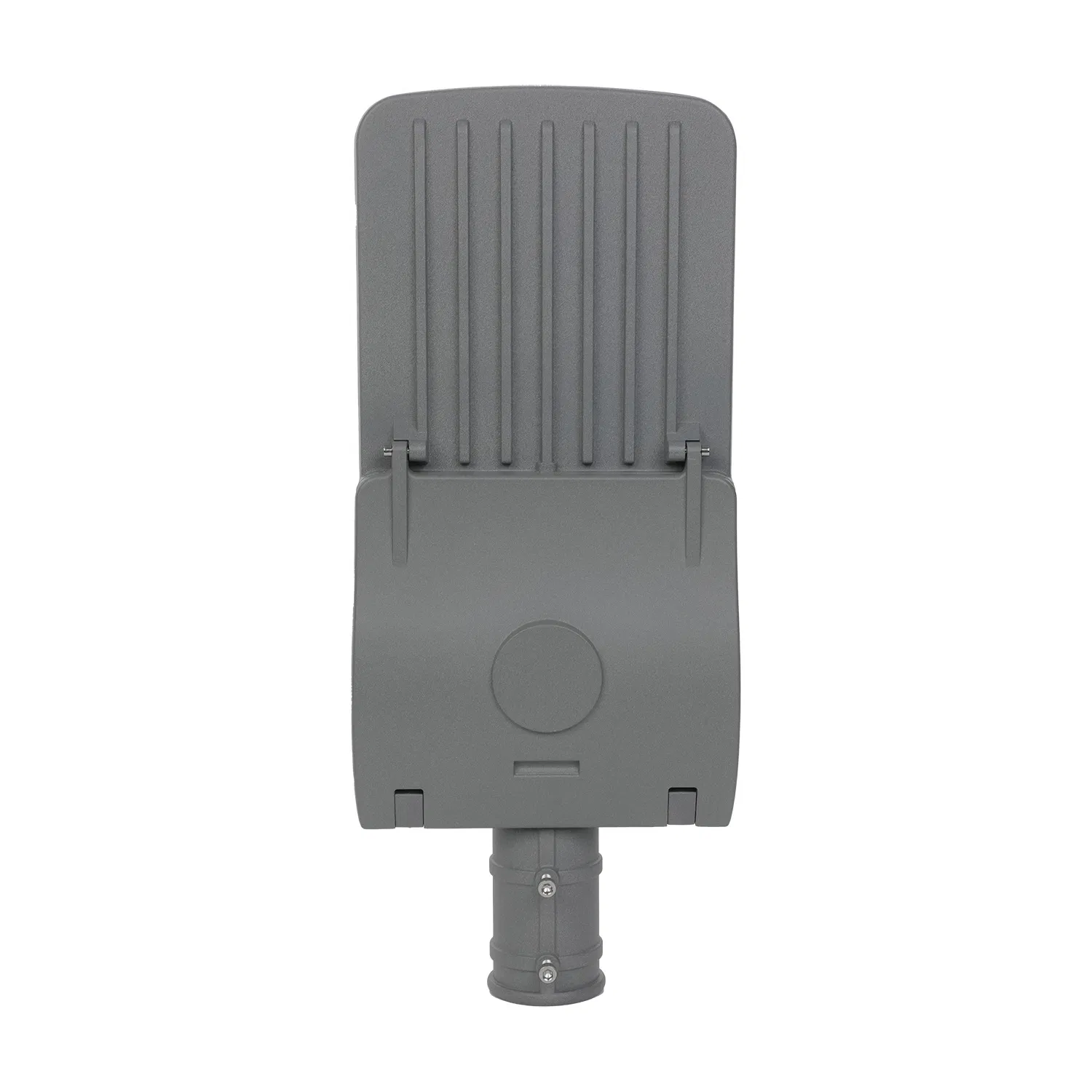

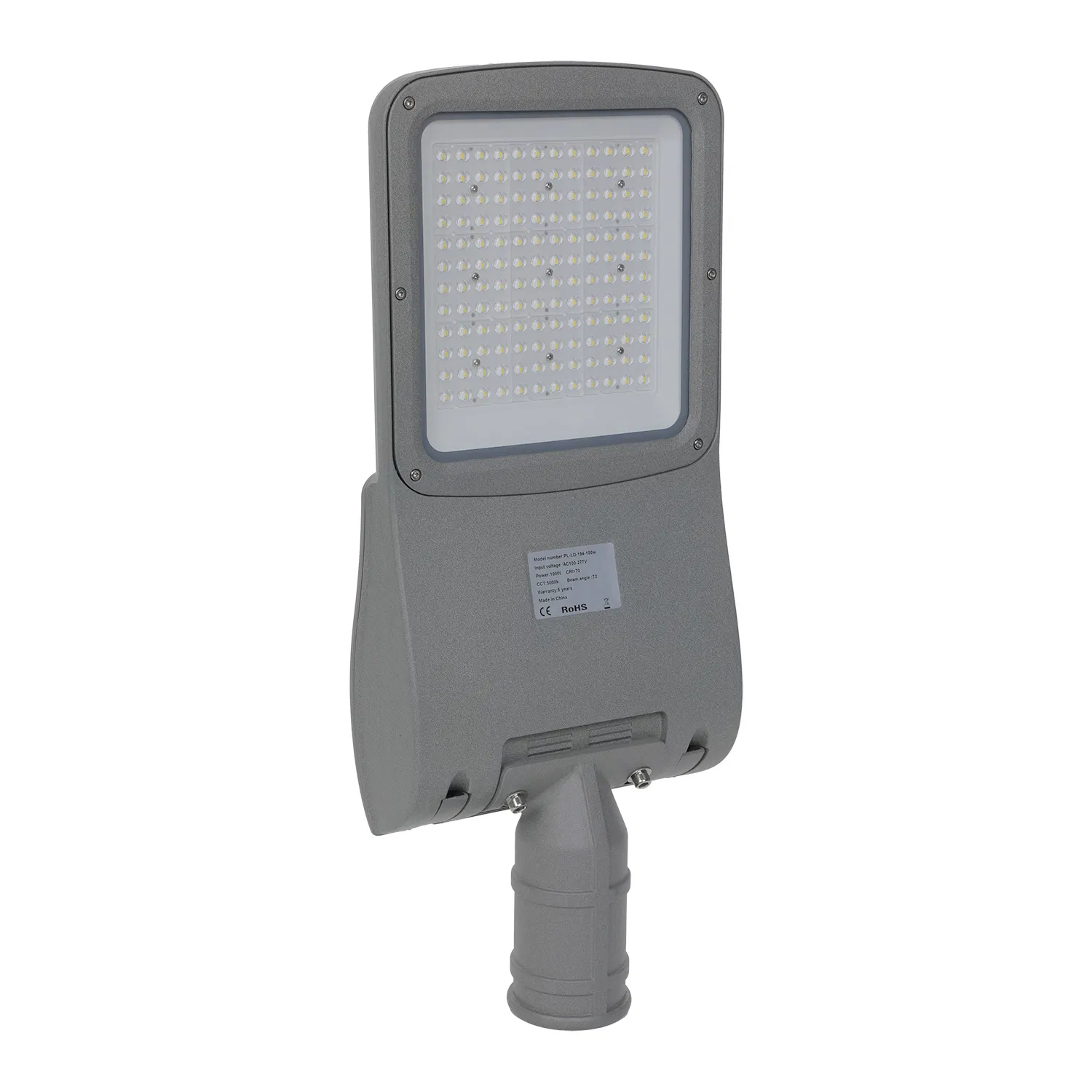

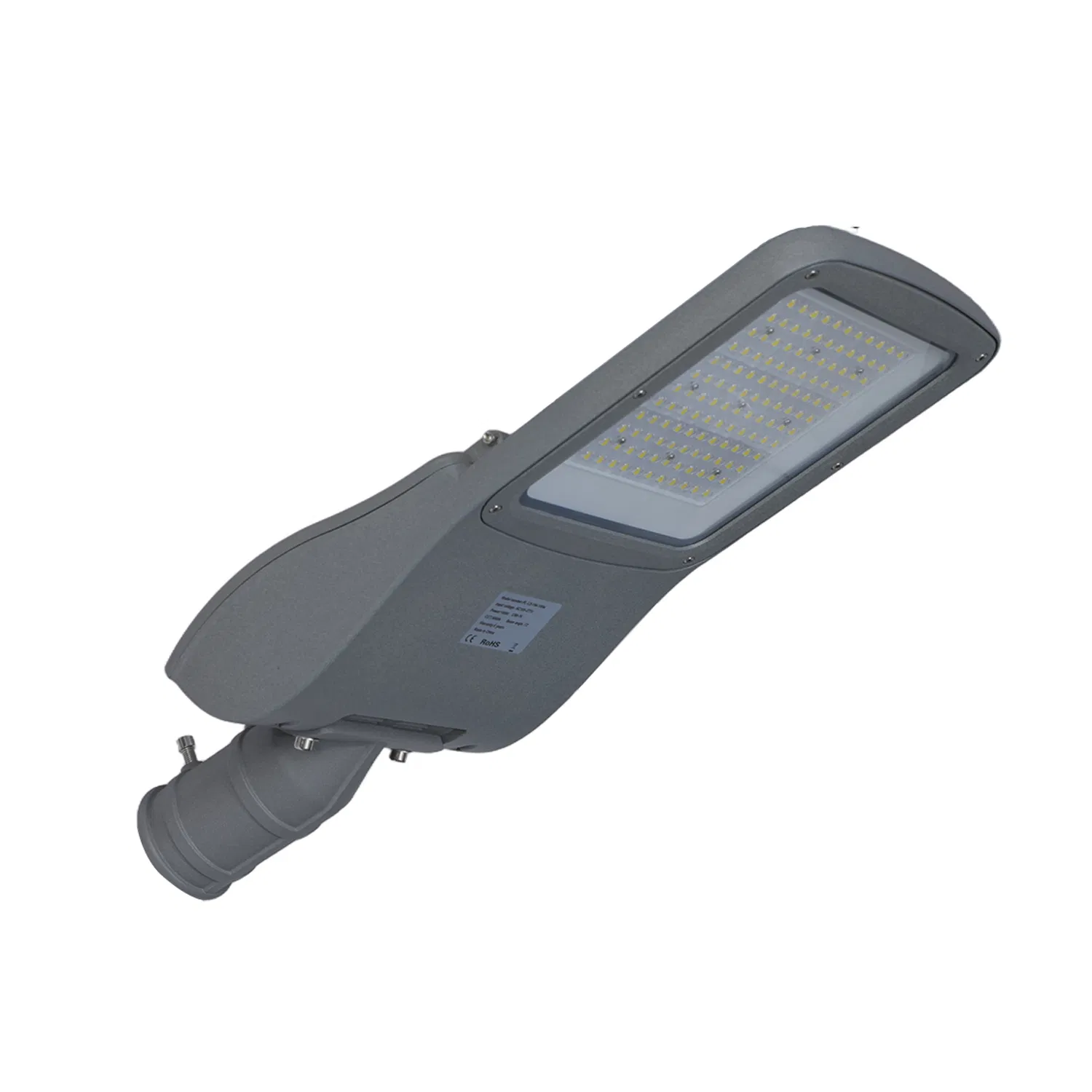

Luminaria Road LED Garden Street Lamp
Available in 50W, 100W, 150W, 200W, 240W, 320W. All-in-one integrated IP65/IP66 SMD LED outdoor street lighting solutions. Approved with CE & ROHS for highway and solar street lamp applications.
Key Features
- Adopting high-power 5050SMD as light source for energy saving.
- 5mm toughened transparent glass/lens with 92% light transmittance.
- Aluminum alloy radiator with high thermal coefficient and corrosion resistance.
- Constant current supply for high stability and security.
- Energy savings up to 80% compared to traditional lighting.
- IP66 protection level for harsh outdoor environments.
Technical Datasheet
| Power Range | 30W - 60W | 70W - 120W | 150W - 180W | 200W - 240W |

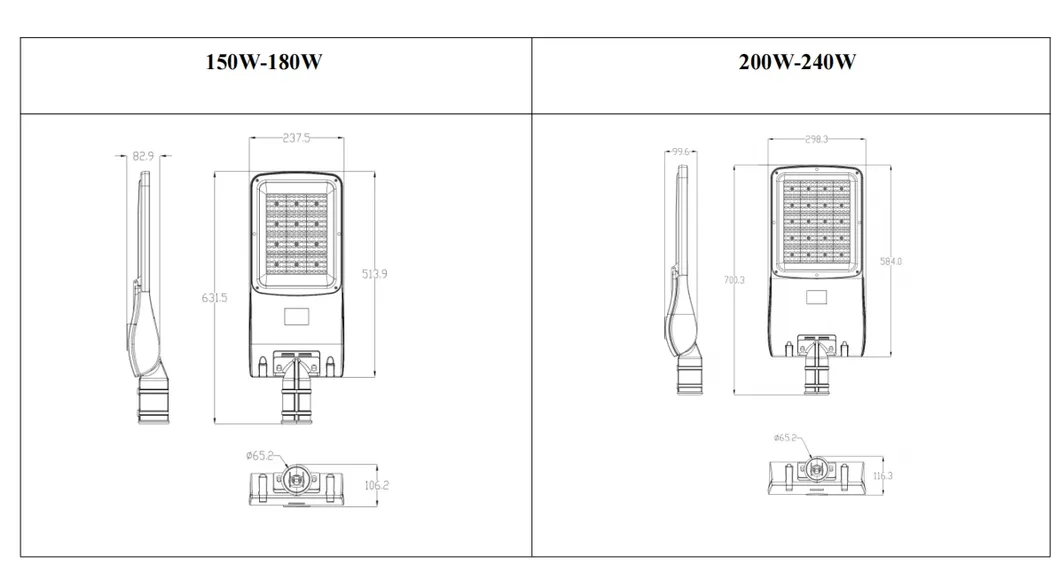

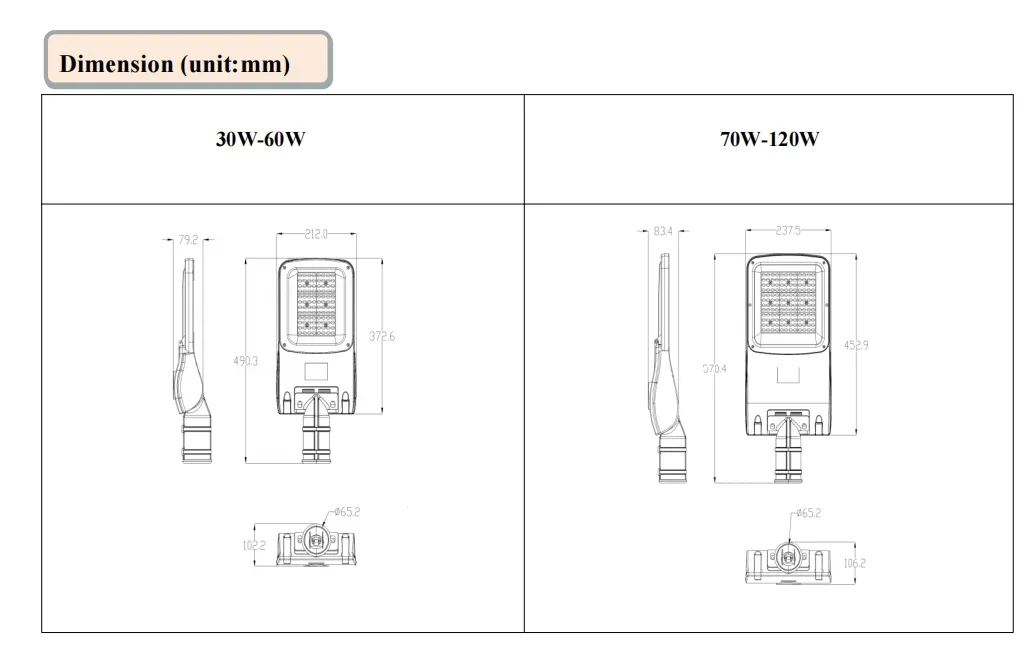

| Dimensions | 490.3*175*102.2mm | 570.4*237.5*106.2mm | 631.5*237.5*106.2mm | 700.3*298.3*116.3mm |
| LED Source | 96PCS SMD3030 | 144PCS SMD3030 | 192PCS SMD3030 | 320PCS SMD3030 |
| CCT | 2700K - 6500K | |||
| Beam Angle | T2M / T3M (75*150°) | |||

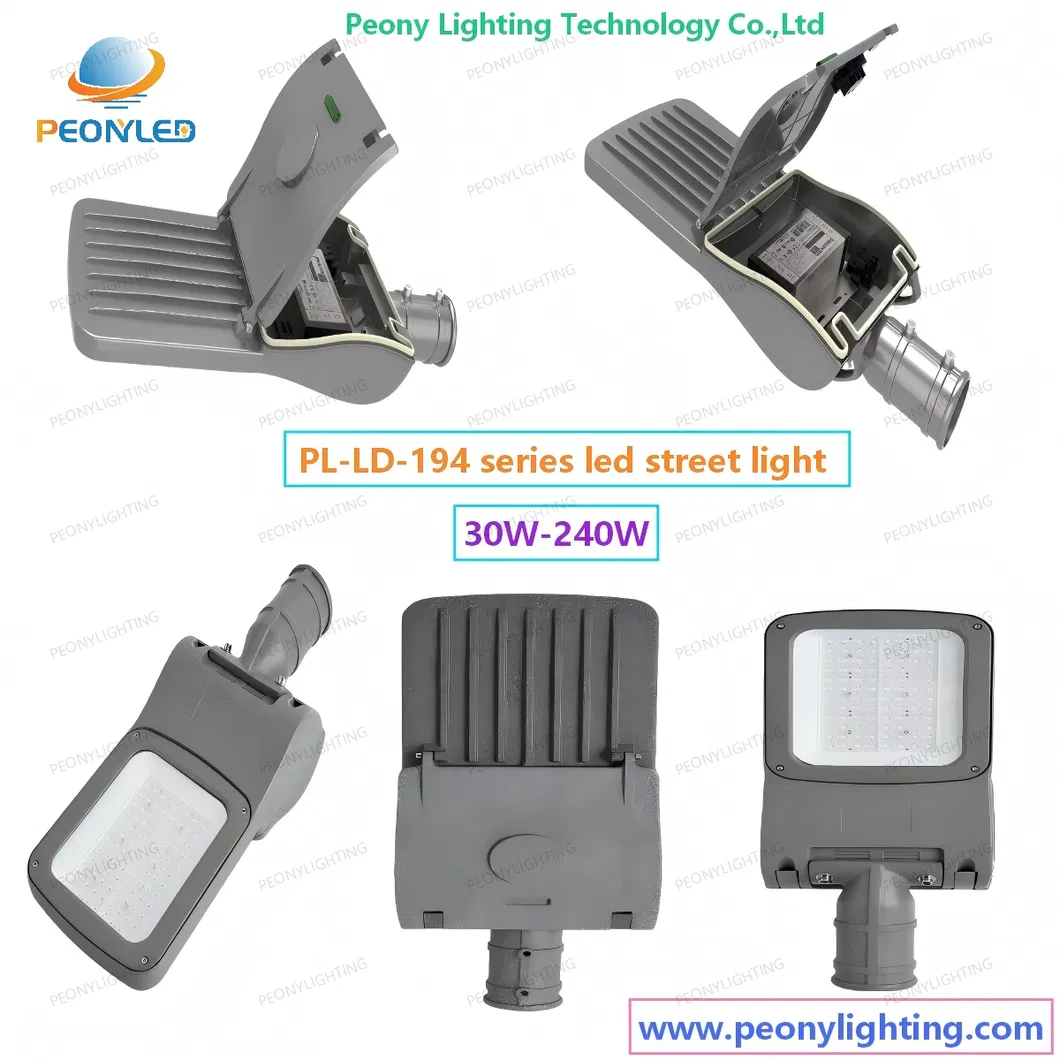

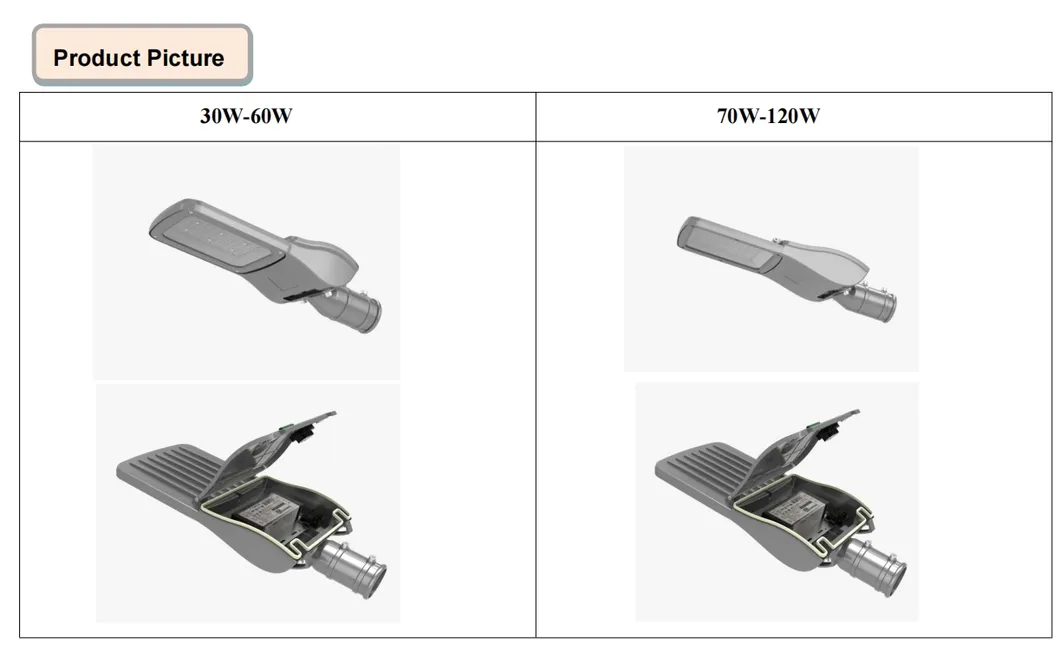

Product Gallery

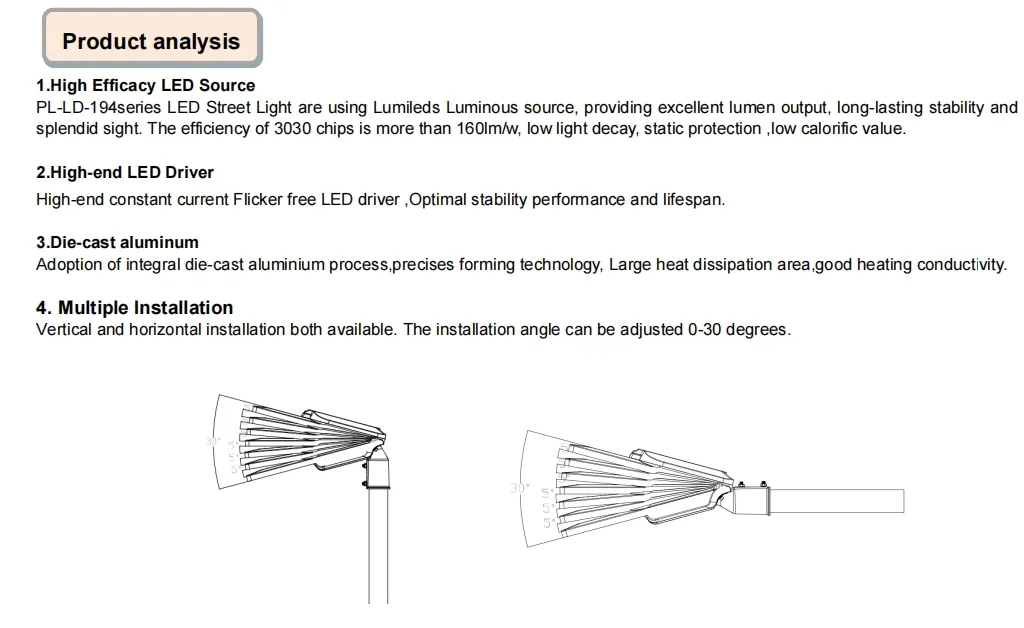

Installation & Structure
Frequently Asked Questions
Do LED lights really have a 50,000-hour lifespan?
While 50,000 hours is the theoretical lab lifespan, actual performance depends on the working environment. With high-quality materials, achieving this lifespan is possible, though standard operations often range around 30,000+ hours.
Why do different suppliers have different brightness for the same power?
Brightness varies based on the quality and version of the LED chips used. Even with the same chip, different brightness grades exist. It is important to distinguish between the lumen output of the LEDs themselves and the total fixture output.
What is Color Temperature (CCT)?
CCT is measured in Kelvin (K). Lower temperatures (Warm white) are used for relaxation in public areas, while higher temperatures (Cool white) enhance concentration in industrial or office settings.
What is Color Rendering Index (CRI)?
CRI measures how accurately a light source reveals the true colors of objects. A higher CRI indicates better color representation but typically comes at a higher manufacturing cost.
What is PF and Efficiency?
Power Factor (PF) and efficiency indicate the electrical performance of the LED driver. Higher values mean better energy conversion and electrical stability.

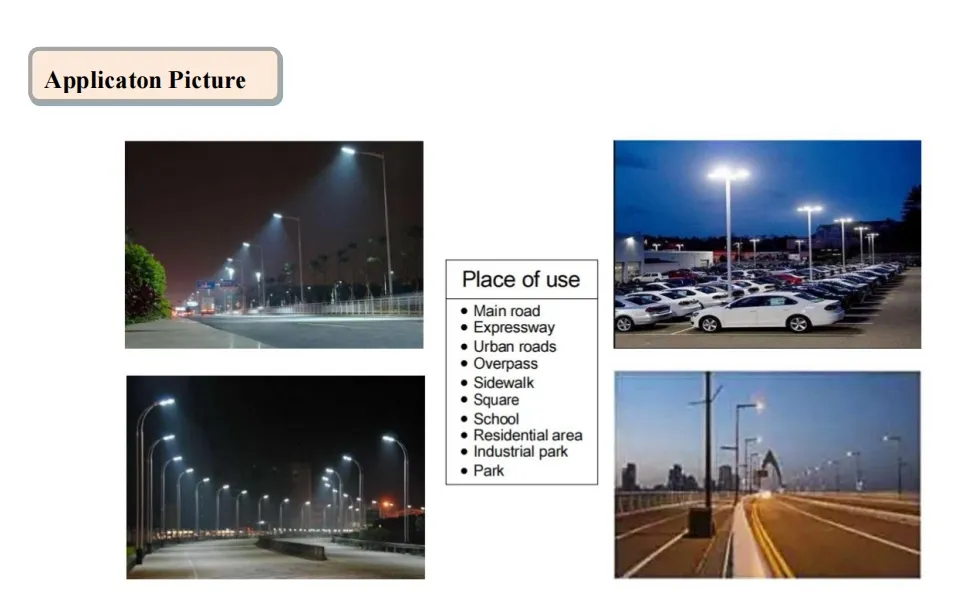

Where can these street lights be installed?
They are ideal for arterial roads, highways, elevated roads, bridges, sidewalks, squares, schools, residential areas, and industrial parks.
