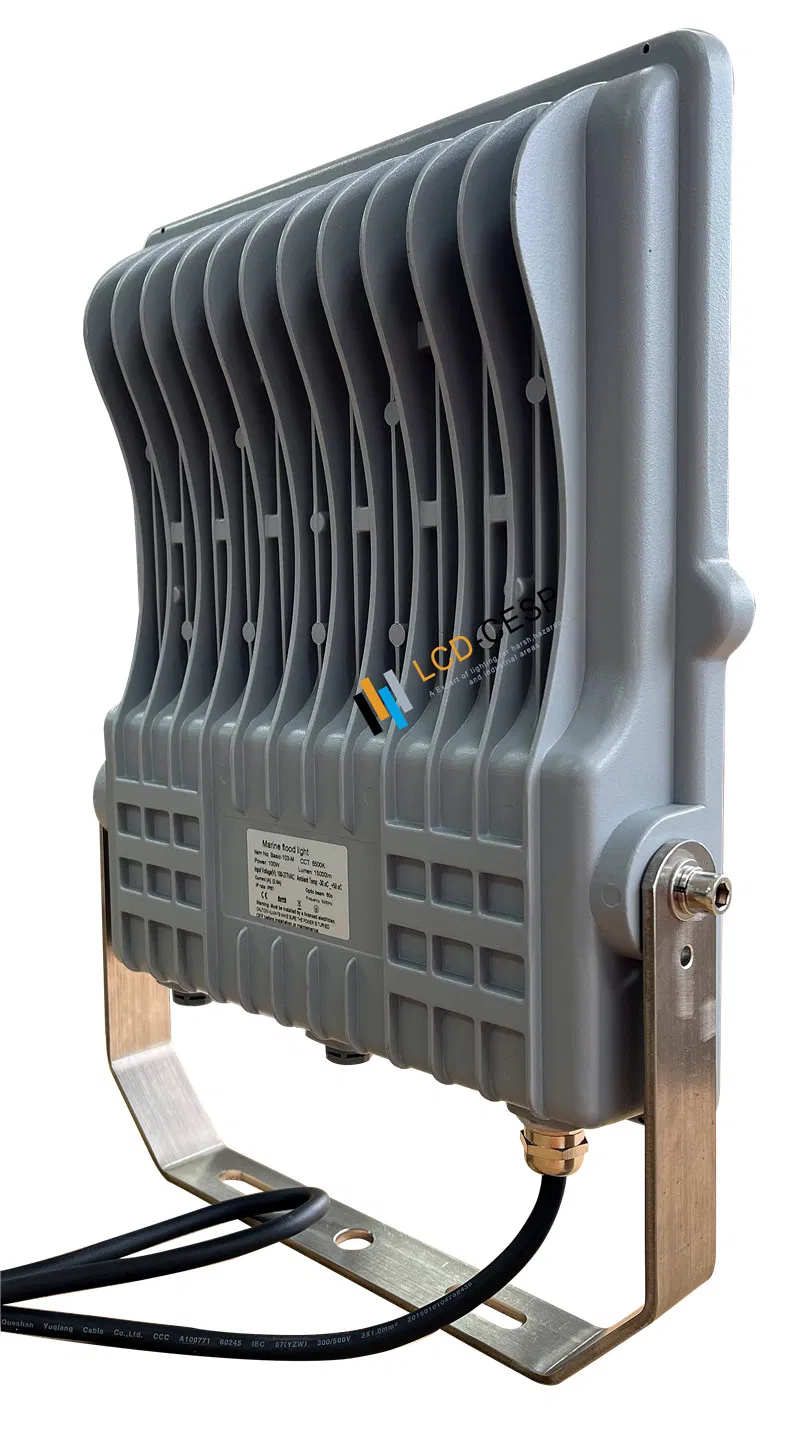

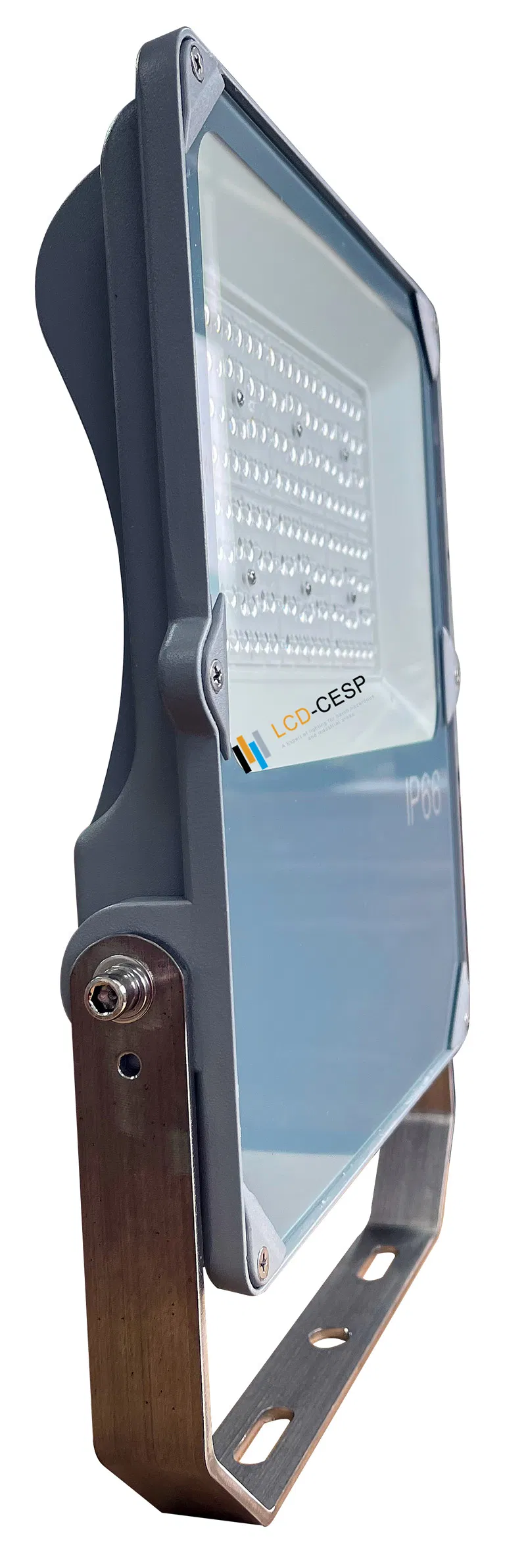

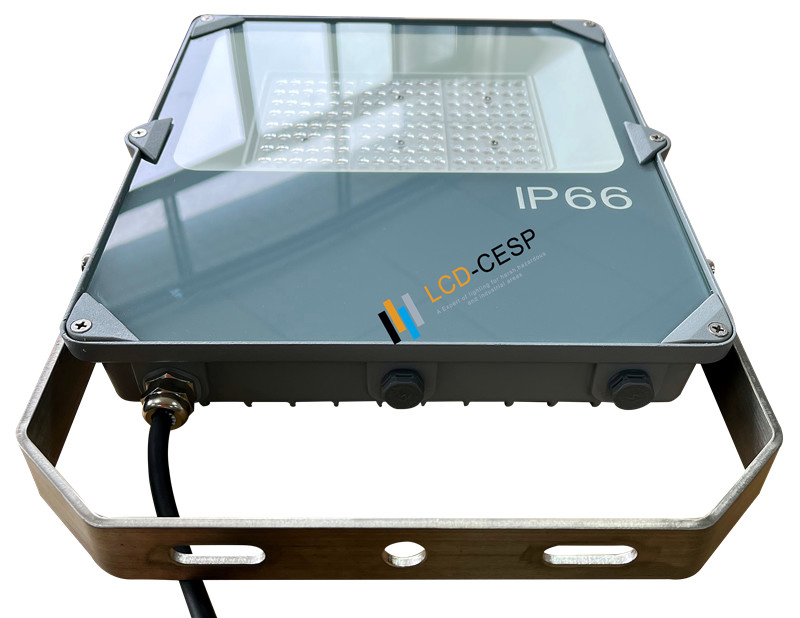

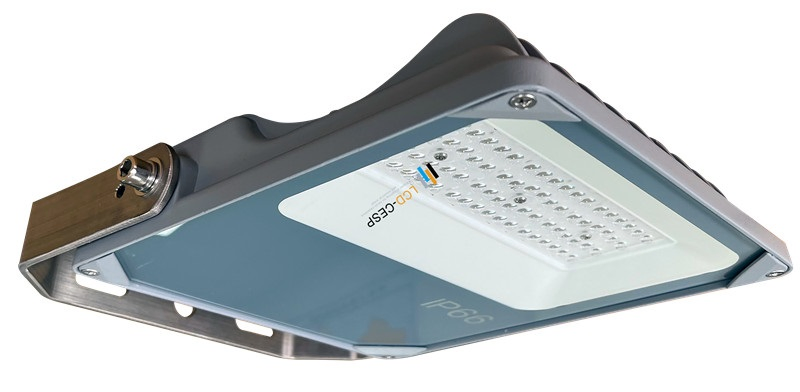

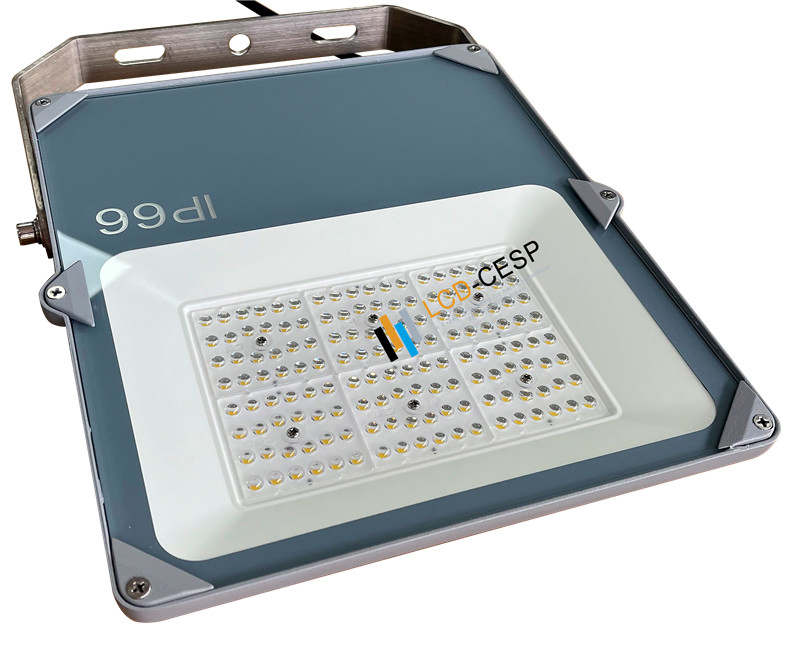

LED High Mast Light High Lumen Flood Lights Waterproof IP66 Floodlight 150 Watt, 100 PLC Control System Dimmer Total 2175000lm Group Outdoor Floodlights
Product Description
📋
Basic Specifications
Model NO.:LCD-FE-153-LN90-PLC
Power:≥100W
Distance:12-18m
IP Rating:IP66
Operating Voltage:85-265V
LED Chips:Osram
Certification:CE, RoHS, SAA, TUV, ETL
Capacity:50,000 PCS / Year
💡
Product Description

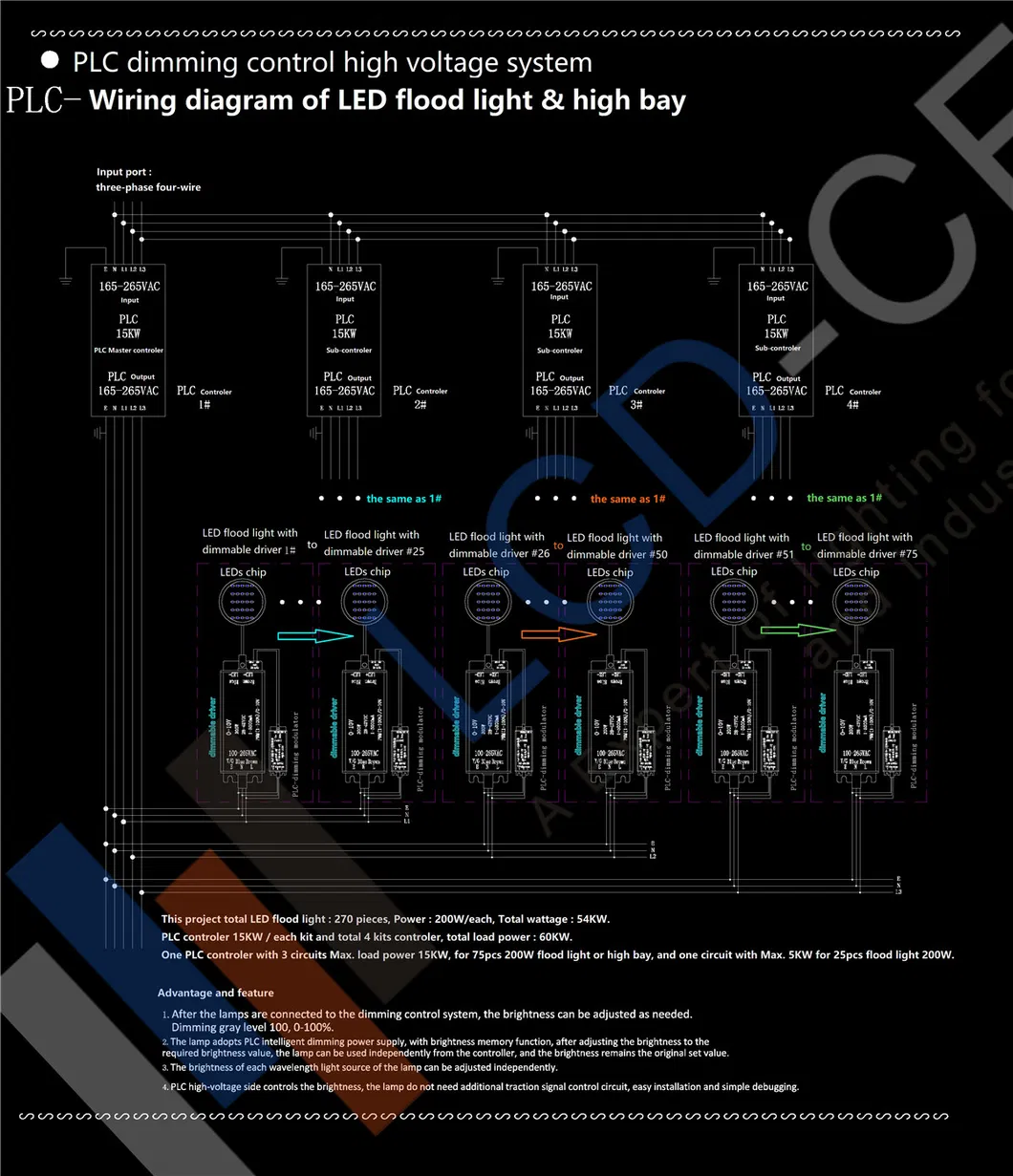

PLC dimming control system high voltage replacement for DALI system or DMX512 system with LED flood light led lighting solution for more competitive low prices and more durable and overstable and easier installation.

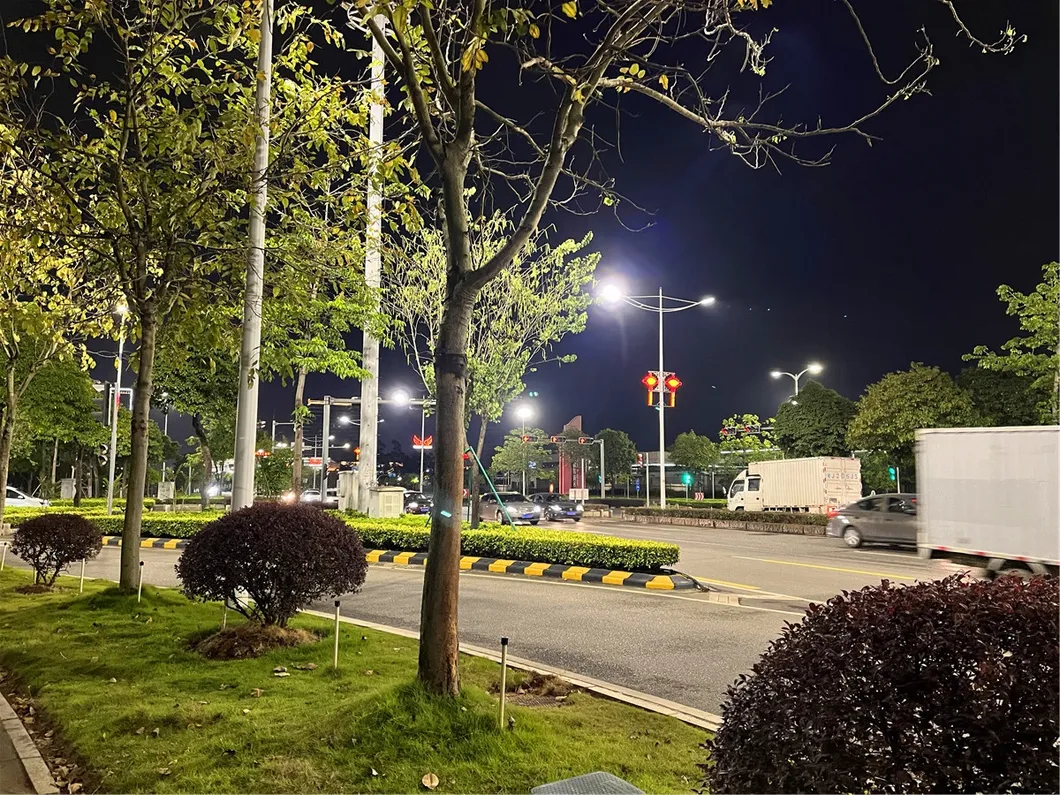

The LCD-FE® special light series is ideally used in challenging environments such as building lighting, roadway and car parking construction, loading area, etc. Designed to withstand even the most extreme industrial environments.
✨

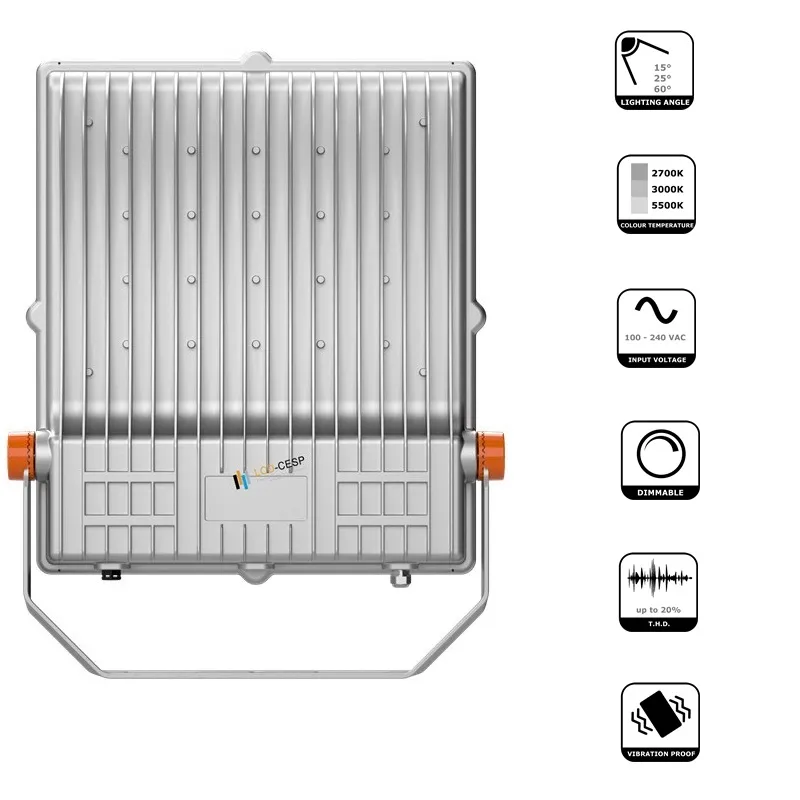

Features & Benefits
| Category | Details |
|---|---|
| CERTIFICATIONS | CE, RoHs, SAA, C-tick, TUV, ETL |
| HOUSING | Aluminum alloy ADC12 |
| LENS | 4mm thick tempered glass, +95% transmission, shock resistant |
| PERFORMANCE | 10400 to 20800 lumens, 130-155 lm/w, 60,000+ hours life |

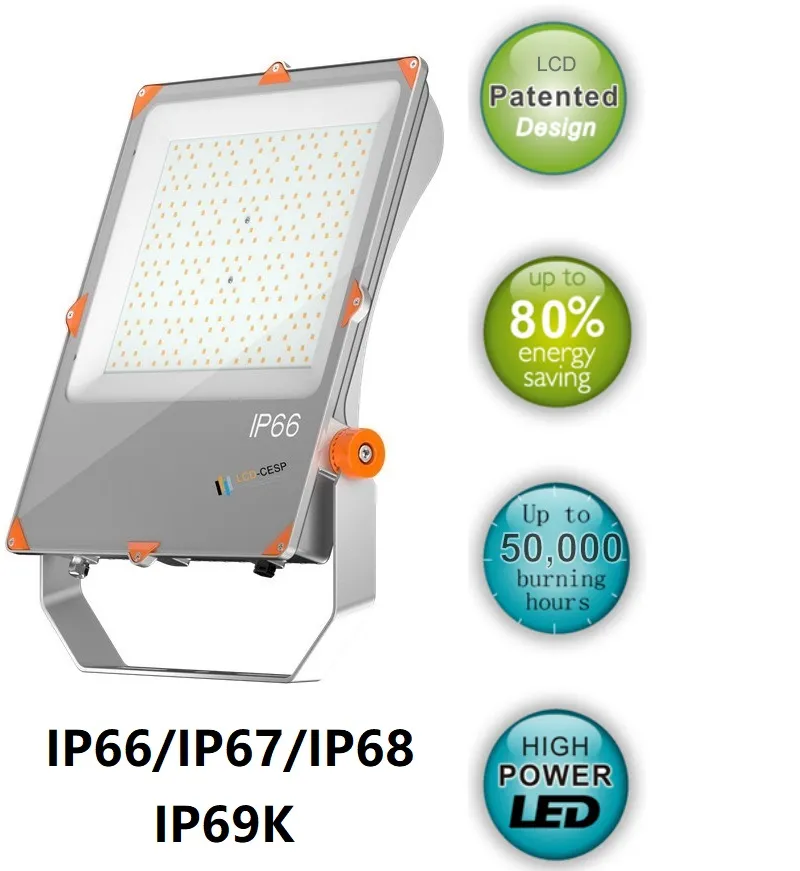

| IP RATING | IP65/IP66 Dust tight and waterproof for heavy industry |
| TEMPERATURE | -30°C to 55°C (-30°F to 131°F) |
| DIMMING | 1-10V standard or PWM on request |
⚙️
Technical Parameters
| Model No | LCD-FE-50 | LCD-FE-80 | LCD-FE-100 | LCD-FE-150 | LCD-FE-200 |
|---|---|---|---|---|---|
| Wattage | 50W | 80W | 100W | 150W | 200W |
| LED Source | LUXEON / Cree / OSRAM SMD 3030/5050 | ||||
| Luminous Efficiency | 130lm - 155lm/w | ||||
| Input Voltage | 90-305V, 50/60Hz | ||||
| N.W. (KG) | 10.6 KG | ||||
❓
Frequently Asked Questions
What is the advantage of the PLC dimming control system?
PLC (Power Line Communication) dimming provides a more stable, durable, and easier-to-install alternative to DALI or DMX512 systems, especially in high-voltage industrial environments.
Is this floodlight suitable for coastal or corrosive environments?
Yes, with an IP66 rating and robust aluminum alloy housing, it is ideal for heavy industry, mining, refineries, and coastal marine facilities.
What are the available beam angle options?
We offer symmetrical optics at 120° (with 30°, 60°, 90° options) and asymmetrical optics like TYPE I/II/III/V/VI to suit different project needs.
What is the expected lifespan of these LED lights?
The units are L70 rated for over 60,000 hours of operation, ensuring long-term sustainability and reduced maintenance costs.
What certifications do these products hold?
The product series is fully certified with CE, RoHS, SAA, C-tick, TUV, and ETL, meeting international safety and quality standards.
What are the mounting options for the LCD-FE series?
Standard mounting includes an adjustable surface/wall bracket, with options for ceiling, grounding, or high mast installations.
