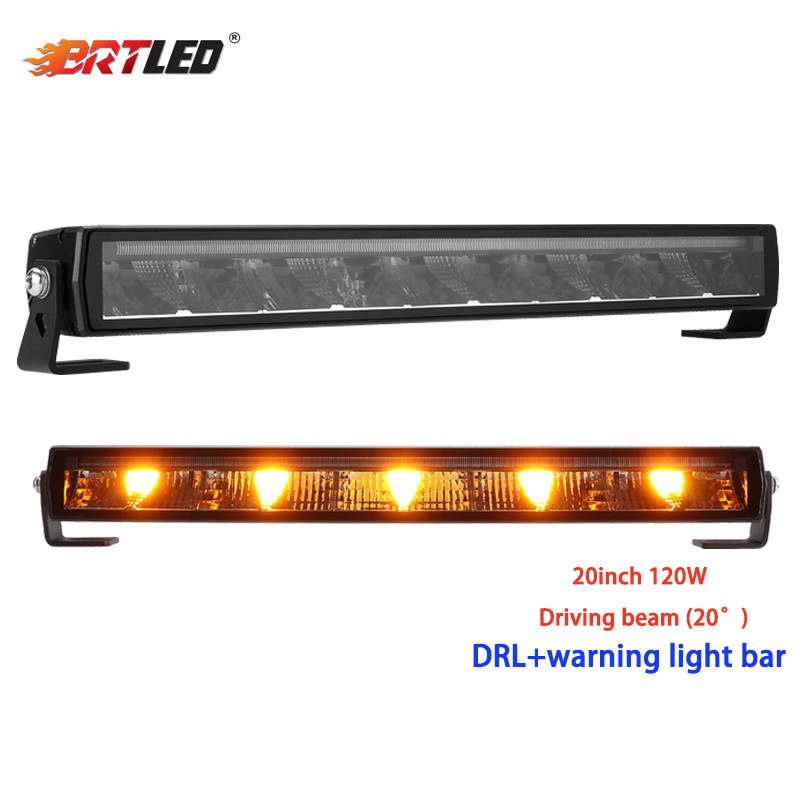

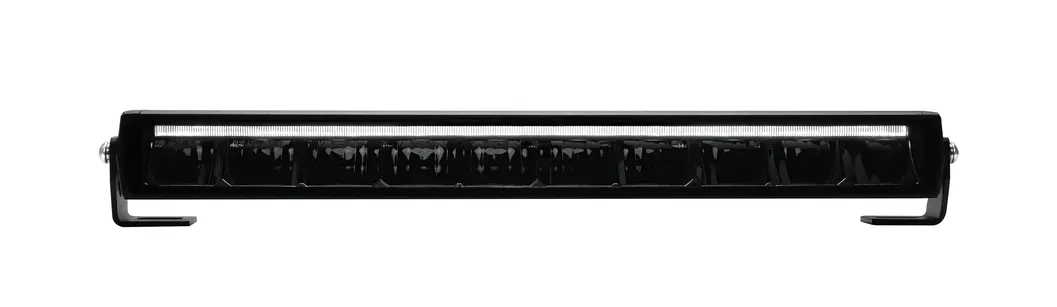

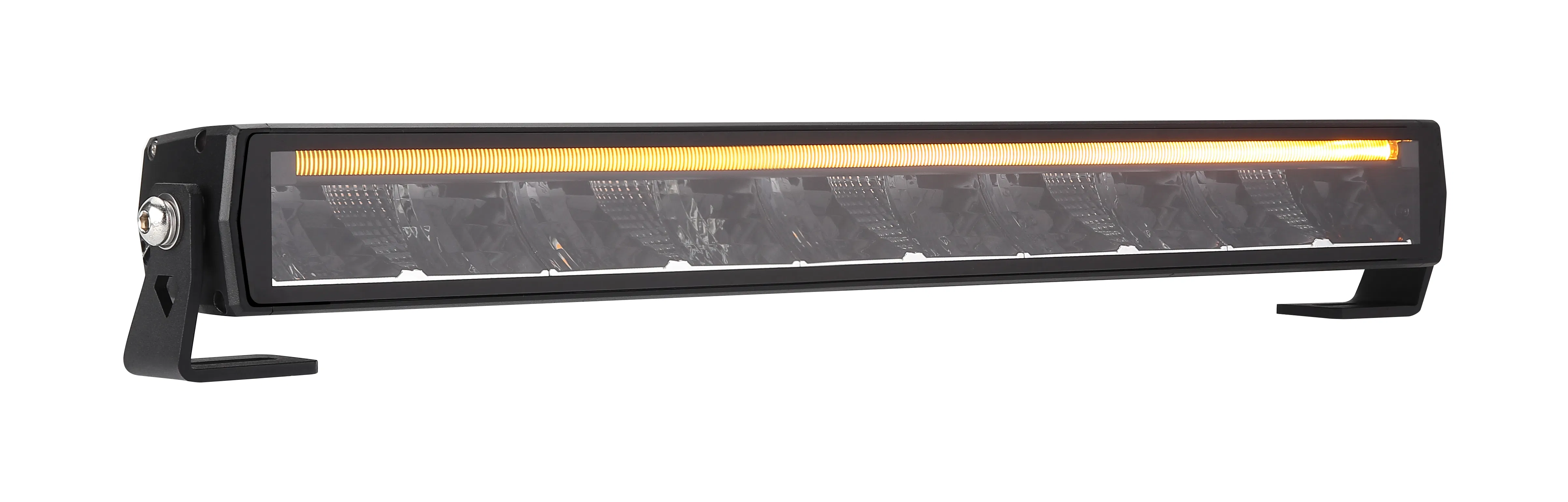

Work LED Bar Position Light 20inch Slim off Road for 4X4 Car Trucks Lighting Thin DRL LED Light Bar
Product Description
Basic Information
Model NO.
BLWL1012S
Certification
RoHS, CE, ISO, ECE R10, R112, R65, R7
Voltage
DC9-36V
Light Color
White
Application
Bar, Lighting, Car, Universal Vehicle
Size
20inch--514*54*61.5mm
Watts
120W
Luminous Flux
11000lm
LED
10PCS*12W LED
Life Time
50,000+ Hours
Product Description
| TYPE | BLWL1012S | BL1015S4 | BL1015S3 |
| SIZE | 20inch | 20inch | 20inch |
| Watts | 120W | 150W | 150W |
| Lumens | 11000LM | 14000LM | 14000LM |

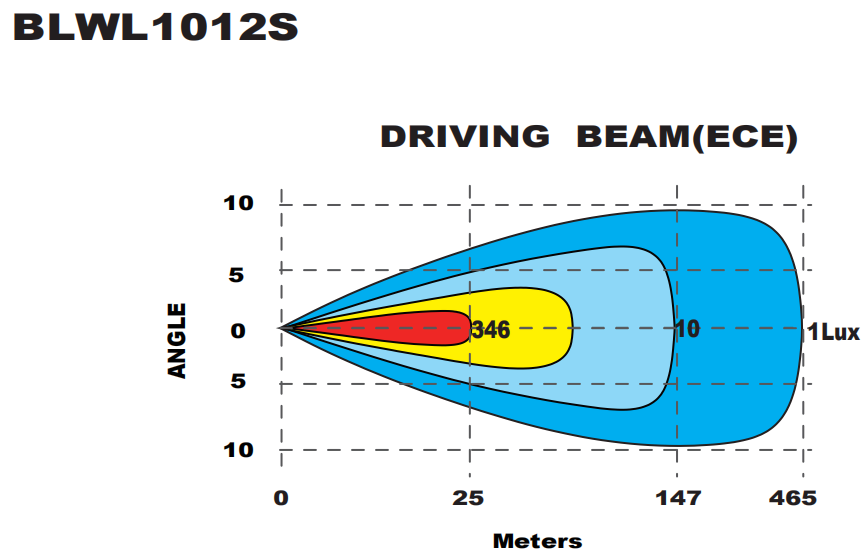

| Beam | Driving beam (20°) | Driving beam (35°) | Driving beam (35°) |
| DRL light | Yellow/white + warning | Yellow/white position light | |
Key Features

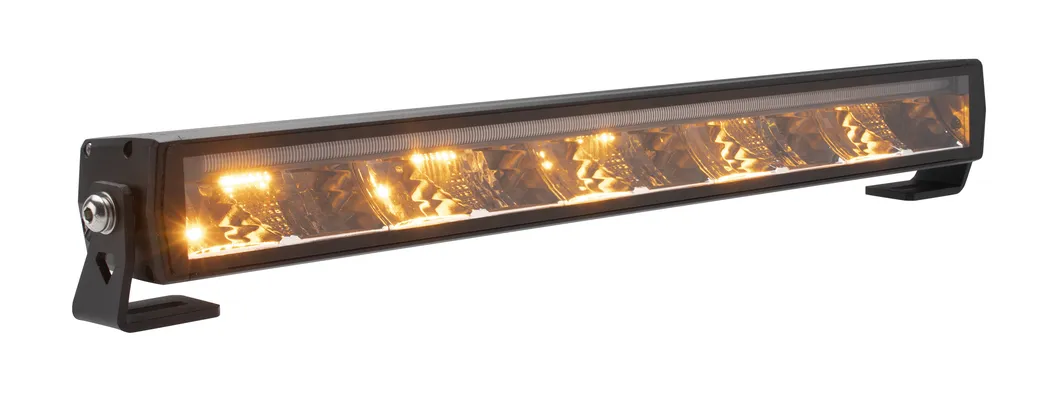

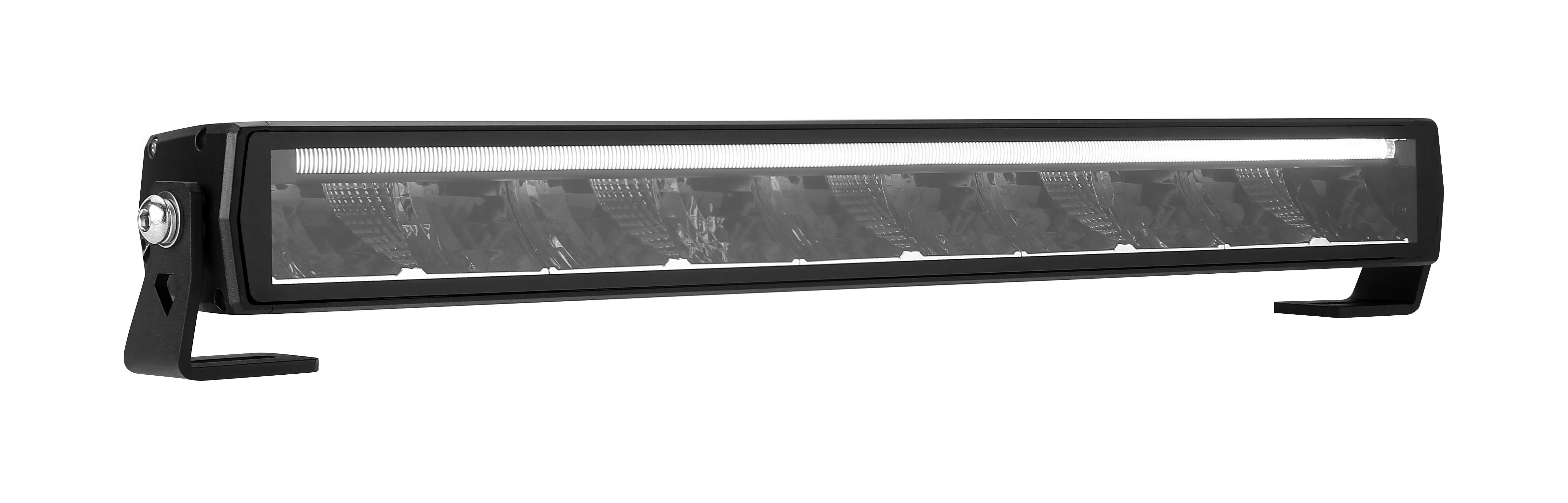

Ultra Slim Design: Perfect for stealthy installations.

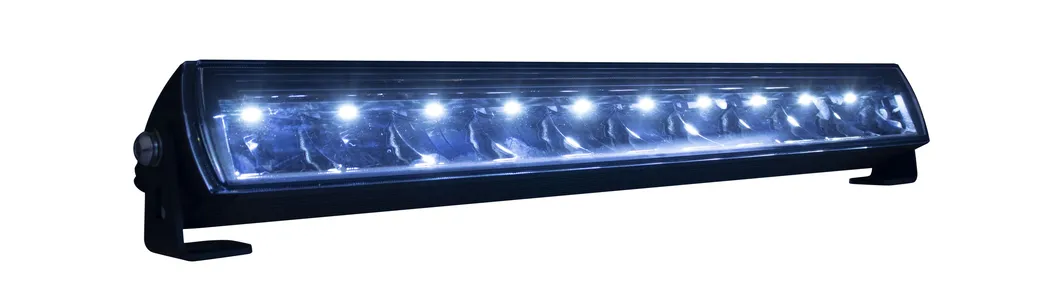

Driving Beam (20°): High-intensity focused lighting.

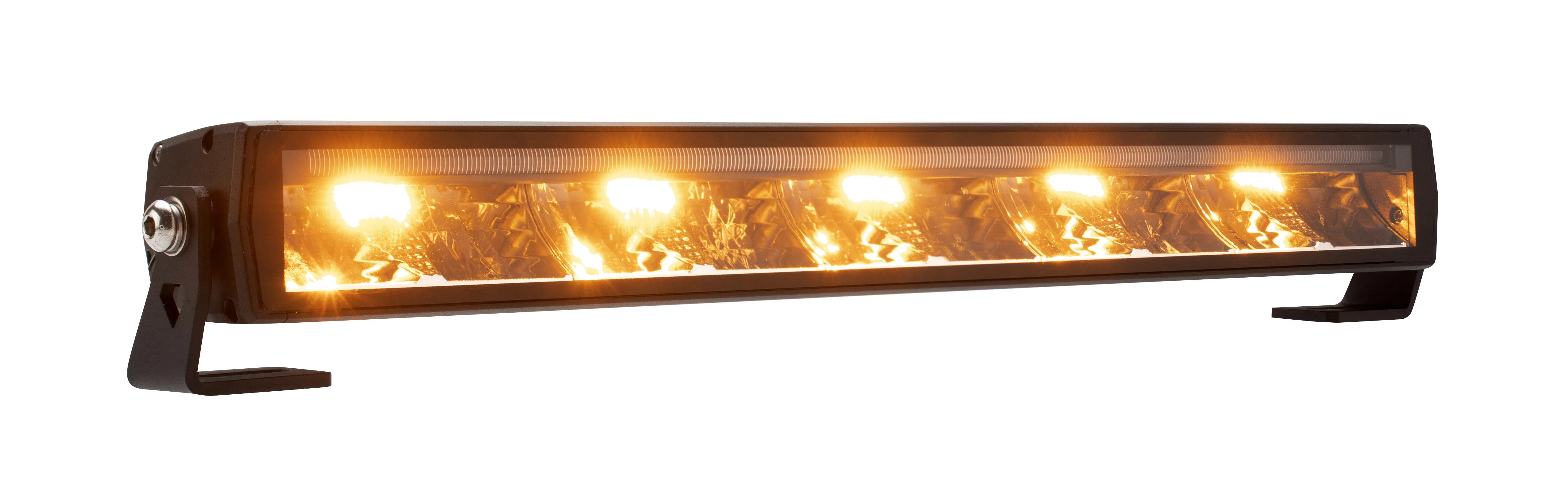

Dual Color DRL: Includes warning light functions.
ETM Technology: Electronic Thermal Management for longevity.
IP68 & IP69K: Superior waterproof and dustproof protection.
Housing: 6063 extruded Aluminum Heat-Sink.
Application Display

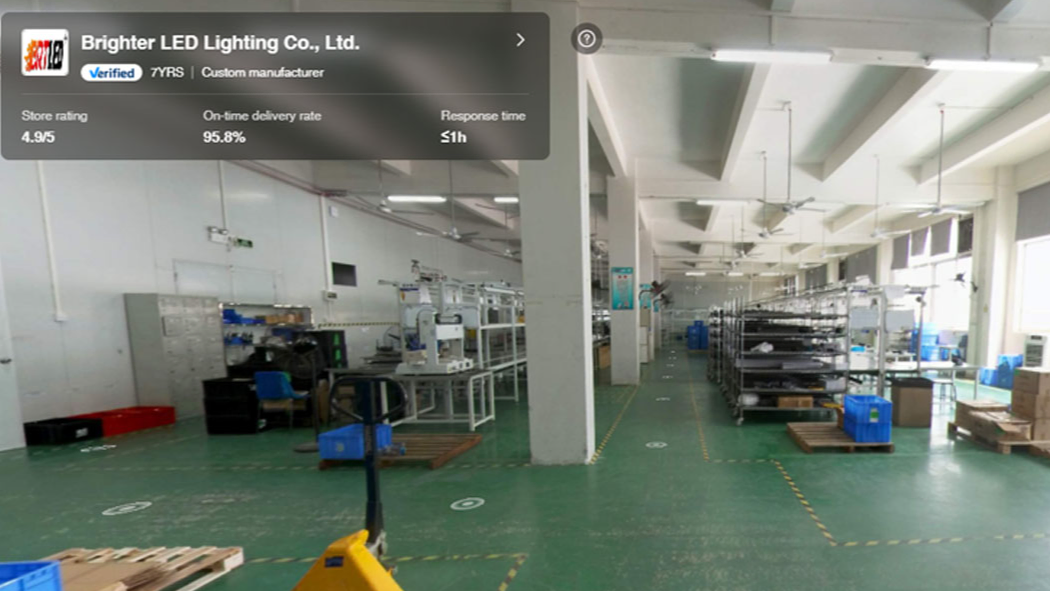

Production & Quality
Frequently Asked Questions
Q1: What is the waterproof rating of this LED bar?
A: This product features an IP68 and IP69K waterproof rating, ensuring it can withstand high-pressure washing and submersion.
Q2: Does it support different voltage systems?
A: Yes, it operates on a wide DC9-36V range, making it suitable for both cars and heavy-duty trucks.
Q3: What is ETM Technology?
A: Integrated Electronic Thermal Management (ETM) automatically adjusts the light's output to protect the LEDs from overheating, extending the lifespan to over 50,000 hours.

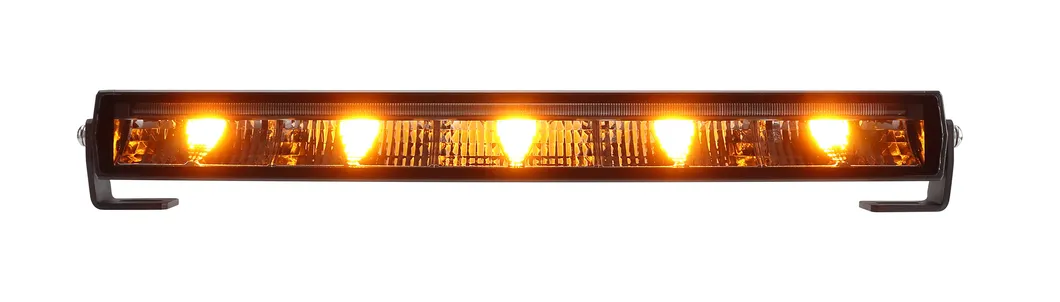

Q4: Can I switch between amber and white DRL?
A: Yes, this model includes dual-color (yellow/white) position lights along with a warning light function.
Q5: Is the light bar resistant to corrosion?
A: Absolutely. It is designed with anti-rust, corrosion, and freezing resistance for extreme weather conditions.
Q6: What mounting options are available?
A: It features an ultra-slim design that allows for versatile mounting in tight spaces on 4x4 vehicles, trucks, and bars.
