Experts LED Lighting
Factory Price 30*1W DC48V/24V Smart Dimmable 3000K 4000K 5000K 6000K Magnetic Foldable Grille Lamp Magnet Grille Light for Offices Showrooms Specialty Stores
Product Description
Basic Information
| Model NO. | MF-SML3030 | Emitting Color | Changeable |
| IP Rating | IP20 | Certification | CE, FCC, RoHS, SAA |
| Input Voltage | DC48V/24V 250mA | LED Chips Brand | O-Sram LED SMD |
| Color Rendering Index | Ra>90 | Beam Angle | 24°/36°/45° |
| Luminous Flux | 3000K 2100lm / 4000K 2250lm | Dimming | No Dim / Dali Dim / 0-10V |
| Product Color | White/Black | Product Class | Class III |
| Warranty | 2 Years | Grid Module | 30 Grid |
Product Description

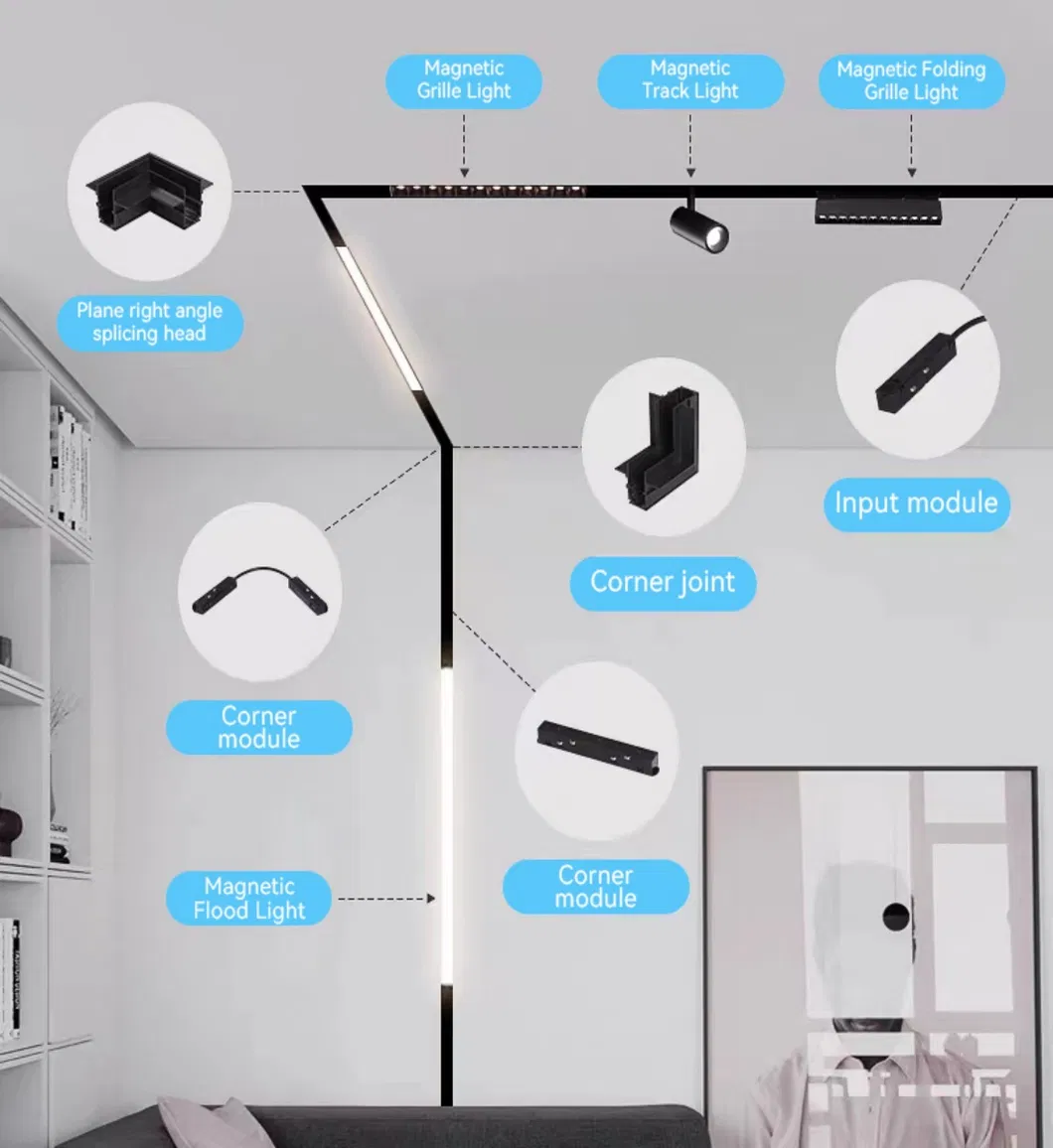

30*1W DC48V/24V Smart Dimmable Magnetic Foldable Grille Lamp. This track-type quick-swap light uses magnets for rapid absorption and versatility. It consists of a magnetic track and modular lamps, supporting surface mounted, recessed, and suspended installations.
Ideal for modern architectural designs, these fashionable wireless lamps meet various lighting requirements in offices, showrooms, specialty stores, hotels, villas, and clubs.
Detailed Features
- Anti-glare design, comfortable for eyes
- Exquisite structure, high-grade appearance
- Low voltage operation to ensure electric shock safety
- Magnet adsorption random lighting combination
- Double safety structure design ensures durability
- Selected top quality materials for long lifetime
Product Parameters
Application
Offices: Sleek design for modern professional workspaces.
Showrooms: Highlights product value with high-quality visual impact.
Specialty Stores: Matches premium positioning of luxury goods.
Hotels & Villas: Adds artistic touch and refined ambiance to upscale living and hospitality areas.
Installation Instructions
1. Install the track according to instructions.
2. Hold both sides of the lamp clasp and insert into the track.
3. Secure buckles at both sides to fasten the fitting.
4. Turn on power for testing.

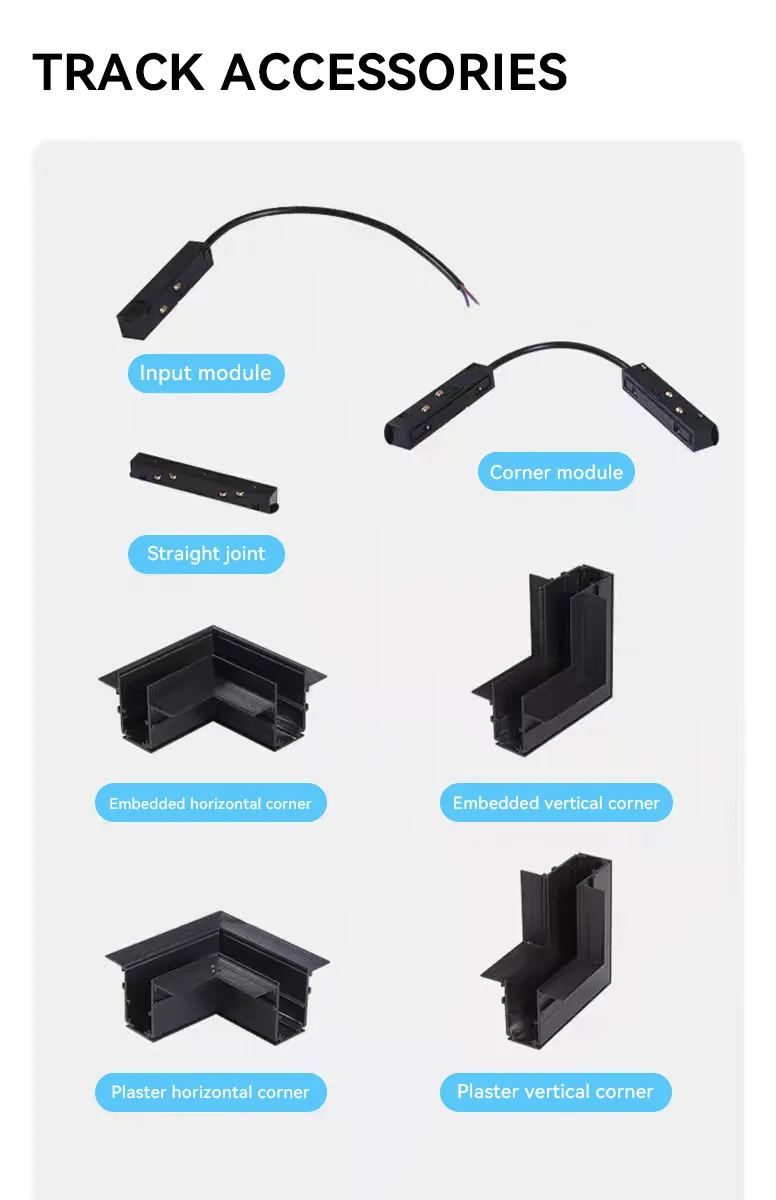

Step 1: Select Track Type
- Embedded Recessed Track
- Surface Mounted Track
- Plaster Recessed Track
- Suspending Track
Packaging Details
| Description | Inner Carton Box | Shipping Carton Box |
|---|---|---|
| Packaging Qty | 1 pcs | 24 pcs |
| Dimensions (LxWxH) | 720×50×30mm | 750×220×205mm |
| Volume | 0.47 dm³ | 28.56 dm³ |
| Gross Weight | 0.92 kg | 23.5 kg |
