Experts LED Lighting
1 / 5
Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Product Description
⚡ Basic Info.
Model NO.
BCJ51 IIB/C
Battery Type
Lead-acid
Warranty(Year)
3-Year
Emitting Color
White
Sign Orientation
out, Left, Right, Left and Right
Specifications
2*3W
Input Voltage(V)
AC/DC 24V, AC/DC 36V, AC 220V, AC 380V
Lighting Solutions
Dialux Evo Layout
Use
Inflammable and Explosive Places
Characteristic
Waterproof, Dustproof and Corrosion-Resistant
Luminous Efficiency
120 Lm/W
CRI (Ra)
80
Color Temperature
2700-6500K
Origin
Zhejiang, China
📋 Product Parameters
| Model | Explosion proof sign | Source | Power (W) | Charging (h) | Emergency (min) | Weight (kg) |
|---|---|---|---|---|---|---|
| BCJ51- | Ex db eb ib mb IIC T6 Gb Ex tb IIIC T80ºC Db Ex ib IIIC T80ºC Db |
LED | 2*3 | 24 | 120 | 2.5 |
| BCJ52- | ||||||
| BYY51- | 4 | 3.6 | ||||
| BYY52- |
| Rated voltage | Inlet thread | Cable diameter | Protection | Anti corrosion |
|---|---|---|---|---|
| 220V/50Hz | G3/4 | Φ10~Φ14mm | IP66 | WF2 |
🔍 Product Description
- Non polar connection;
- Handheld encoder coding;
- Short circuit independent recoverable protection;
- Made of special cast aluminum alloy by die-casting, high voltage static sprayed surface;
- Exposed stainless steel fasteners with high corrosion resistance;
- Ultra high brightness LED light source, long service life and maintenance free;
- Automatically charged under normal power, automatically lit during power failure.
Applicable Scope
Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC
Security Level
IP66, WF2, Ex db eb mb IIC T6 Gb
Utilization
Gas Station, Refinery, Spray Booth, Hazardous Locations
Emergency Time
30, 60, 90, 120, 180 Minutes
Application Details:
- Zone 1 & Zone 2 explosive gas environments;
- Zone 21 & Zone 22 combustible dust environments;
- IIA, IIB and IIC explosive gas environments;
- T1~T6 temperature groups;
- Refining, chemical industry, gas stations, and emergency lighting.

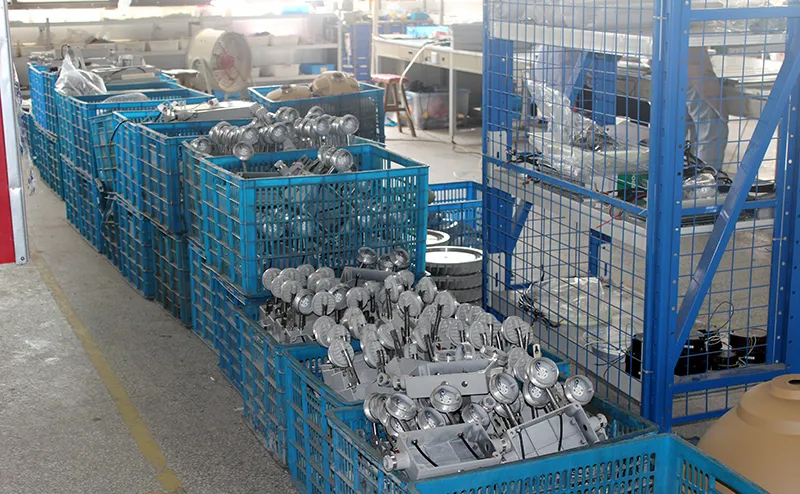

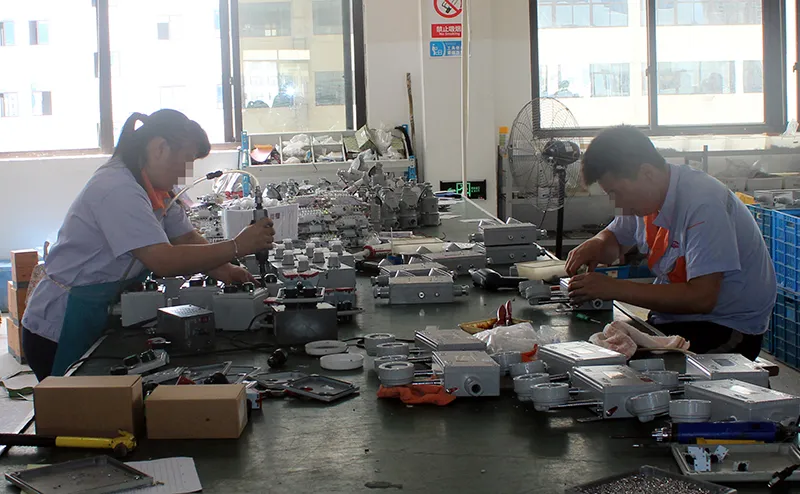

🏭 About Quality & Production
❓ FAQ
Are you a manufacturer or a trading company?
We are a manufacturer and provide OEM services. Our main products are explosion-proof lightings, distribution boxes, cable glands, fans, junction boxes and anti-corrosion & waterproof lights.
What certificates do you have?
We have passed ATEX, IECEx, and hold many National Patents.
In what fields are your products used?
They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, medicine, marine, wine-making, fire fighting, gas stations and other industries.
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Will you accept customized orders?
Yes. Please inform us and confirm the design based on our sample before production.
What is the production capacity?
Our production capacity is approximately 100,000 piece/pieces per month.
