Environmentally Friendly High Transparency LED Display for Specialty Store Displays
Product Description
📊 Basic Information
Model NO.:
LED Transparent Display
Pixel Pitch:
3.91mm
Pixel Density:
73728
Scanning Mode:
1/8 Scan
IP Rating:
IP30

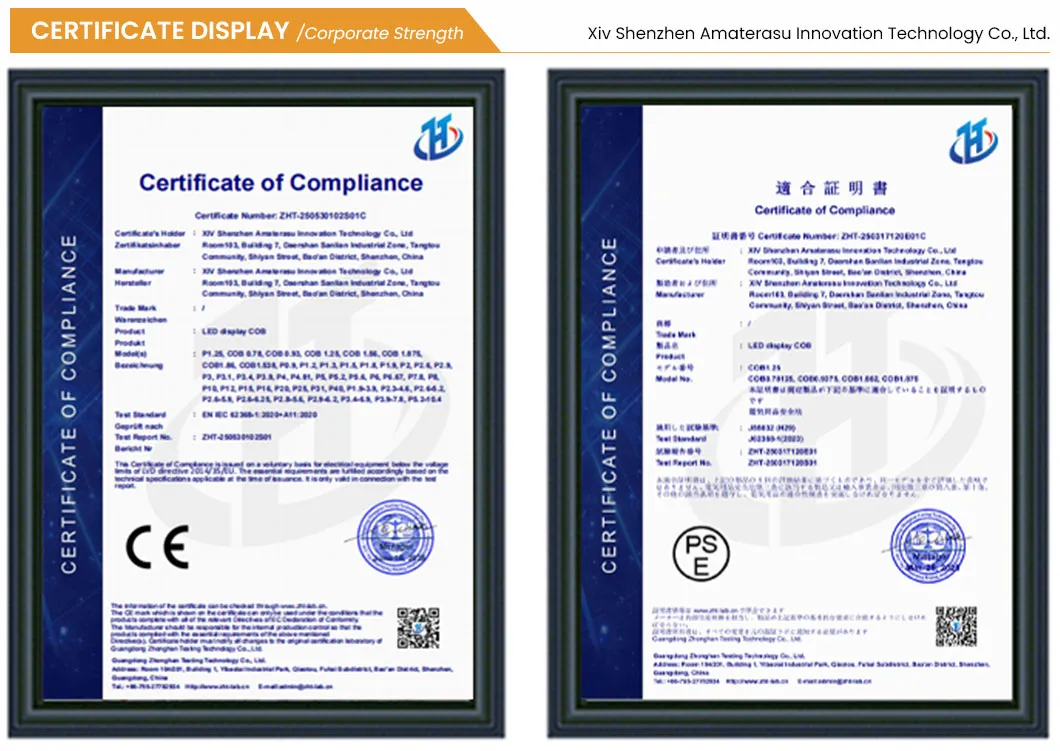

Certification:
CE, CCC, PSE
LED Type:
SMD
Frame Material:
Aluminum
Contrast Ratio:
≥10000:1
View Angle:
160°/160°
Maintenance:
Front Service
HS Code:
8528591090
💡 Product Description
LED TRANSPARENT DISPLAY FOR GLASS WINDOWS, MALLS, AND GLASS FACADES
Our LED Transparent Display is an innovative, front-luminous LED transparent screen that can be seamlessly spliced to create large, see-through video walls without blocking light or views.
Using advanced transparent LED technology, the screen transforms any window or glass wall into a dynamic full-color advertising display while maintaining high transparency and natural daylight. With features such as high brightness, creative lightweight structure, modular design, intelligent control, and energy-saving performance, this is ideal for shop windows, high-end shopping malls, and glass facades.
📋 Technical Specifications
| Physical Parameters | Pixel Pitch | W2.6mm*H5.2mm | W2.6mm*H6.25mm | W3.9mm*7.8mm |
| Module Size(mm) | 500*125 | 500×125 | 500*125 | |
| Pixel Density(dot/Sqm) | 73728 | 61440 | 32768 | |
| Frame Material | Aluminum | |||
| Electronic Parameters | Brightness(cd/m²) | 800-5000 | 1000-5500 | 1000-5000 |
| Transparency | 60% | 56% | 60% | |
| Refresh Rate(Hz) | 1920/3840 | 1920/3840 | 1920/3840 | |
| Max.Power Consumption | 800 W/m² | 800 W/m² | 800 W/m² | |
✨ Functional Advantages

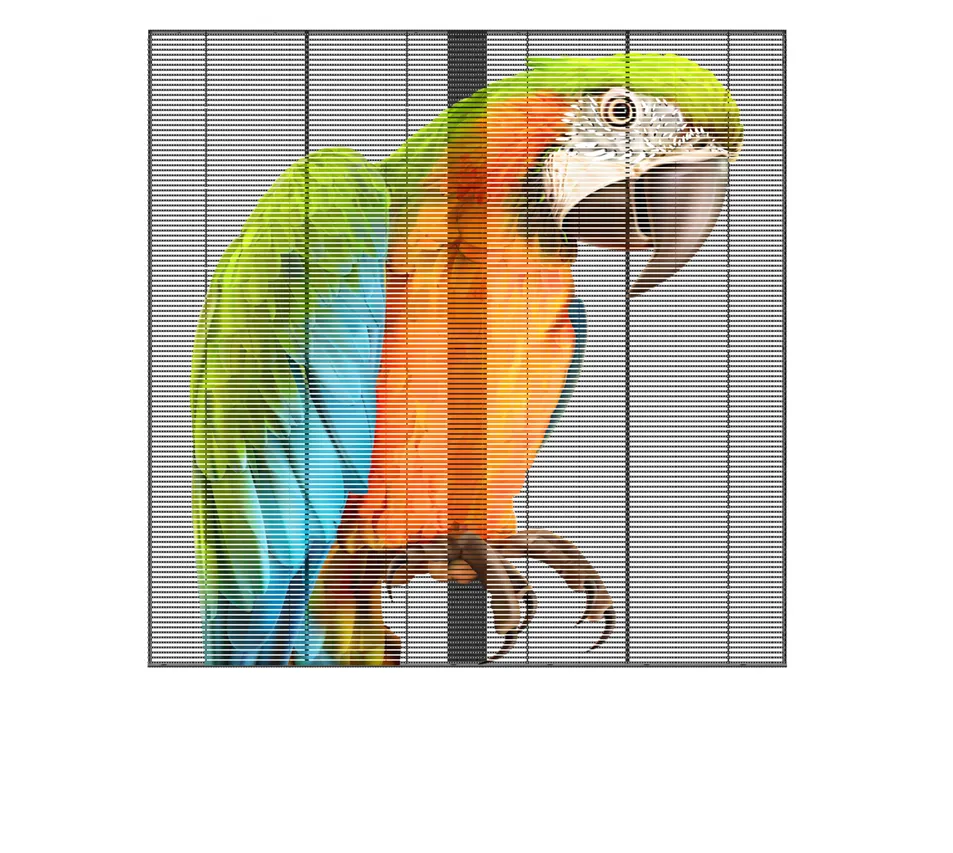

High Transparency
Allows light to pass through without blocking the view, perfect for glass facades.
Allows light to pass through without blocking the view, perfect for glass facades.

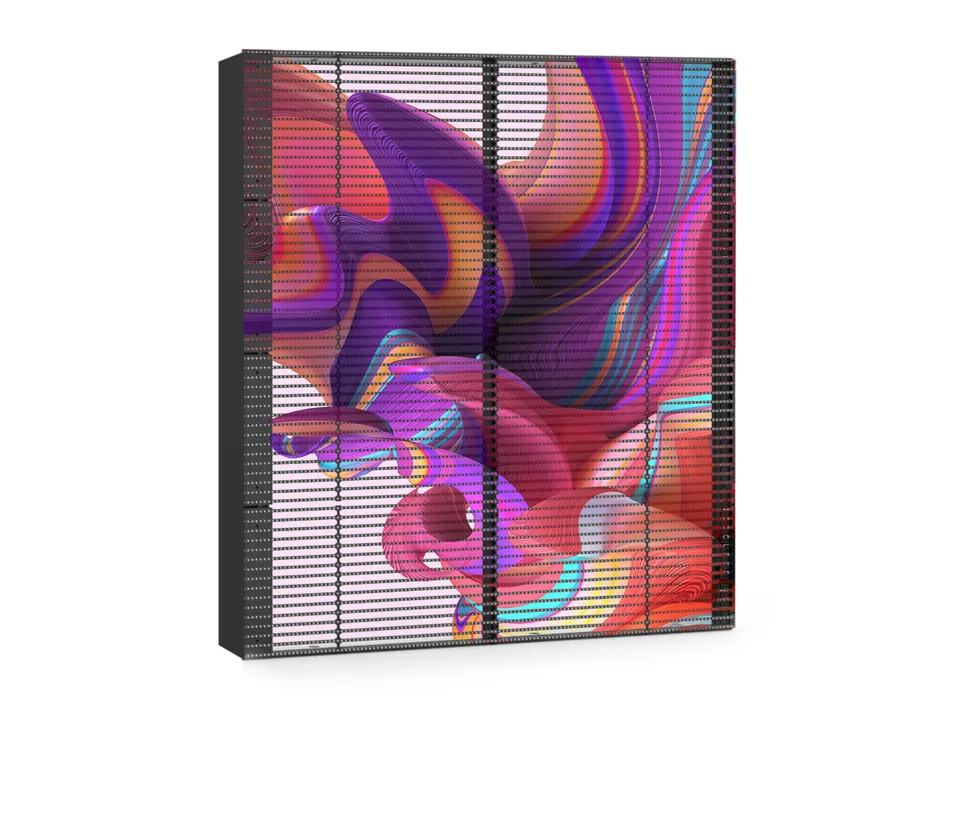

Daylight Readability
High brightness levels provide excellent visibility even in strong ambient light.
High brightness levels provide excellent visibility even in strong ambient light.

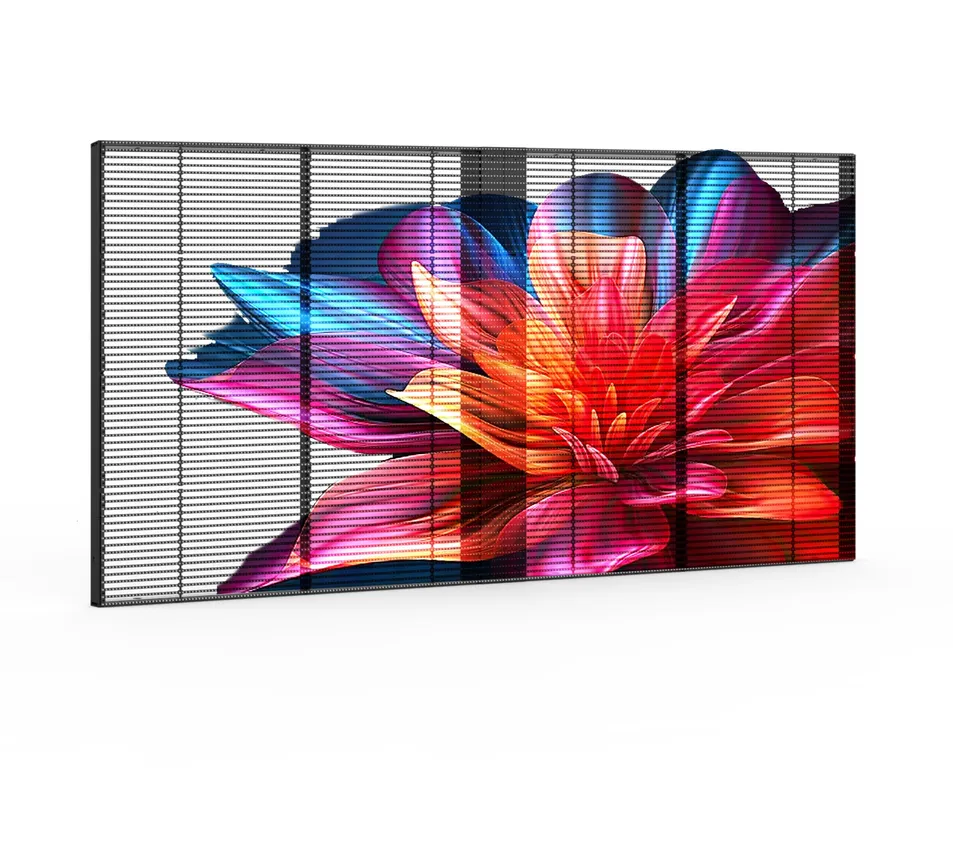

Modular Splicing
Flexible design supports various screen sizes and simplifies future maintenance.
Flexible design supports various screen sizes and simplifies future maintenance.

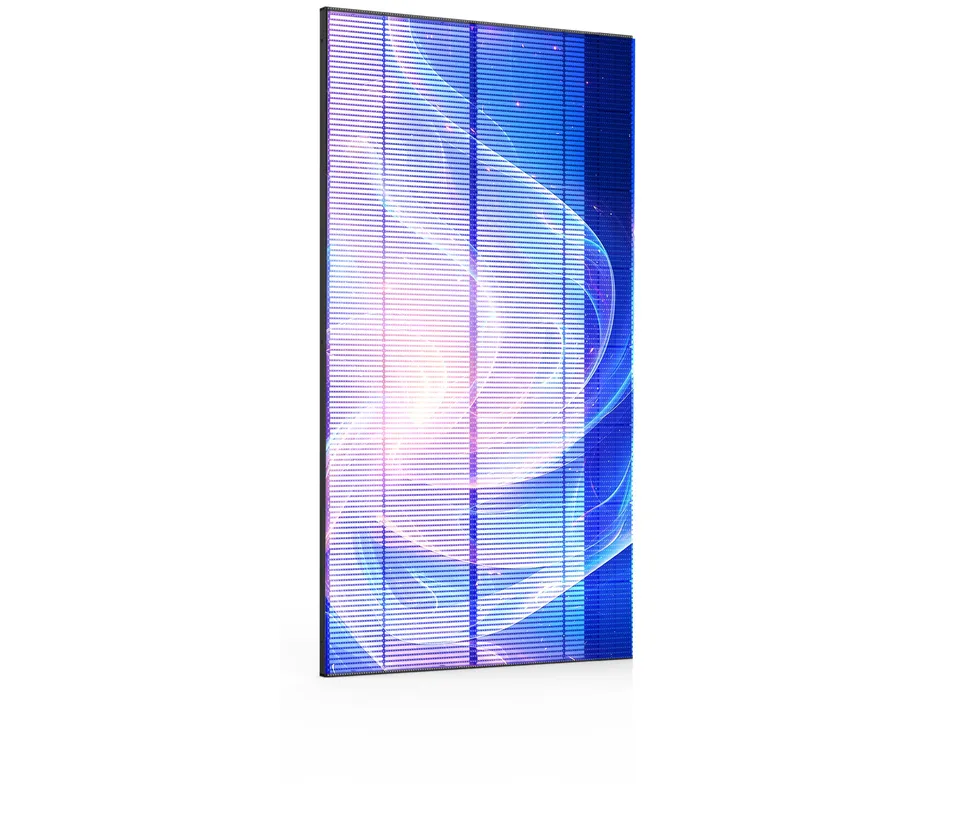

Lightweight Design
Slim frame adds minimal load to glass walls and supports creative configurations.
Slim frame adds minimal load to glass walls and supports creative configurations.

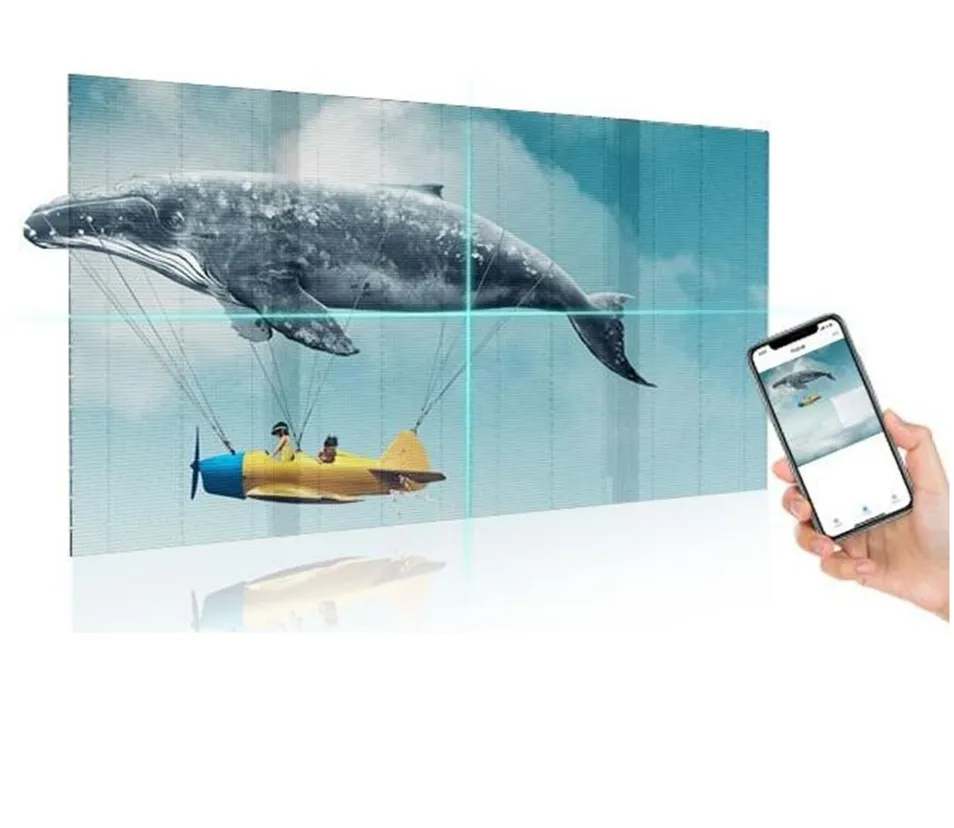

Flexible Mounting
Can be retrofitted behind existing windows without major structural changes.
Can be retrofitted behind existing windows without major structural changes.
🚀 Core Applications

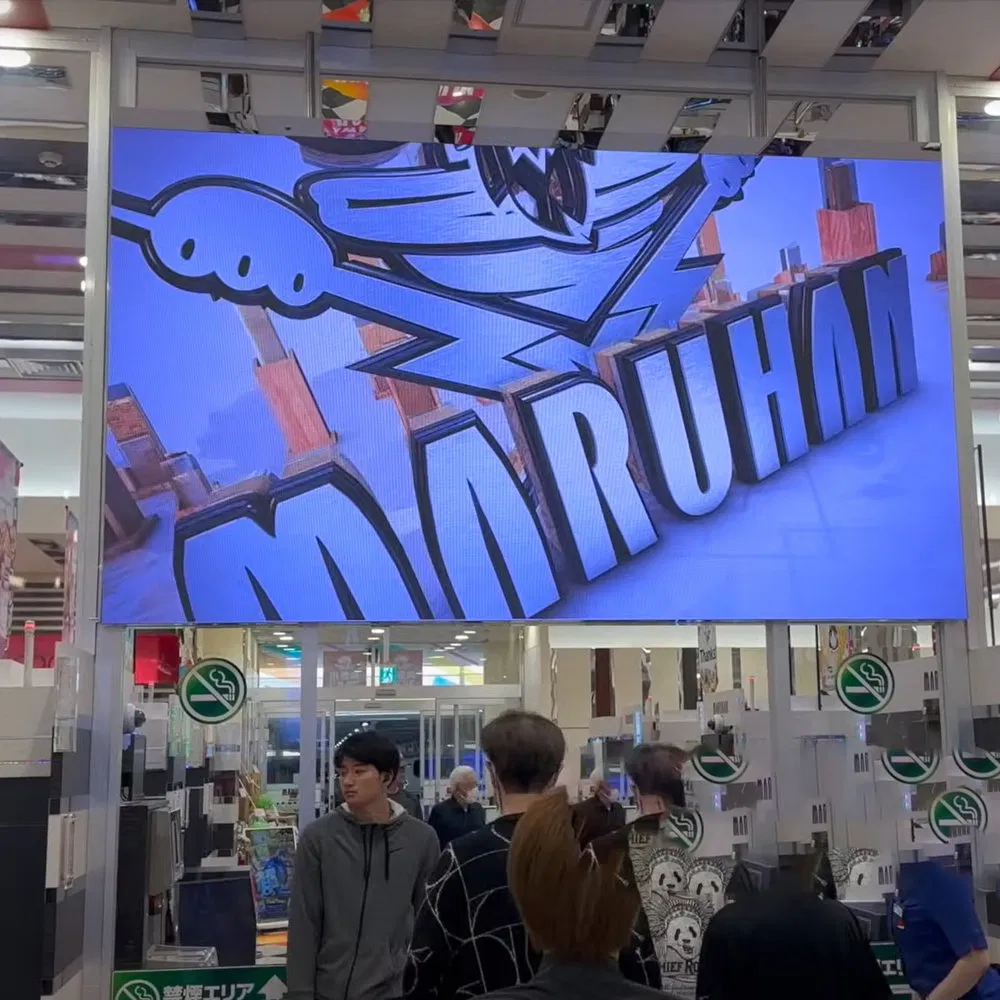

- SHOP WINDOWS: Turn retail windows into dynamic advertising screens while keeping interior light.

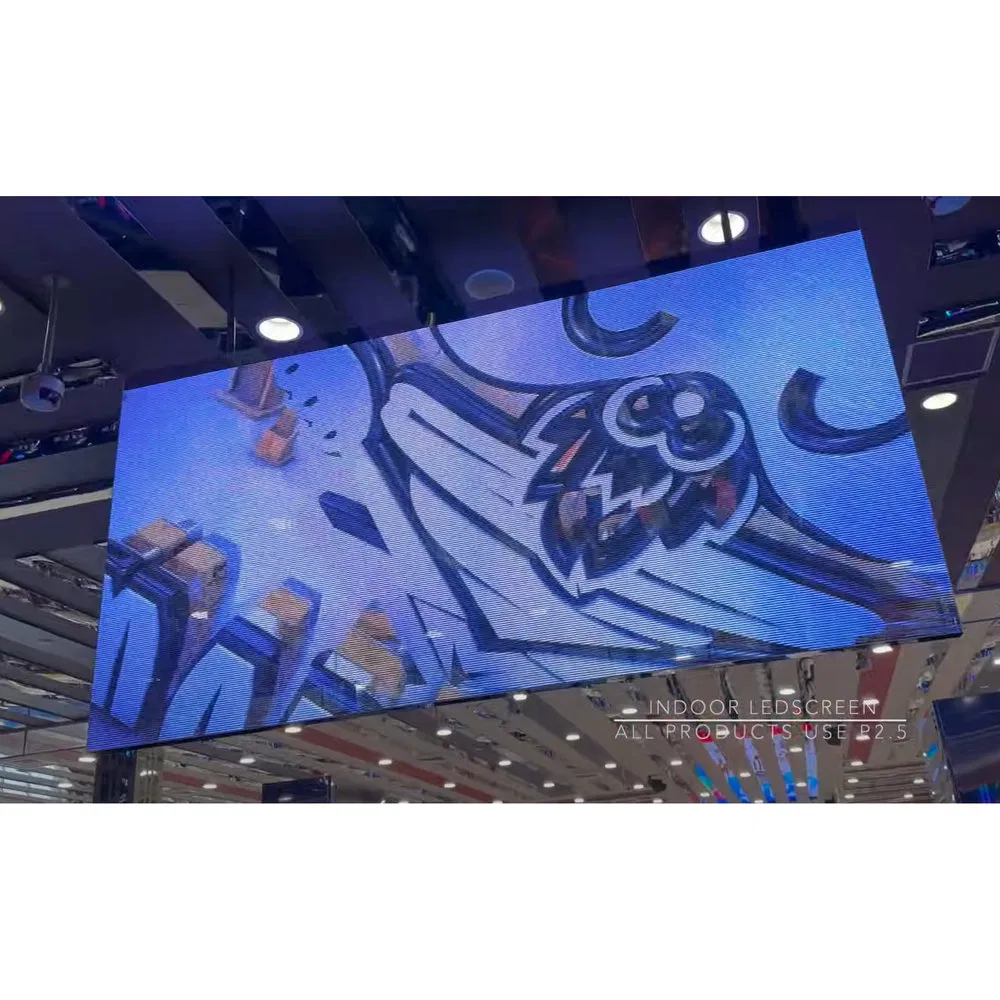

- MALL ATRIUMS: Create floating visual effects in high-end commercial spaces.
- BUILDING FACADES: Achieve architectural lighting and digital signage on glass exteriors.
- EXHIBITION HALLS: Layer digital content over physical exhibits for immersive storytelling.
❓ Frequently Asked Questions
What is a Transparent LED Display?
A Transparent LED Display features high transparency (typically 50%-70%+), allowing light and vision to pass through while showing dynamic content. It creates a modern "holographic" effect for storefronts and glass curtains.
How do I choose between Transparent and Flexible displays?
Choose Transparent for glass installations to maintain view-through. Choose Flexible to adapt to curved surfaces or creative irregular shapes.
What are the main benefits of Flexible LED Displays?
They use bendable PCBs to conform to curved or cylindrical surfaces. They offer high durability, effective heat dissipation, and are perfect for creative commercial spaces or stage backdrops.
Where are these displays typically used?
They are widely used in luxury retail, corporate boardrooms, TV studios, airport info displays, and control centers for traffic or smart city management.
What is the warranty and technical support?
We provide a standard 2-year warranty on major components along with remote troubleshooting and detailed installation video tutorials.
What is the typical delivery time for orders?
Sample orders ship in 5-10 working days, while mass production generally takes 3-5 weeks depending on complexity.
