Csbattery 2V200ah Deep Cycle Opzv Bateria for High-Recombination-Efficiency/VFD-Systems/Stationary/Renewable/Vs: Shoto/Ava
Product Description
📋
Basic Product Specifications
Model NO.
opzv200
Nominal Voltage
2V
Capacity
200Ah
Electrolyte
PVC+Gel+Acid
Lifespan
20-25 Years
Warranty
3 Years
Installation
Fixed
Casing
ABS or UL94 Fire Resistance
Terminal
Pure Copper Terminals T10
Certificate
CE, IEC, ISO
⚡
Product Description

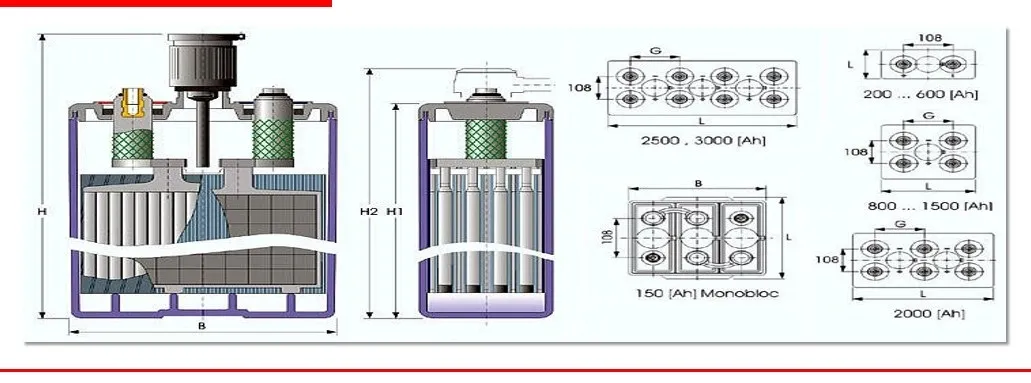

OPzV Super Deep Cycle Tubular GEL Battery 2Volt 200Ah up to 3000Ah
Tubular Deep Cycle Solar gel batteries are recognized as the most reliable and high-quality battery systems in the industry. Designed with advanced patented GEL technology, these batteries offer a service life of 20-25 years and can achieve over 2000 cycles at 80% DOD. They comply with international standards such as IEC60896-21/22, BS6290-4, and the Eurobat Guide.
✓Environmentally friendly
✓Completely Maintenance-Free
✓Non-Spillable construction design
✓Wide Operating Temp (-20°C~+60°C)
✓Explosion Proof & Low Self Discharge
✓Independent of Position installation
📊
Technical Parameters
| Specification (4OPzV200) | Details | ||
|---|---|---|---|
| Nominal Voltage | 2V (Single Cell) | ||
| Design Floating Life @ 25ºC | 25 Years | ||
| Nominal Capacity @ 25ºC | 10 hour rate @ 20.0A | 200Ah | |
| Internal Resistance | Full Charged @ 25ºC | ≤0.6mΩ | |
| Dimensions | L*W*H (mm) | 103*206*375 (Total 390) | |
| Self-Discharge @ 25ºC | 2% per Month | ||
🏗️
Applications
◈Solar & Wind Powered Systems
◈Telecommunication Control Equipment
◈Uninterruptible Power Supplies (UPS)
◈Emergency Lighting Systems
◈Power Generation Plants & BTS Stations
◈Medical & Security Systems
📦
Packaging & Logistics
Package Size
103.00cm * 206.00cm * 390.00cm
Gross Weight
19.000kg
Transport Package
Carton
Delivery Days
10-15 Days
❓
Frequently Asked Questions
Q1. Can the battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.
Q2. Can I put my logo on the battery?
Yes, logo printing is available for orders reaching 20ft container quantities. Smaller quantities may be negotiated.
Q3. Can I fast charge my battery?
Fast charging is not recommended as it can be harmful to the long-term health of the battery.
Q4. How about your typical delivery time?
About 7 days for stock products, around 20 days for half container products, and 30 days for 20ft full container orders.
Q5. Why does the battery have different capacities at different hour rates?
The capacity in Ah is dynamic and depends on the discharge current. Lower discharge currents (like the 20-hr rate) allow the battery to deliver more total capacity than higher currents.
Q6. What is the shelf life and maintenance required?
VRLA batteries self-discharge less than 3% per month at 25°C. They should be recharged every 6 months (or every 3 months in hot climates) if stored.
