Brtled Patent White Amber DRL LED Light Bar Screwless off-Road Car ATV LED Light Bar LED Bar Offroad Lights
Product Description
1
Basic Info
Model NO.
BL0610S2
Certification
RoHS, CE, ISO, ECE R112/R7/ R10, CE,IP68,IP69K
Voltage
DC9-36V
Light Color
White
Application
Bar, Lighting, Car, LED Light Bar
Type
LED Light Bar
Size
13inch-324*58*81mm
Watts
60W
Beam Pattern
Driving Beam /Spot Beam +Amber White DRL
Luminous Flux
5700lm
LED
6PCS*10W LED
Color Temp
6500K
2
Product Description
Key Features
- Popular Sizes: Available in most popular 20inch and 13inch configurations.
- Unique Aesthetic: Innovative diamond shape design for a modern look.
- Dual Color Light: Features "water flow" dual color park light (White and Amber).
- Versatile Mounting: Dual mounting options via side and bottom brackets.
- Certified Quality: Emark R112, R7, R10 approved.
- Extreme Protection: IP68/IP69K waterproof rating for all-weather use.
- Snow-Prevention Design: Slanted front lens prevents snow and dust build-up.
3
Technical Specification

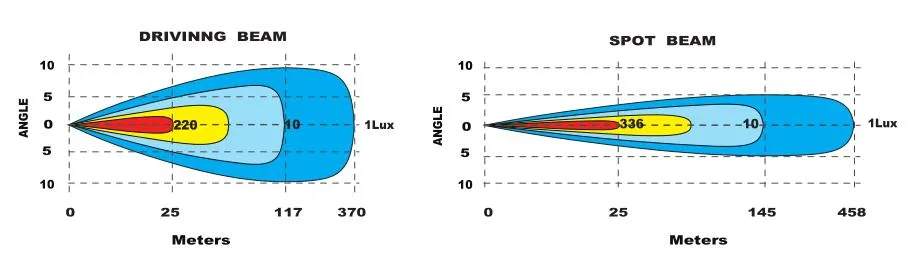

BL0610S2 (13inch)
LED
6pcs* 10W LEDS
Beam
Driving beam/spot beam
Voltage
9-36V DC
Lux
1Lux@370m/1Lux@458m
Lumen
Raw: 5700LM / Effective: 4845LM
Certificate
ECE R112/R7/R10 REF.30

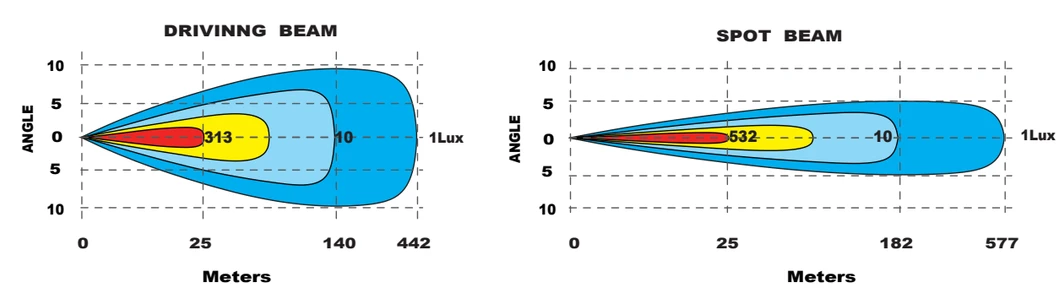

BL1010S2 (20inch)
LED
10pcs* 10W LEDS
Beam
Driving beam/spot beam
Lux
1Lux@442m/1Lux@577m
Lumen
Raw: 9500Lm / Effective: 8200Lm
Size
516*58*81mm
Certificate
ECE R112/R7/R10 REF.45
4
Dimension & Application
5
Packing & Company Profile
Frequently Asked Questions
Q1: What is the waterproof rating for these light bars?
A: The light bars comply with IP68 and IP69K standards, ensuring maximum protection against water and dust ingress.
Q2: Does the lens design prevent snow accumulation?
A: Yes, the slanted front lens is specifically designed to prevent snow and dust build-up, maximizing light output in harsh conditions.
Q3: What mounting options are available?
A: These units support dual mounting ways, including both side and bottom bracket installations.
Q4: Are these light bars certified for road use?
A: Yes, they are Emark R112, R7, and R10 approved, meeting strict international safety and quality standards.
Q5: What is the benefit of the Electronic Thermal Management (ETM)?
A: ETM helps regulate the temperature of the LEDs to prevent overheating, thereby extending the lifespan of the light bar.
Q6: What voltage range do these lights support?
A: They operate on a wide DC9-36V range, making them suitable for various vehicles including cars, ATVs, and trucks.
