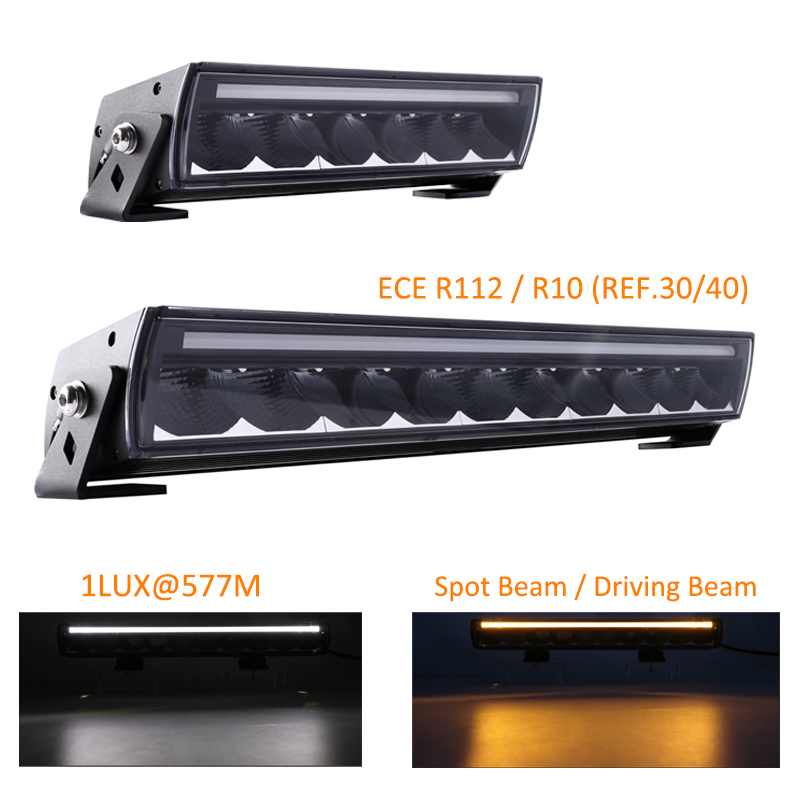

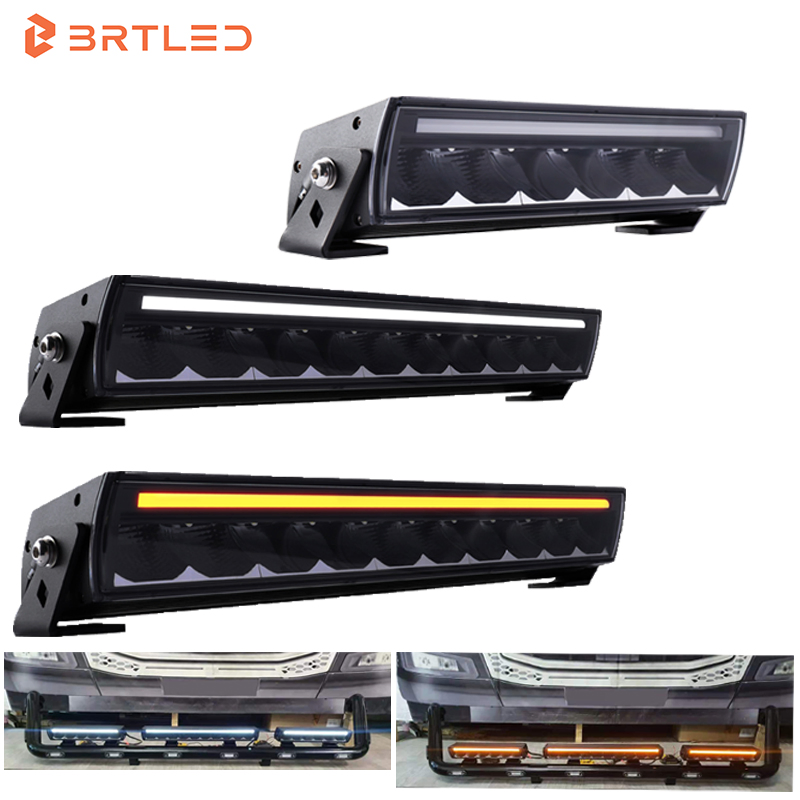

Brtled Patent White Amber DRL LED Light Bar Screwless off-Road Car ATV LED Light Bar LED Bar Offroad Lights
Product Description
Basic Information
Model NO.:BL0610S2
Certification:RoHS, CE, ISO, ECE R112/R7/ R10, IP68, IP69K
Voltage:DC9-36V
Light Color:White
Watts:60W
Beam Pattern:Driving/Spot Beam + Amber White DRL
Luminous Flux:5700lm
Size:324*58*81mm (13inch)
Product Description
💎 Key Features
The most popular size 20inch and 13inch.
Unique design with diamond shape.
With "water flow" dual color park light.

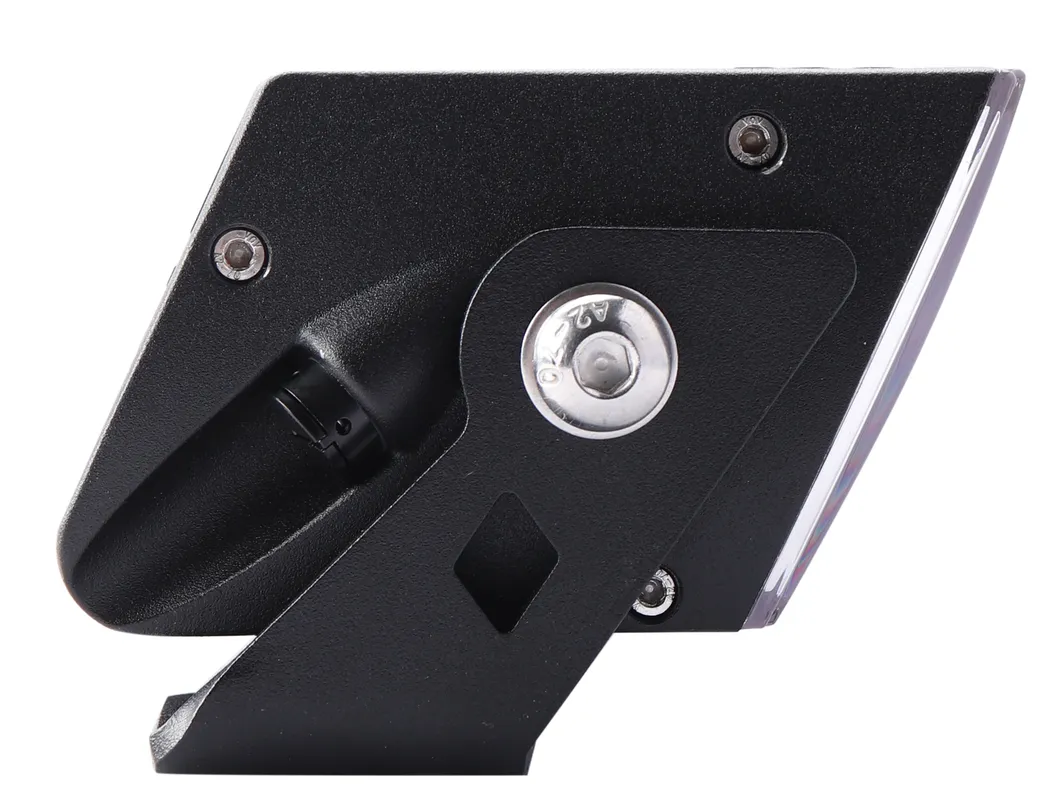

Dual mounting way: side and bottom bracket.
Emark R112, R7, R10 approved.
IP68/IP69K waterproof rate.
Slanted front lens: prevent snow/dust build-up on the lens.

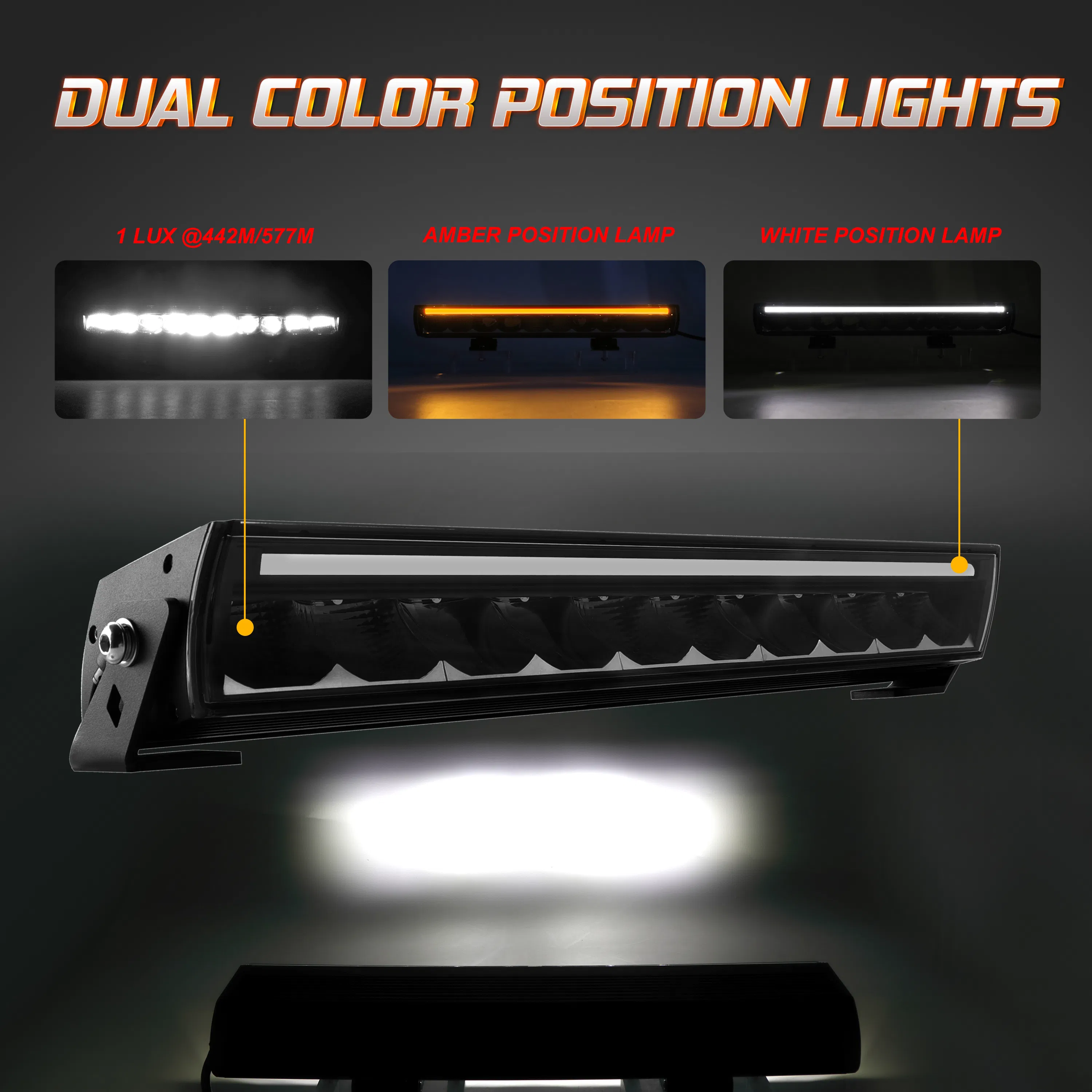

2 in 1 position light: white and amber color.
Specifications
Model: BL0610S2 (13inch)

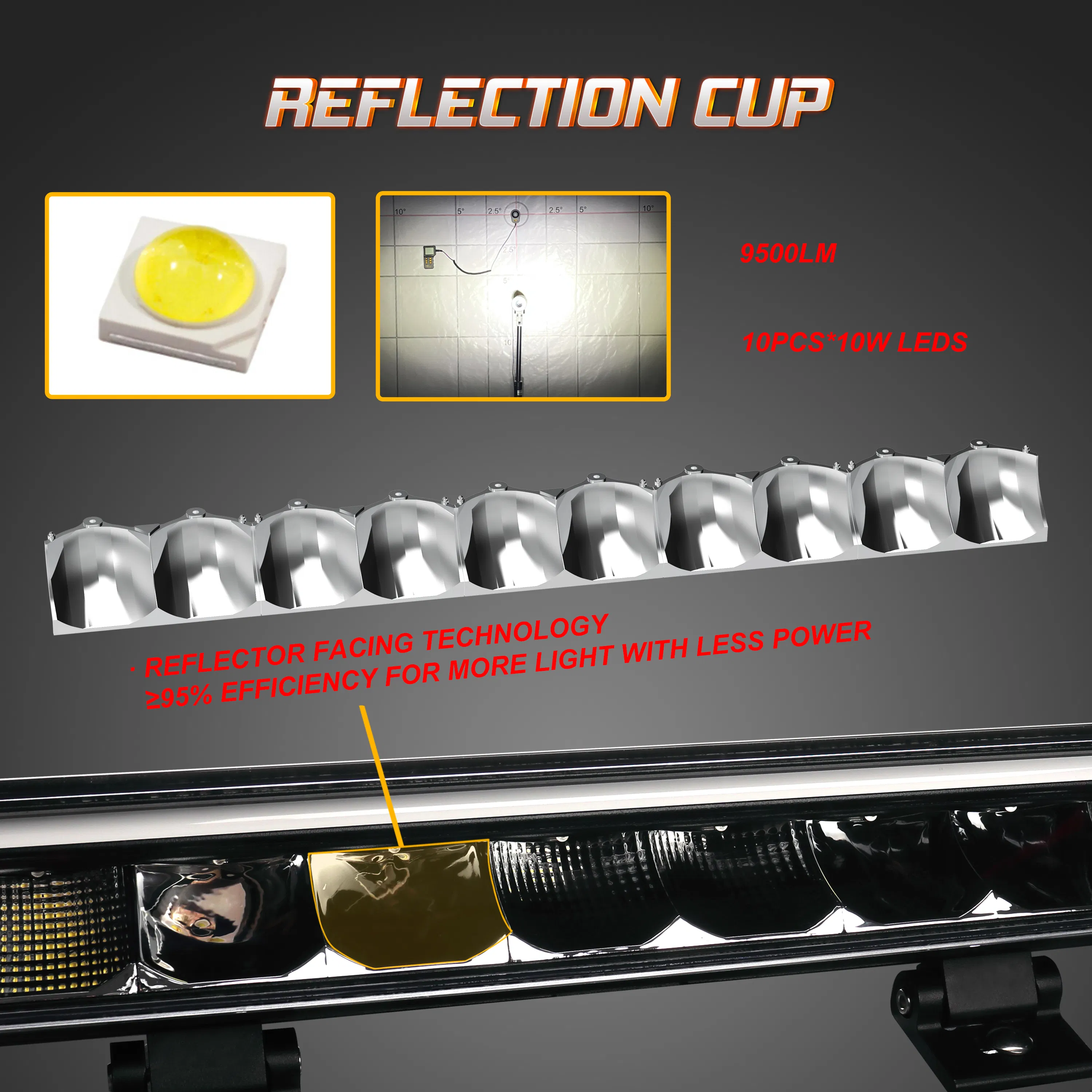

| LED: 6pcs* 10W LEDS | Beam: Driving beam/spot beam |
| Voltage: 9-36V DC | Lux: 1Lux@370m/1Lux@458m |
| Size: 324*58*81 mm | IP Rate: IP68/IP69K |
| Lumen: Raw: 5700LM / Effective: 4845LM | Certificate: ECE R112/R7/R10 REF.30 |
Model: BL1010S2 (20inch)
| LED: 10pcs* 10W LEDS | Beam: Driving beam/spot beam |
| Voltage: 9-36V DC | Lux: 1Lux@442m/1Lux@577m |
| Size: 516*58*81mm | IP Rate: IP68/IP69K |
| Lumen: Raw: 9500Lm / Effective: 8200Lm | Certificate: ECE R112/R7/R10 REF.45 |

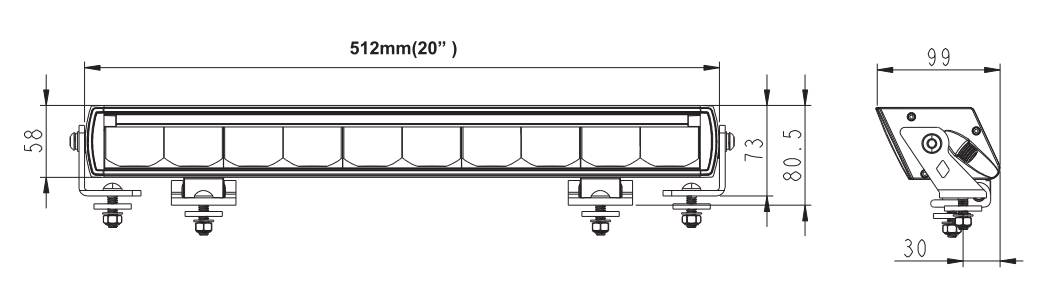

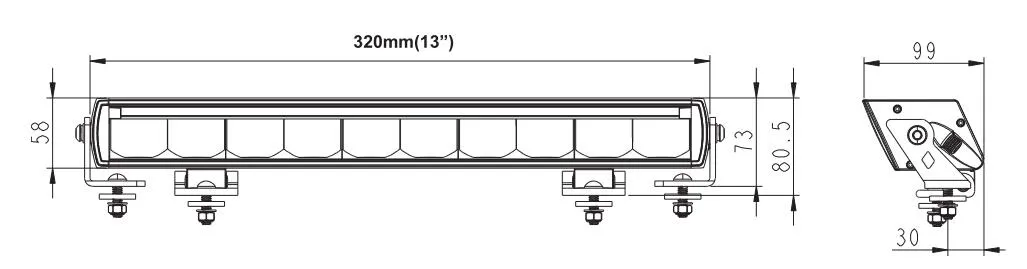

Dimensions

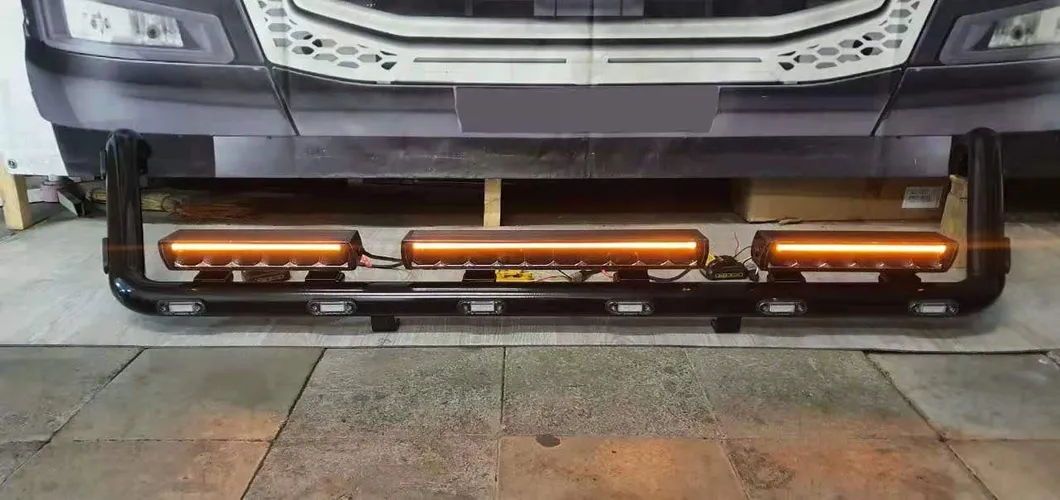

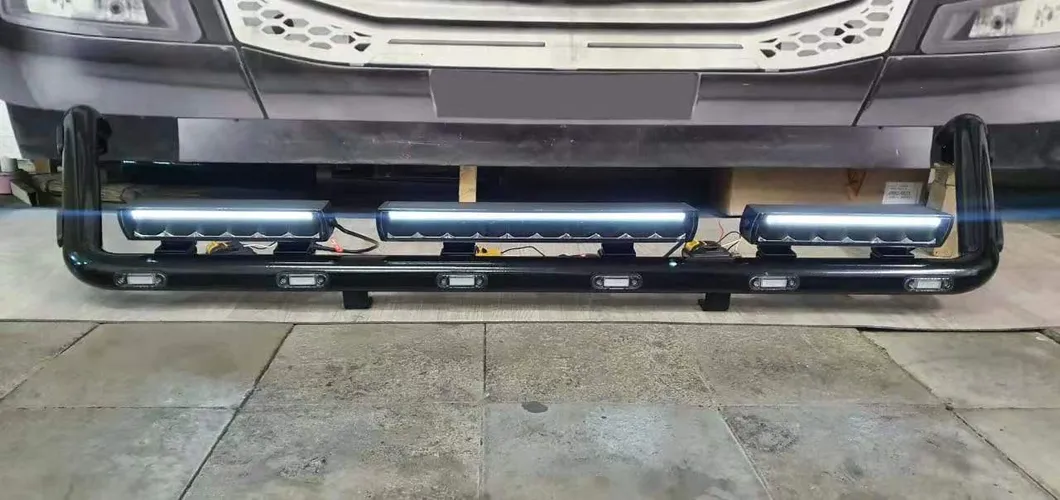

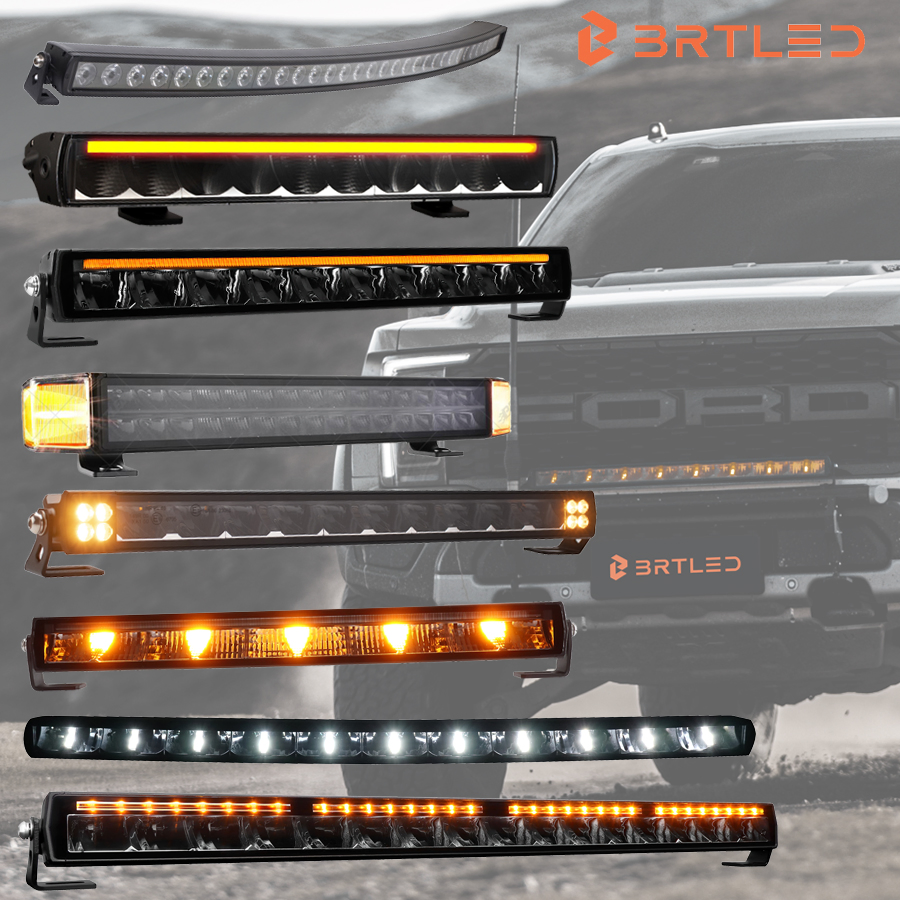

Application

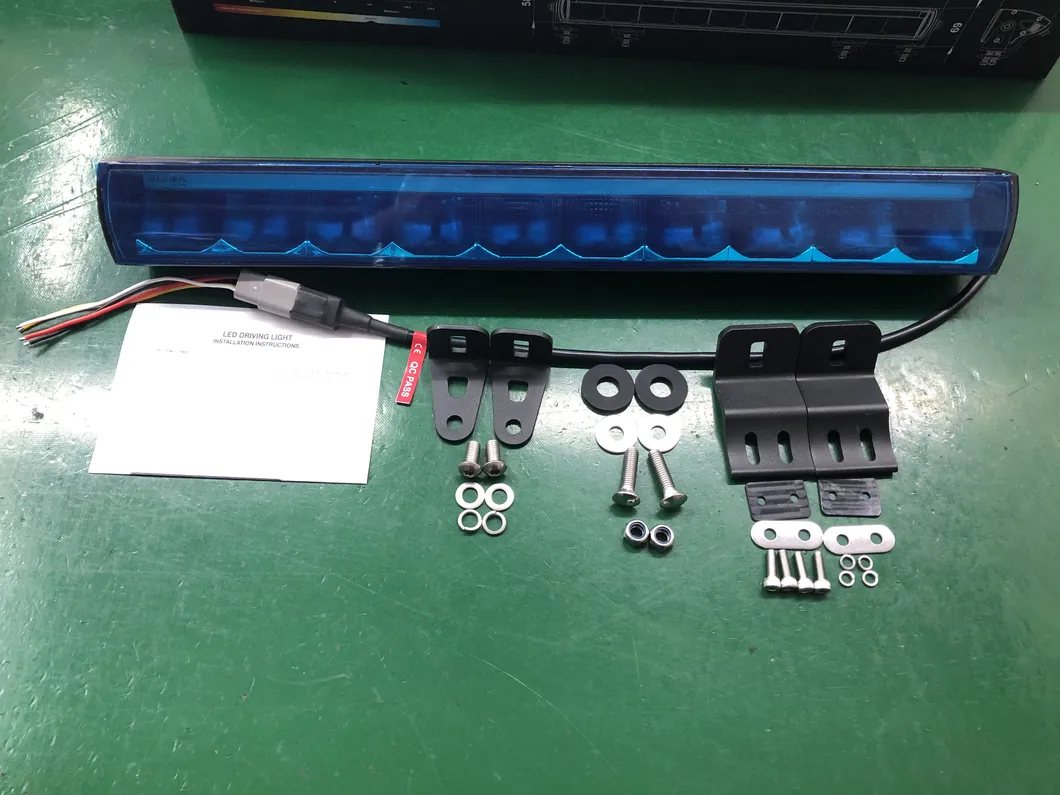

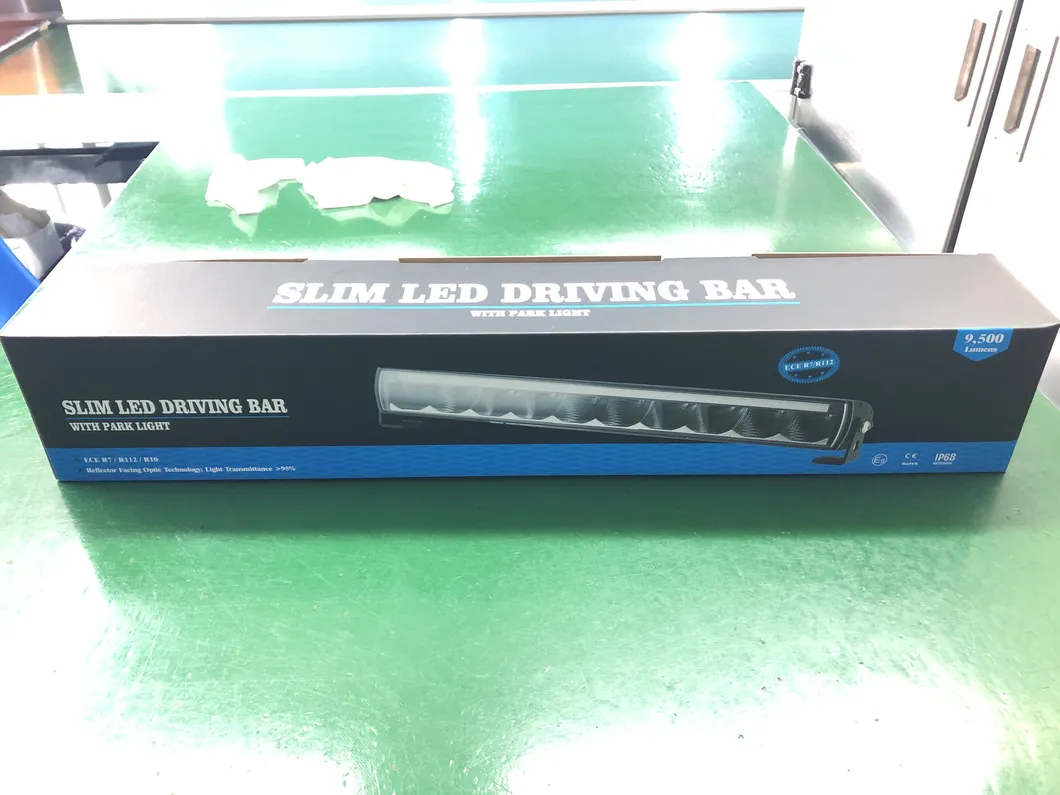

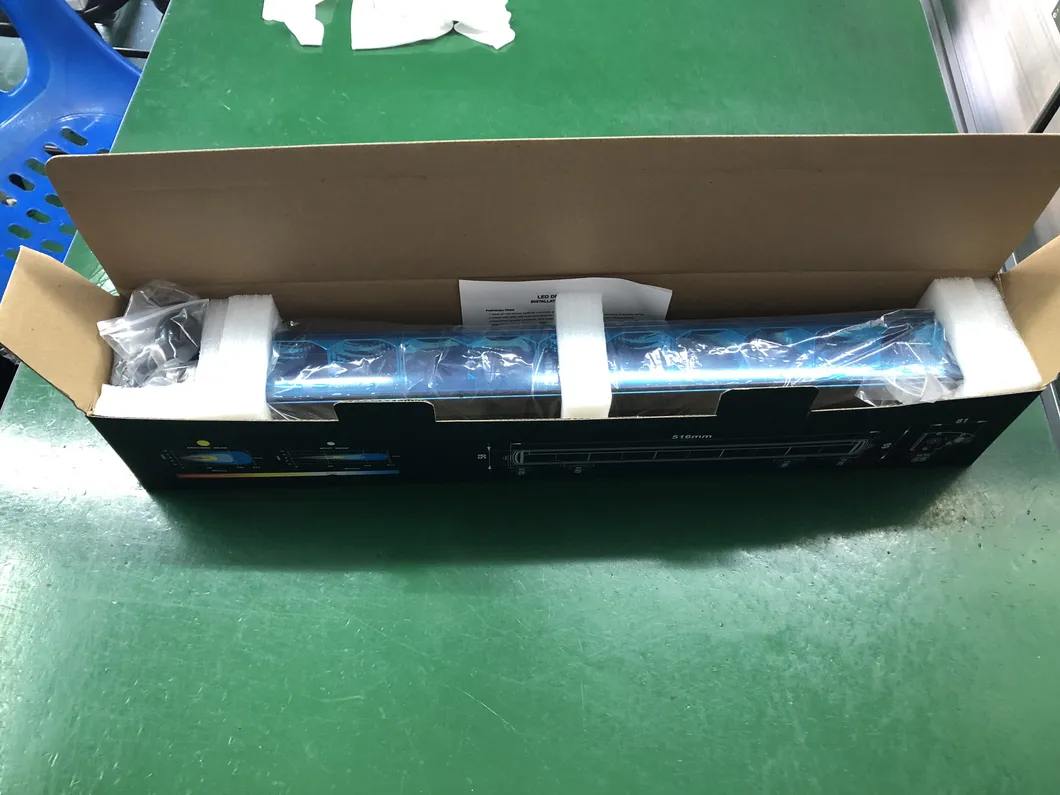

Packing & Delivery

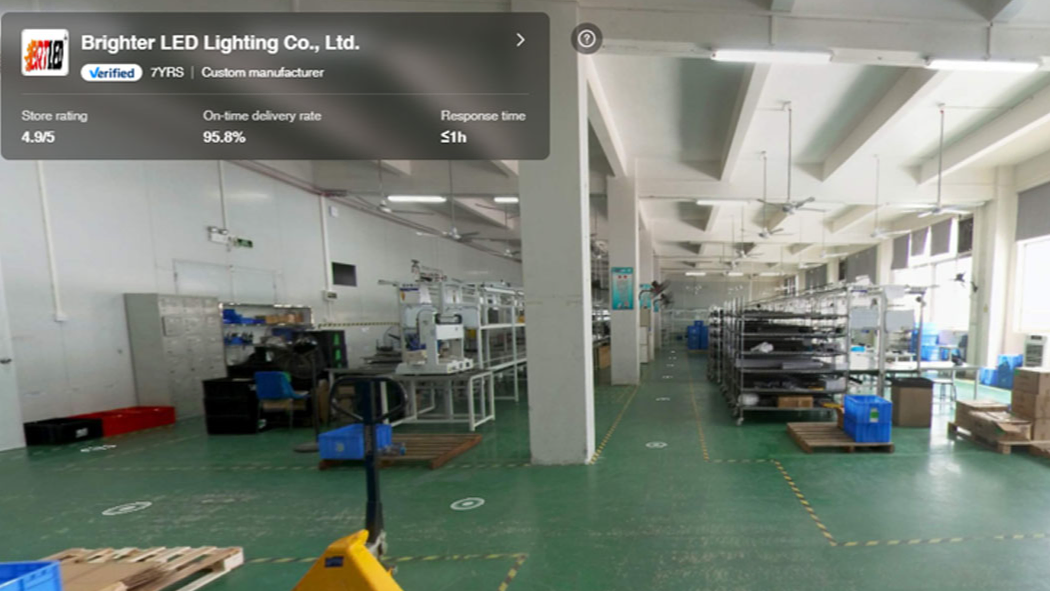

Production Facility
Frequently Asked Questions
Q1: What certifications do these LED light bars hold?
A: Our light bars are fully certified with RoHS, CE, ISO, and ECE R112/R7/R10 standards.
Q2: Are these light bars waterproof?
A: Yes, they comply with IP68 and IP69K waterproof ratings, ensuring protection against high-pressure water jets and immersion.
Q3: What are the main benefits of the slanted front lens design?
A: The slanted front lens prevents snow and dust build-up, which maximizes light output and extends the lifespan of the unit.
Q4: Does the light bar include a Daytime Running Light (DRL)?
A: Yes, it features a 2-in-1 position light with both white and amber colors, including a "water flow" dual-color park light function.
Q5: What mounting options are available?
A: The product supports dual mounting methods with both side and bottom brackets included for flexible installation.
Q6: What is the operating voltage for these units?
A: The light bars operate on a DC 9-36V range, making them suitable for cars, ATVs, and off-road vehicles.
