Borehole Inspection CCTV Camera Water Well Inspection Camera Deep Hole Camera System
Product Description
🟣 Basic Info.
Model NO.
GYGD-IV
Angle
180/360degree
Application
Borehole CCTV Camera
Depth Range
0-1000m
Camera Diameter
75mm
Winch
Speed Control, Electric

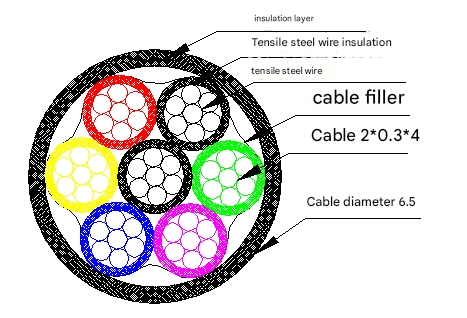

Cable Core
6 Core
Pressure
15MPa
HS Code
8525801190
Capacity
1000 Per Months
🟣 Product Description
GYGD-IV Multi-Function Borehole Inspection Camera System: Revolutionizing Underground Exploration
Product Overview
The GYGD-IV Multi-Function Borehole Inspection Camera System is a cutting-edge solution designed for precision imaging and data collection in challenging subsurface environments. Engineered for durability and versatility, this system integrates advanced imaging technology and robust mechanical components.
🌟 Key Features & Benefits

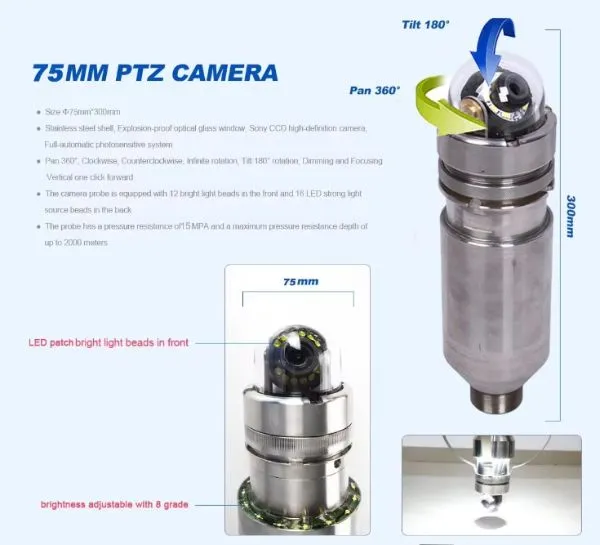

- High-Resolution Imaging: 1/3" Color CCD Sensor with 0.1 Lux sensitivity and 8x Digital Zoom.
- Full Rotation: 360° Horizontal & 180° Vertical Rotation for comprehensive panoramic control.
- Extreme Durability: Stainless steel probe withstands pressures exceeding 15 MPa with IP68 waterproof rating.
- Smart Data: Direct USB storage (32GB) and real-time depth measurement up to 9,999 meters.
- Advanced Display: 12-inch LCD with 1024x768 resolution for crystal clear monitoring.
| Parameter | GYGD-IV Specification |
|---|---|
| Imaging Sensor | 1/3" Color CCD (0.1 Lux) |
| Display | 12-inch LCD (1024x768) |
| Storage | 32GB USB Drive |
| Probe Diameter | 75mm |
| Max Pressure | ≥15 MPa |
| Cable Tensile Strength | 250 KG |
| Power Supply | AC 220V 50Hz |
| Depth Measurement | 0-9999m (Configurable) |

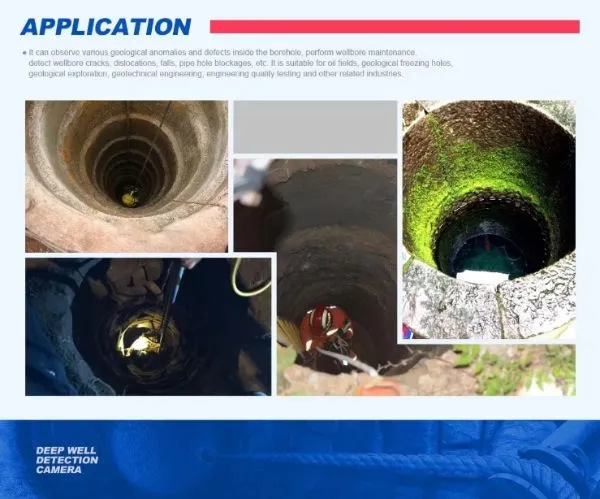

🟣 Applications & Safety
- Water Well Maintenance: Detect blockages, corrosion, or leaks in real time.
- Geotechnical Surveys: Map subsurface structures for mining or construction.
- Marine Infrastructure: Inspect underwater pipelines, dams, and salvage operations.
- Oil & Gas: Monitor wellbore integrity and drilling efficiency.
- Safety Protocols: Includes emergency shutdown, speed control, and CE-Certified components.
🟣 Detailed Photos

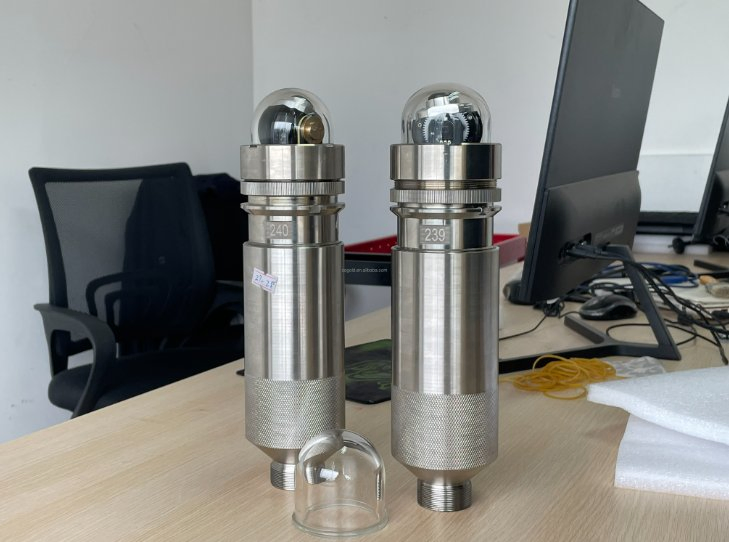

Borehole Inspection CCTV Camera

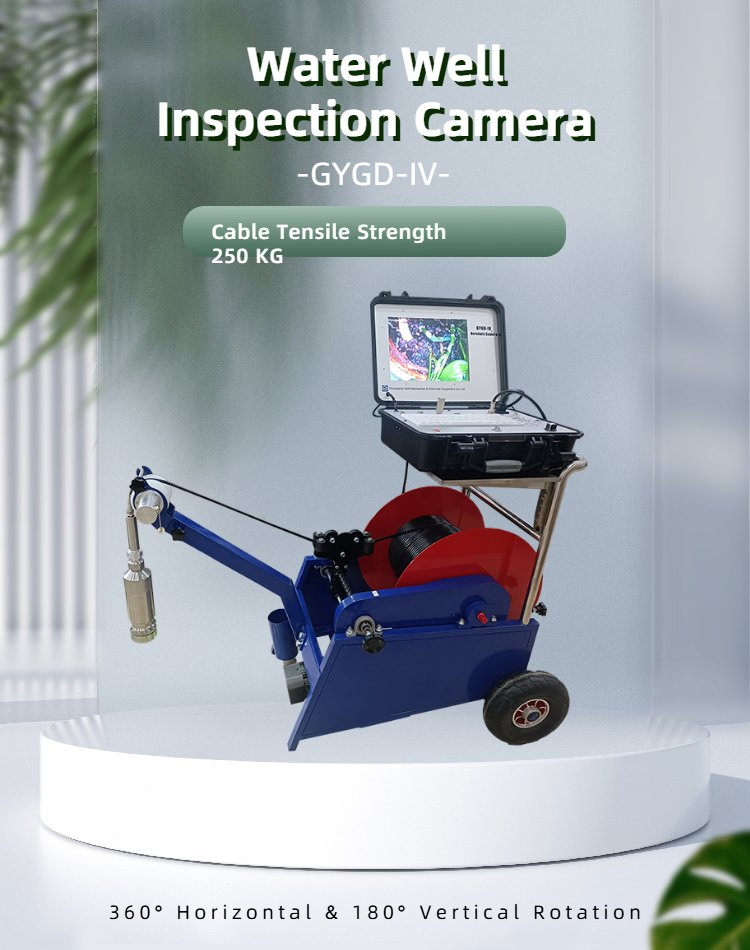

Water Well Inspection Unit

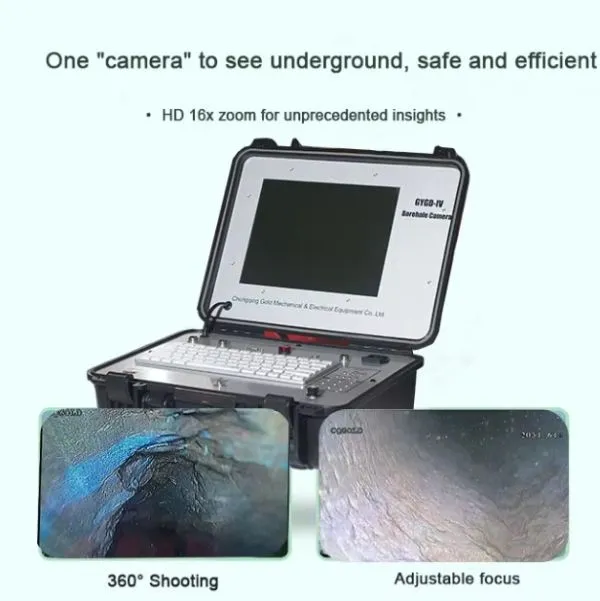

Deep Hole Camera System Display
Control System Components

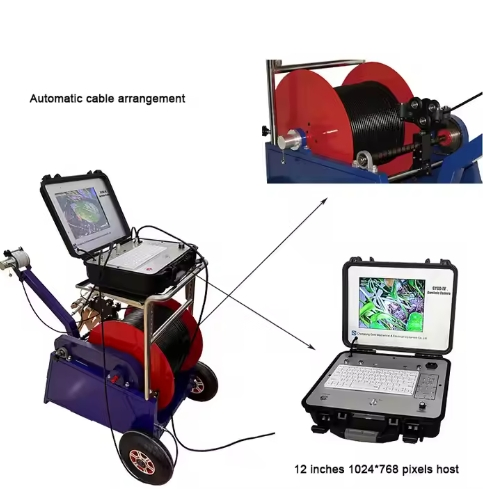

Cable Winch System
Frequently Asked Questions
What is the maximum depth the GYGD-IV can inspect?
The system is configurable for various depths ranging from 0 to 1000 meters, with a digital counter supporting up to 9,999 meters.
Can the camera handle high-pressure environments?
Yes, the stainless steel probe is designed to withstand pressures exceeding 15 MPa, making it suitable for deep-well operations.
Does the system support video recording?
Absolutely. It supports direct USB storage to a 32GB drive for both high-definition video and photo capture.
What is the rotation capability of the camera lens?
The lens offers a full 360° horizontal rotation and a 180° vertical tilt, allowing for a complete panoramic view of the borehole walls.
Is the lighting adjustable for dark wells?
Yes, the system features a high-intensity LED light source with 8-level brightness control to ensure optimal visibility in any condition.
What power supply is required for operation?
The system operates on a standard AC 220V 50Hz power supply.
