500W Compact Solar Power System MPPT Control, CE Approved for RV and Marine Use
Product Description
📊 Basic Info.
Model NO.
WON-SPS-01
Condition
New
Certification
ISO, CB, CE, RoHS
Application
Home, Industrial, Commercial
Product Name
500W~6kw Solar Energy System
Rated Power
500W/1.5kw/3kw/6kw
Controller
MPPT Charging Mode
Battery Type
Lead Acid /Lithium /Iron Lithium
Efficiency
>85%
Origin
China
🌟 Product Features
✔1. All in one design: inverter, controller and battery all built-in, easy to use and install.
✔2. Continuous stable pure sine wave: no loss to load.
✔3. Hybrid mode: can be charged by solar as well as grid, charging time is around 2-3 hours.
✔4. LiFePO4 battery: 10 years lifespan.
✔5. Multiple outputs: 220V/110V AC, USB DC, 12V DC.
✔6. Multi-protection: Overload, overvoltage, lowvoltage, high temperature, etc.

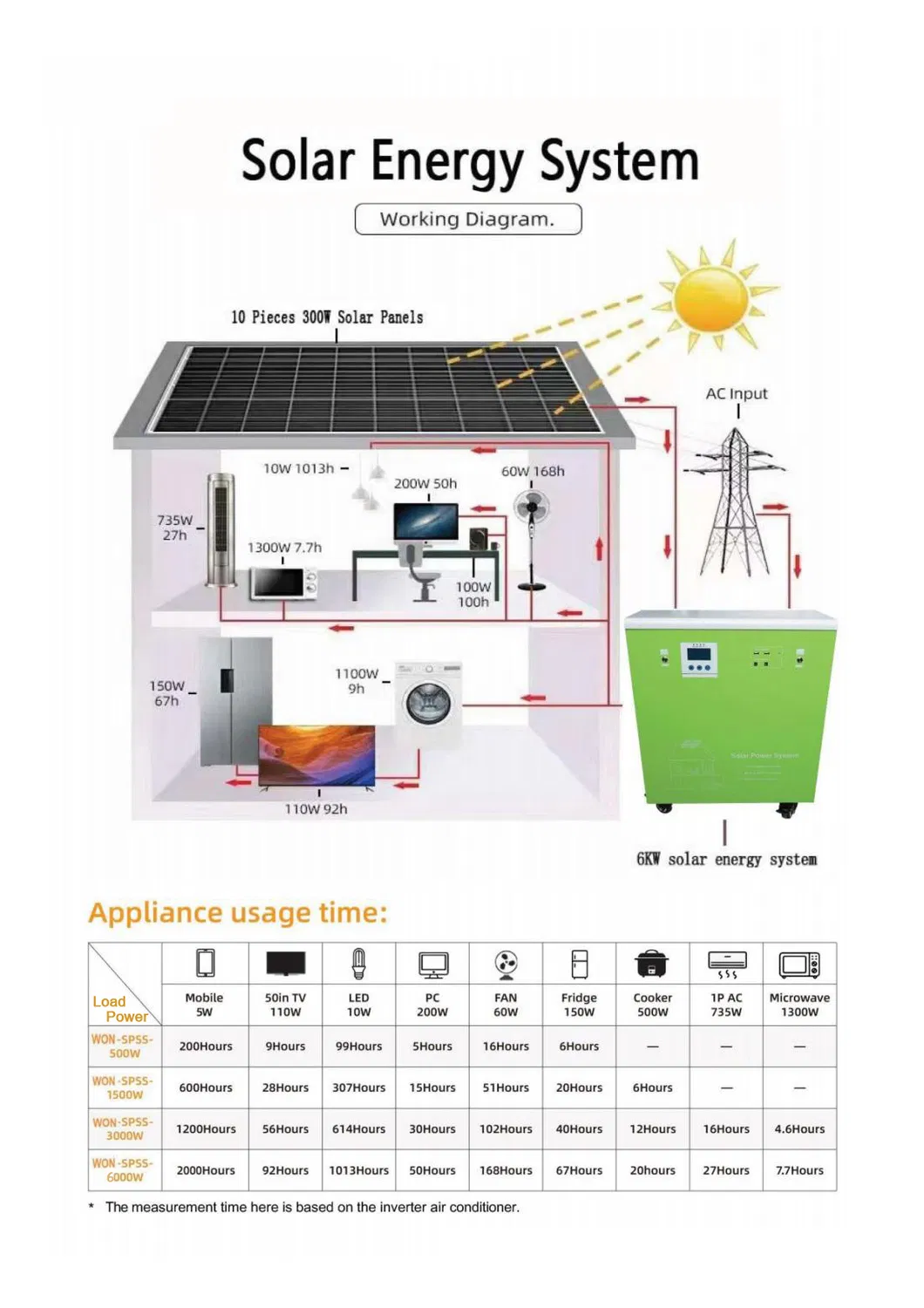

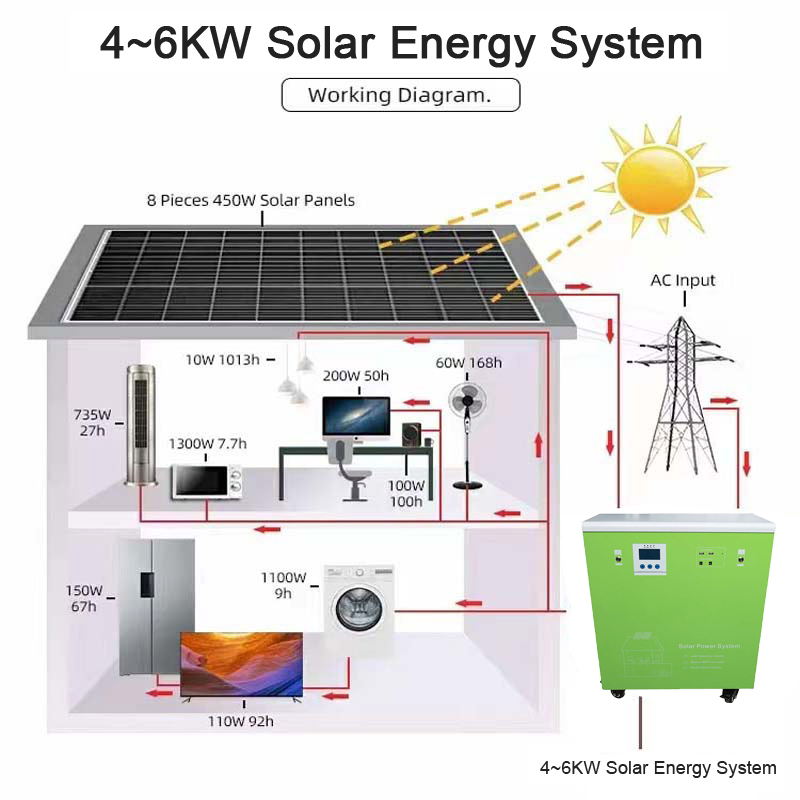

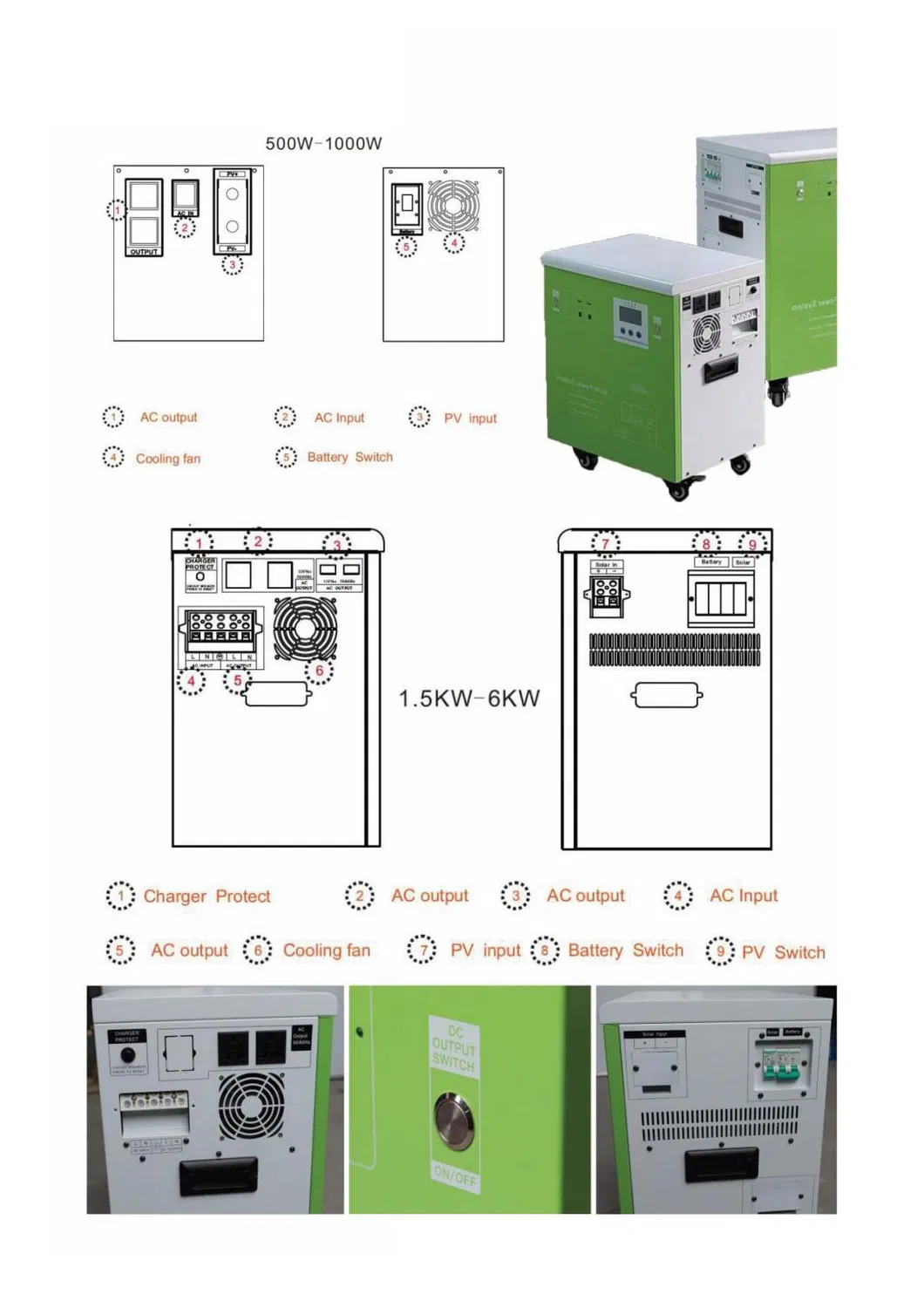

🔌 Wiring Diagram & Details
📋 Specifications
| Model | WON-SESS-AP500W | WON-SESS-AP1500W | WON-SESS-AP3000W | WON-SESS-AP6000W | |
| Solar Panel | Optional Panel | 100W 18V*2pcs | 250W 36V*3pcs | 300W 36V*4pcs | 300W 36V*8pcs |
| Charging Mode | PWM | MPPT | MPPT | MPPT | |
| Generation | 700WH/day | 2600WH/day | 4200WH/day | 8400WH/day | |
| System | Battery Capacity | 640WH | 2176WH | 4352WH | 8704WH |
| Rated Power | 500W | 1500W | 3000W | 6000W | |
| Net Weight | 22KG | 40KG | 55KG | 98KG | |
🏗️ System Components

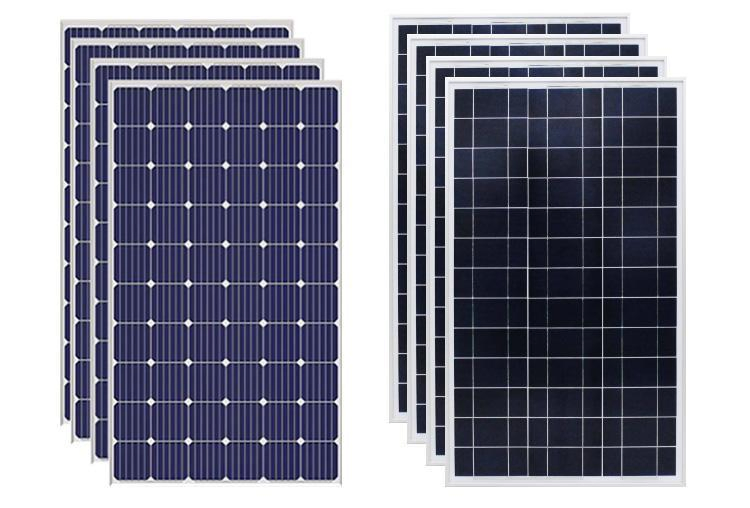

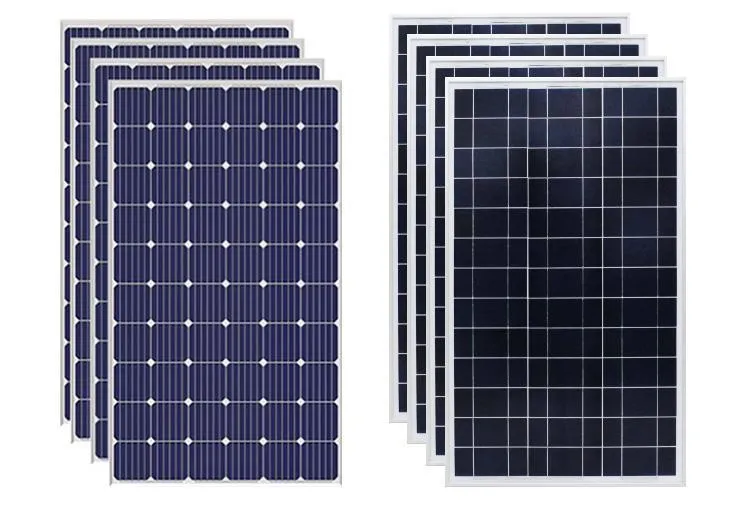

Solar Panels: High efficiency A Grade mono cells, 21% conversion efficiency, Anti-reflection tempered glass.

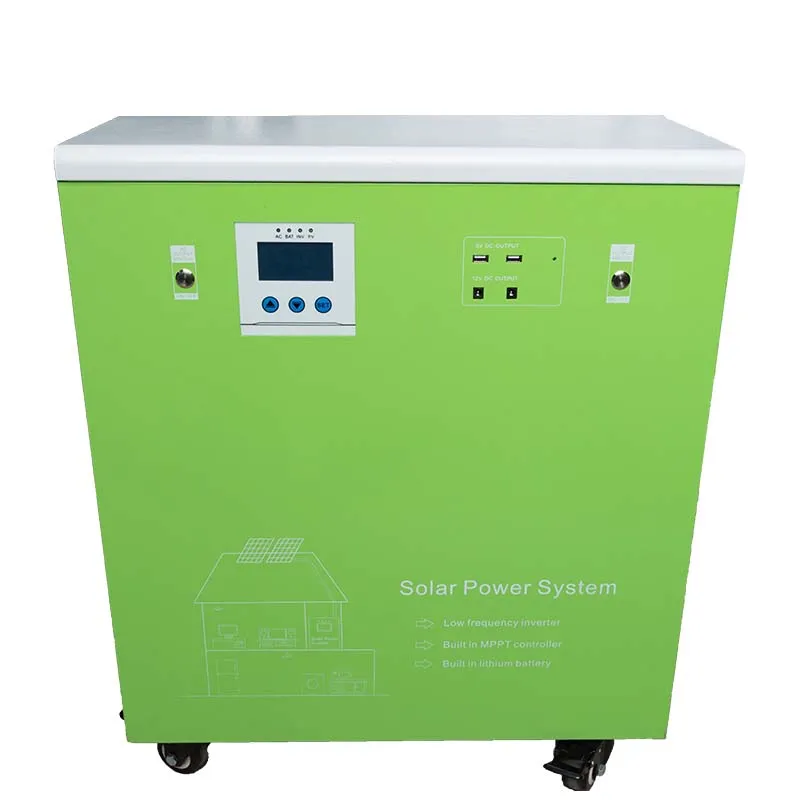

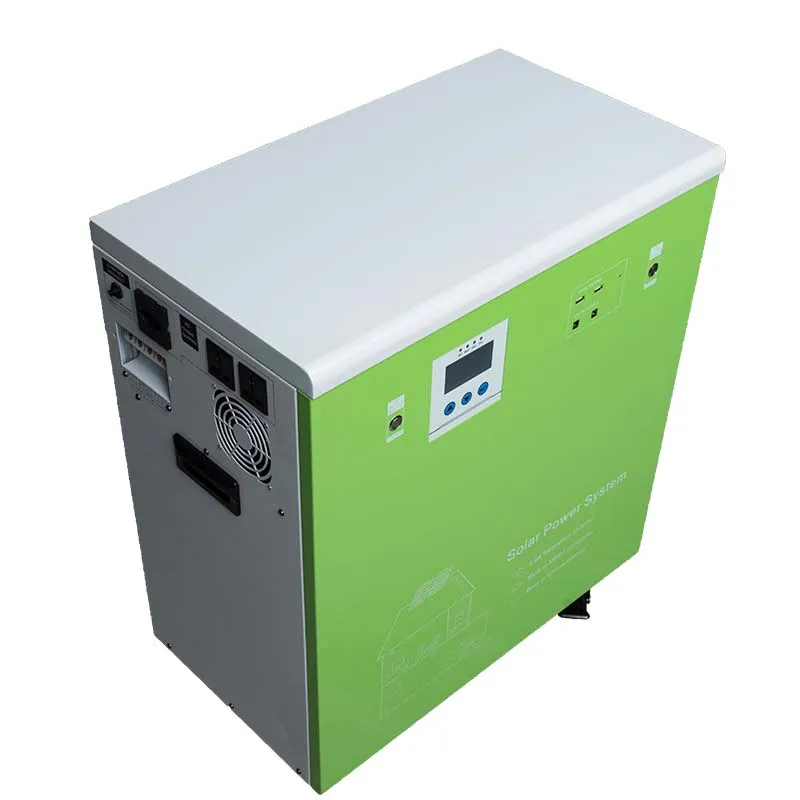

Power Generator: MCU intelligent control, Pure sine wave AC output, LCD display with automatic protection.

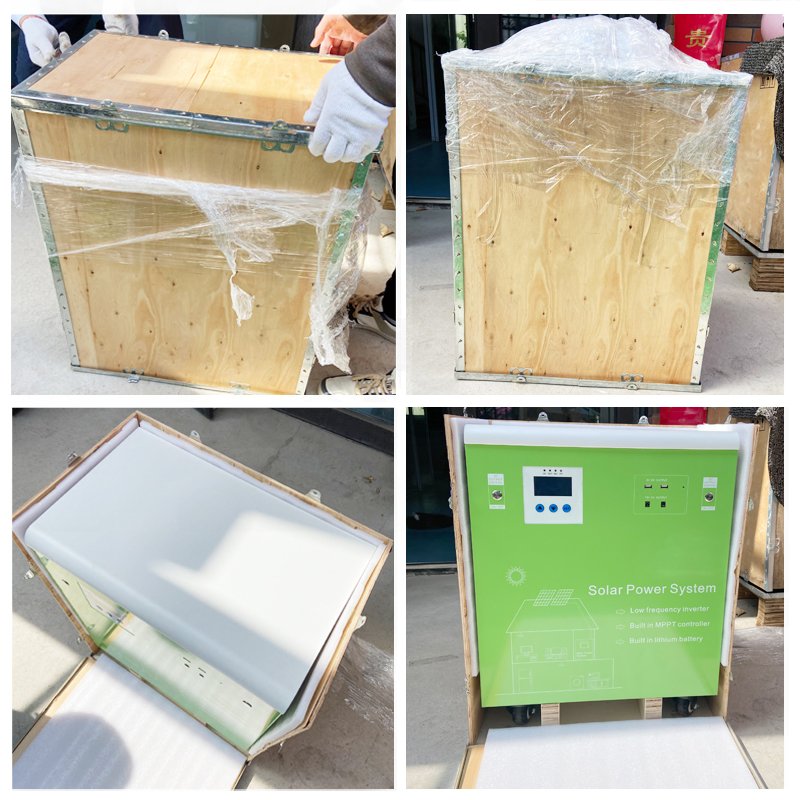

📦 Packing & Shipping
❓ Frequently Asked Questions
1. What components are included in this solar energy system?
The system is an all-in-one design including the solar panels, battery, and an integrated MPPT controller/frequency inverter system.
2. How do you guarantee the quality of the products?
We always provide a pre-production sample before mass production and perform a final inspection before every shipment to ensure quality.
3. What is the expected lifespan of the battery and panels?
The solar panels have a lifespan of approximately 25 years, while the LiFePO4 battery is designed to last up to 10 years (6 years rated service life).
4. Can the system be charged by the electrical grid?
Yes, it features a hybrid mode that allows charging via both solar energy and the utility grid, with a charging time of around 2-3 hours.
5. What kind of protections does the inverter provide?
The system includes overall automatic protection and alarms for AC output overload, short circuits, overvoltage, low voltage, and high temperatures.
6. What certifications do these solar systems hold?
Our solar energy systems are certified by ISO, CB, CE, and RoHS standards for international safety and quality compliance.
