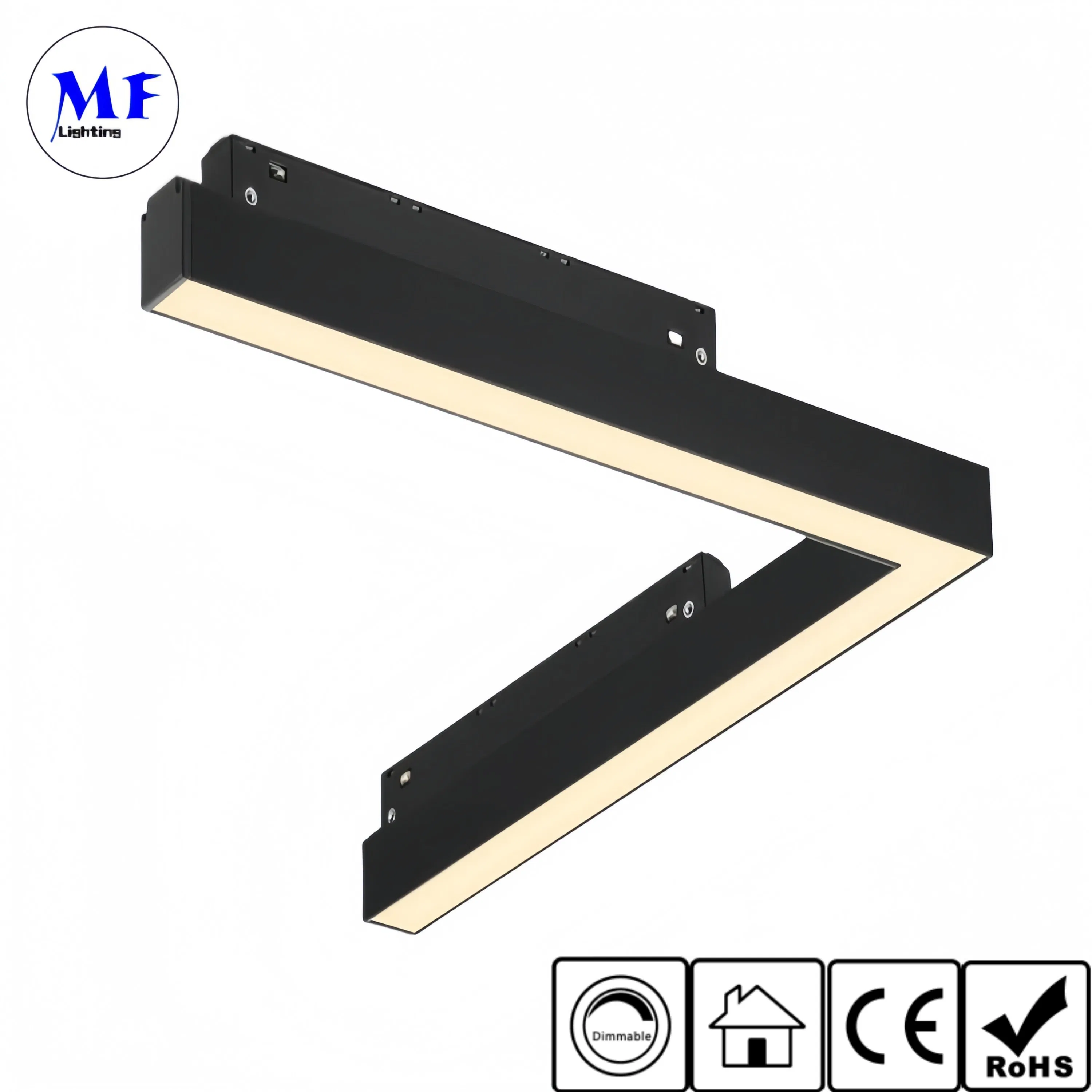

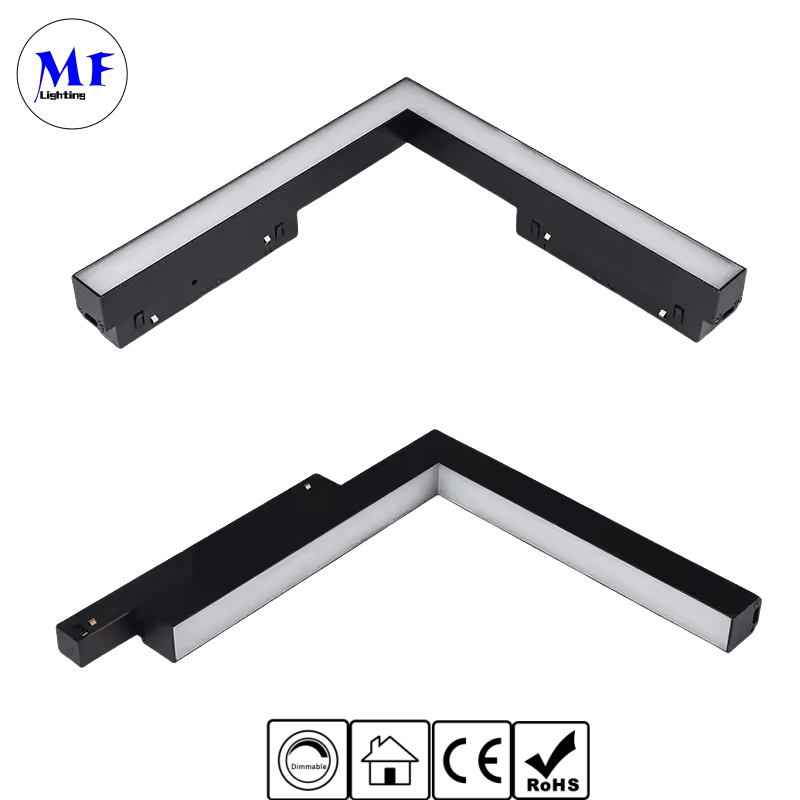

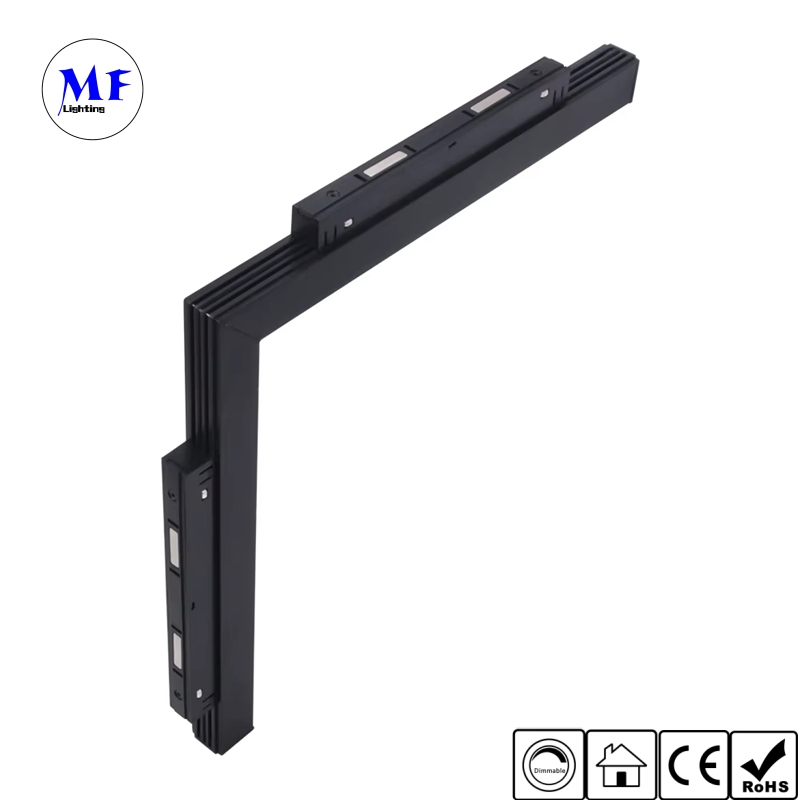

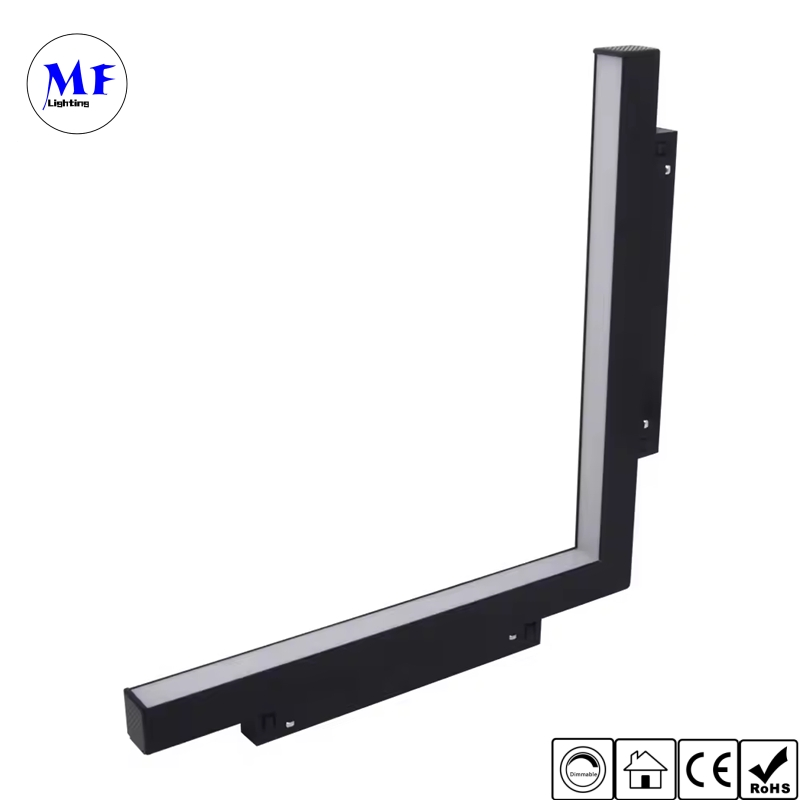

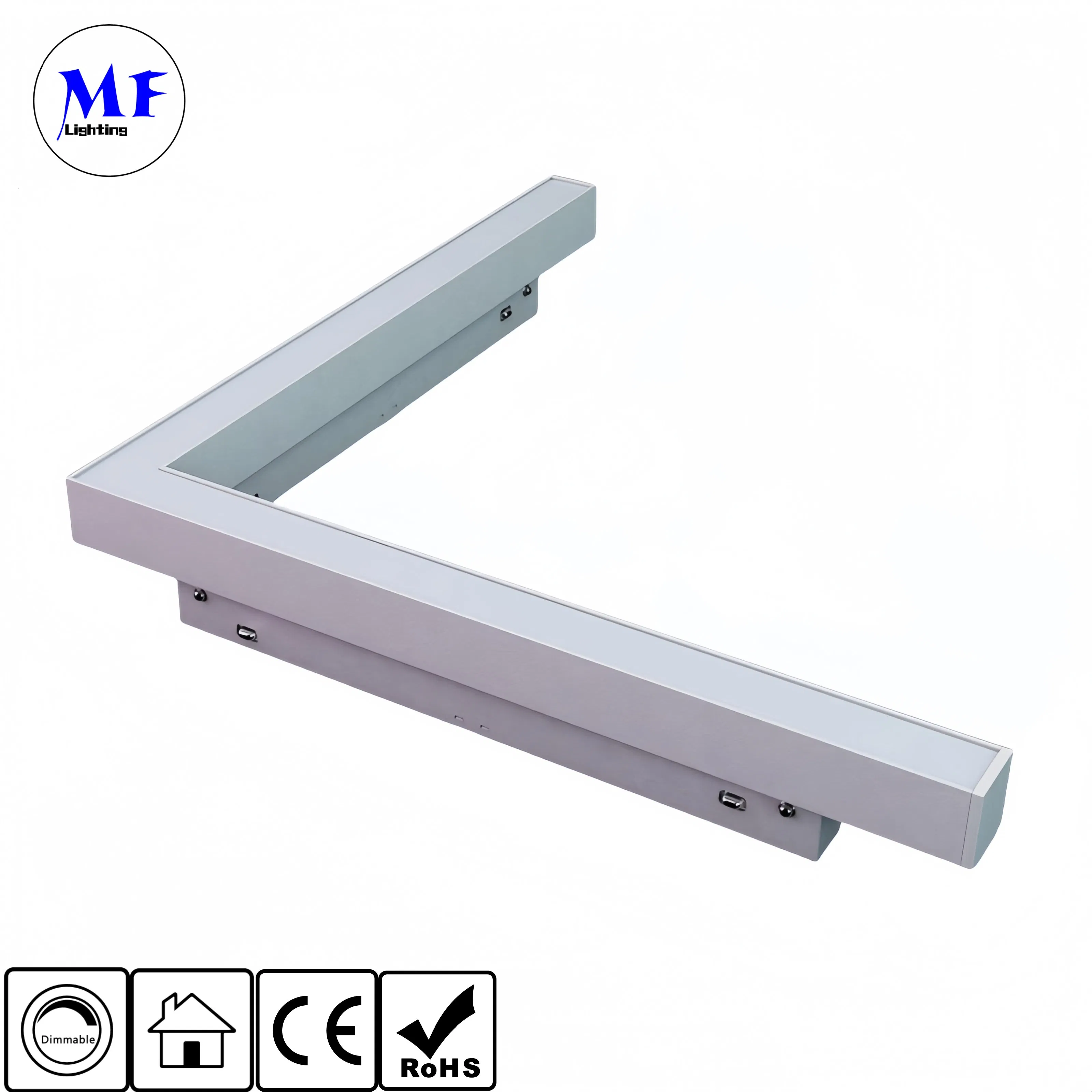

Factory Price 20W 0-10V Dimmable Anti-Glare Surface Mounted LED Magnetic Linear Flood Light for Offices Showrooms Specialty Stores Hotels Villas Clubs
Product Description
Basic Information
| Model NO. | MF-LMLL3020 |
| IP Rating | IP20 |
| Certification | CCC, CE, FCC, RoHS, SAA |
| Input Voltage | DC48V/DC24 310mA |
| LED Chips Brand | Osr |
| Color Rendering Index | Ra>90 |
| Beam Angle | 110° |
| CCT & Luminous Flux | 3000K 1400lm / 4000K 1500lm |
| Dimming | No Dim / Dali Dim / 0-10V |
| Product Color | White / Black |
| Warranty | 2 Years |
Product Description
20W 0-10V Dimmable Anti-glare Surface Mounted LED Magnetic Linear Flood Light for Offices, Showrooms, Specialty Stores, Hotels, Villas, and Clubs.

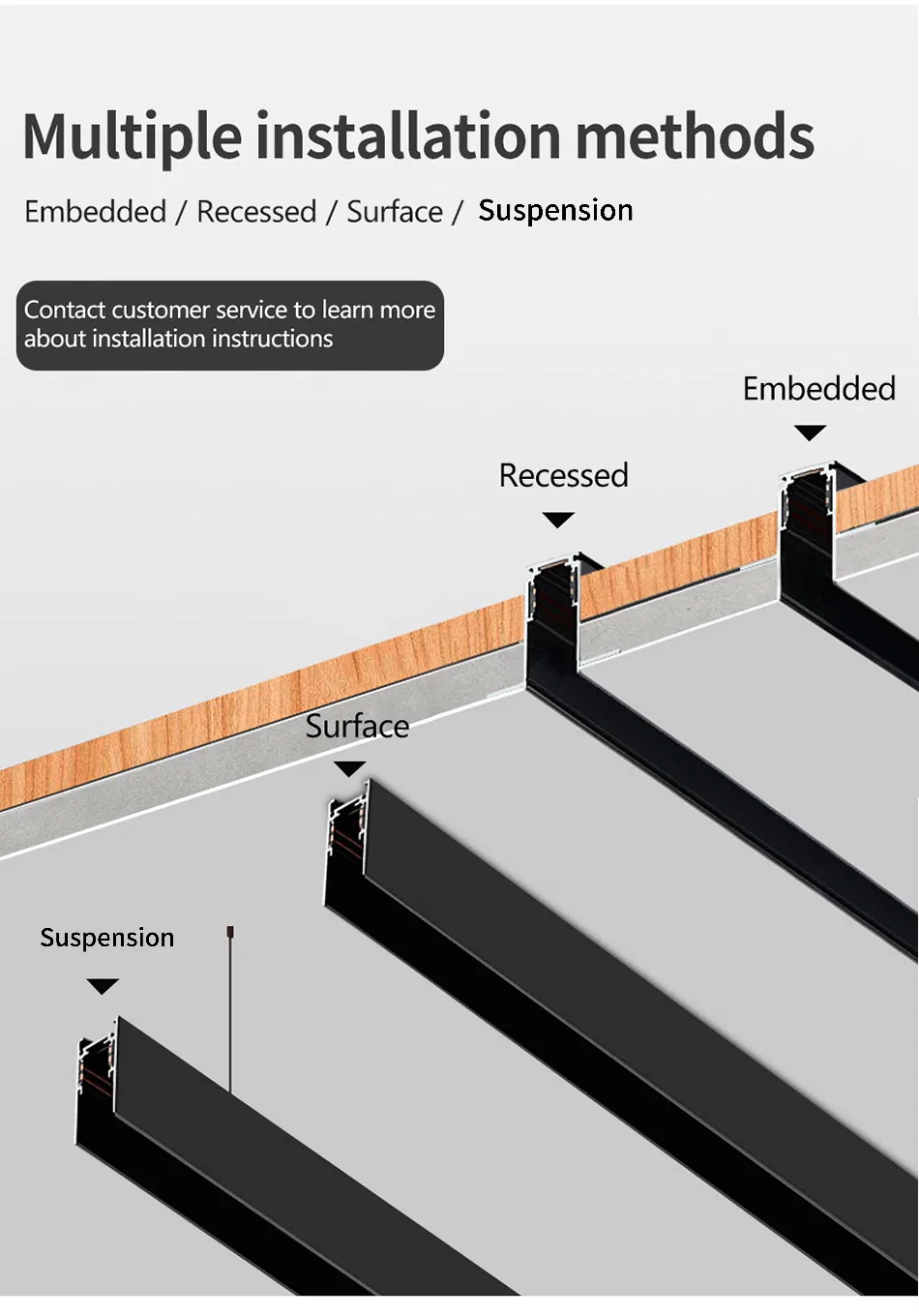

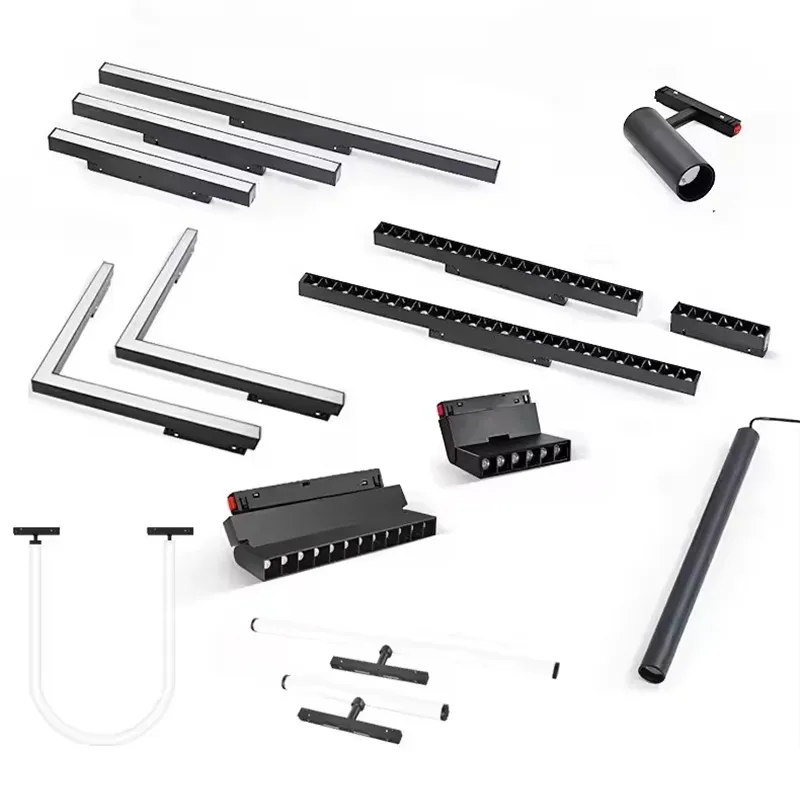

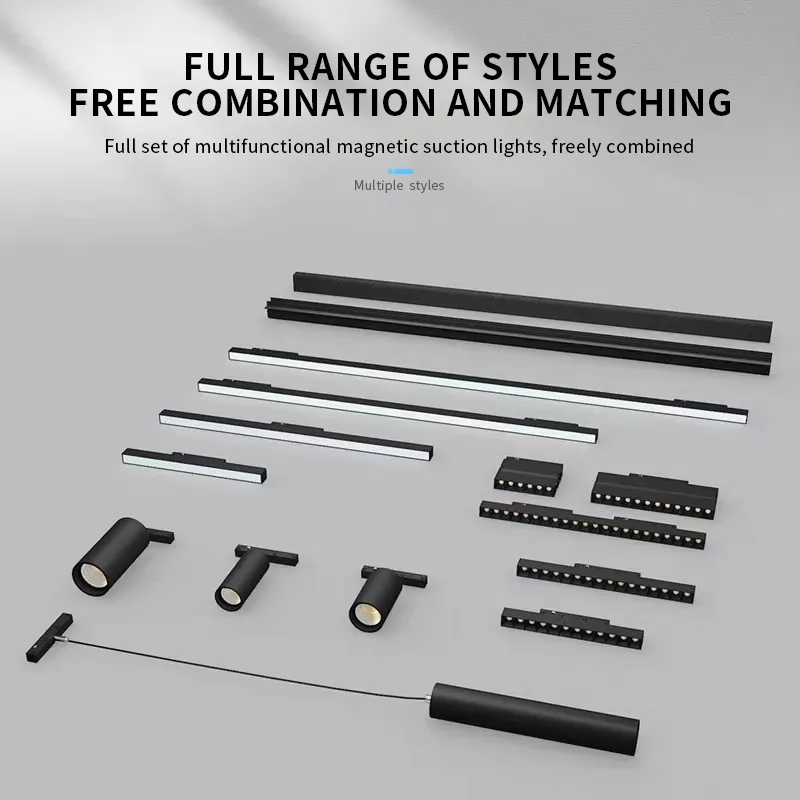

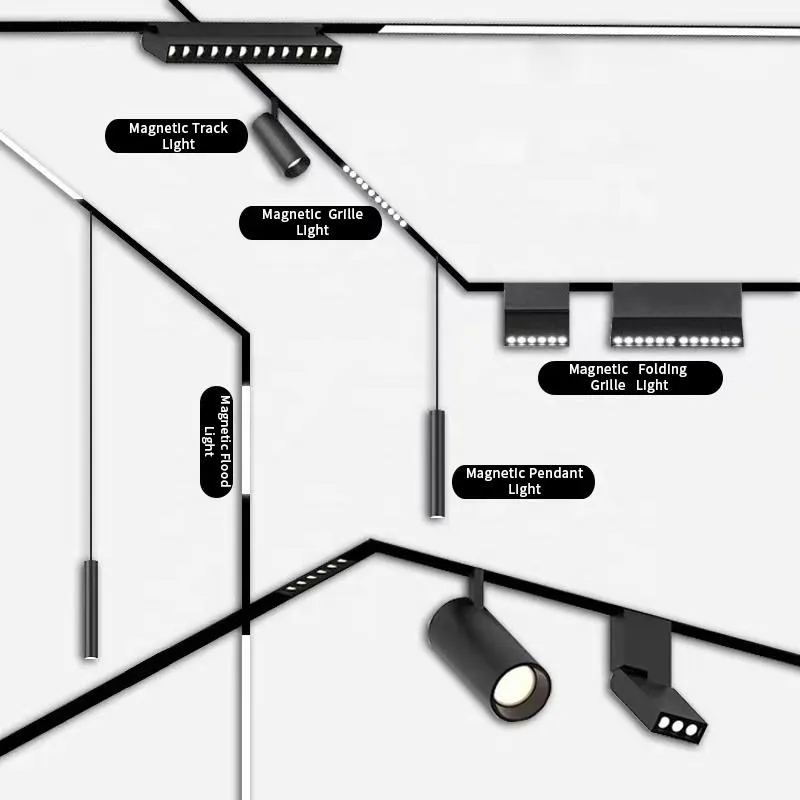

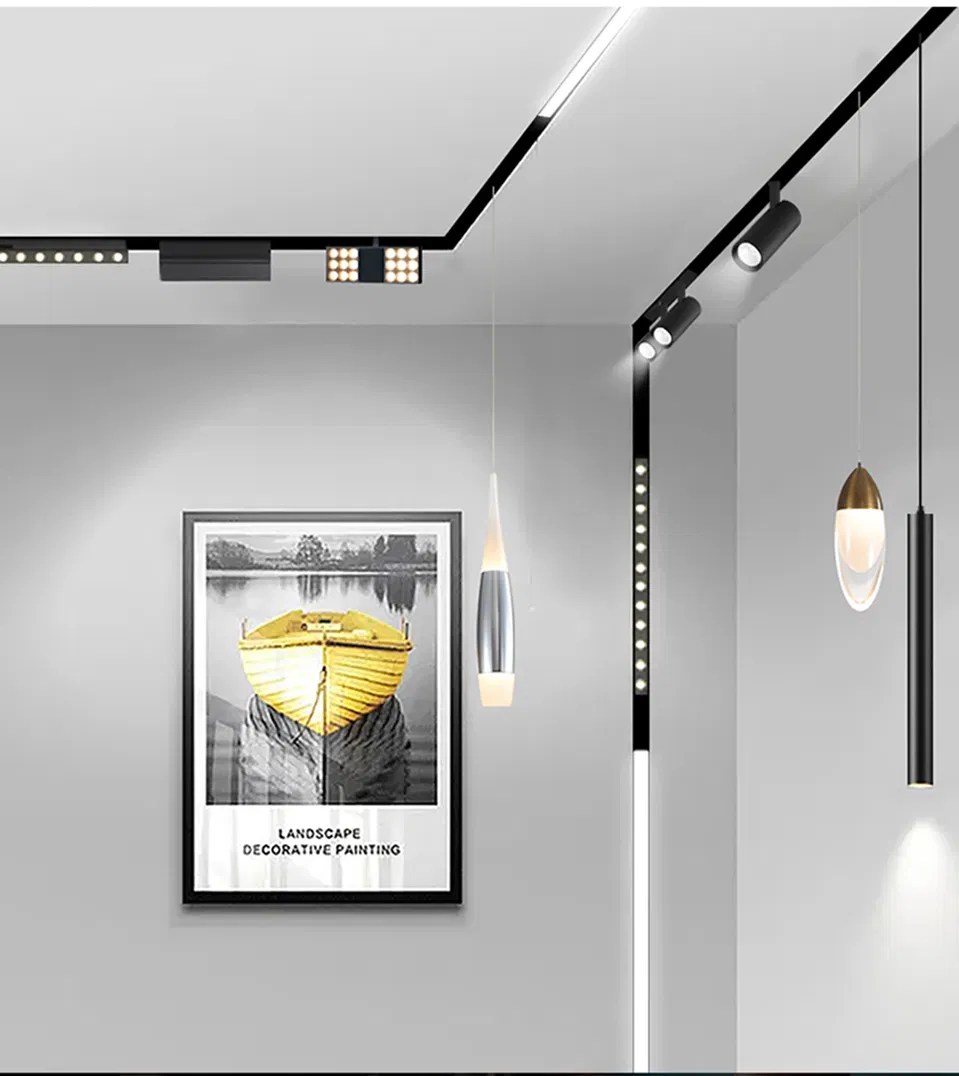

Magnetic lamp is a track-type quick-swap light that uses magnets to quickly absorb fixtures. The system is composed of magnetic tracks (surface mounted, recessed, or suspended) and various modular lamps such as flood linear lamps, anti-glare spotlights, wall washers, and decorative lamps. These can be used alone or in combination to meet modern architectural lighting needs.
Key Features
- ● Anti-glare design, comfortable for eyes
- ● Exquisite structure, high-grade appearance
- ● Low voltage operation for electric shock safety
- ● Magnet adsorption for random lighting combinations
- ● Double safety structure ensures fixtures do not drop
- ● Top quality materials for long lifetime

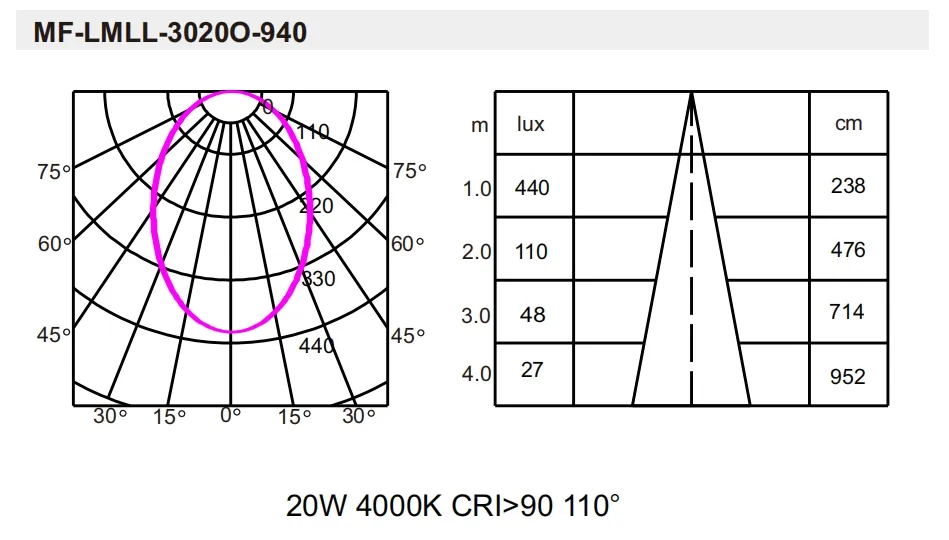

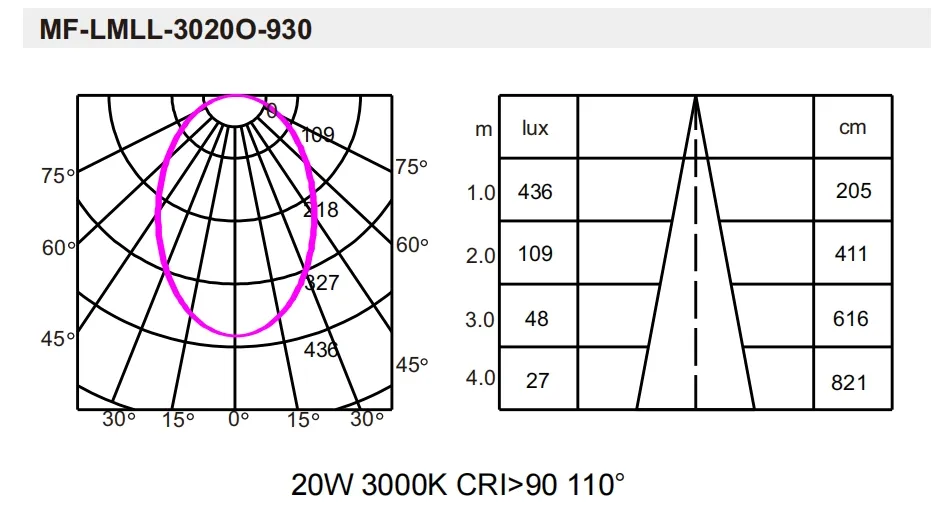

Technical Test Data

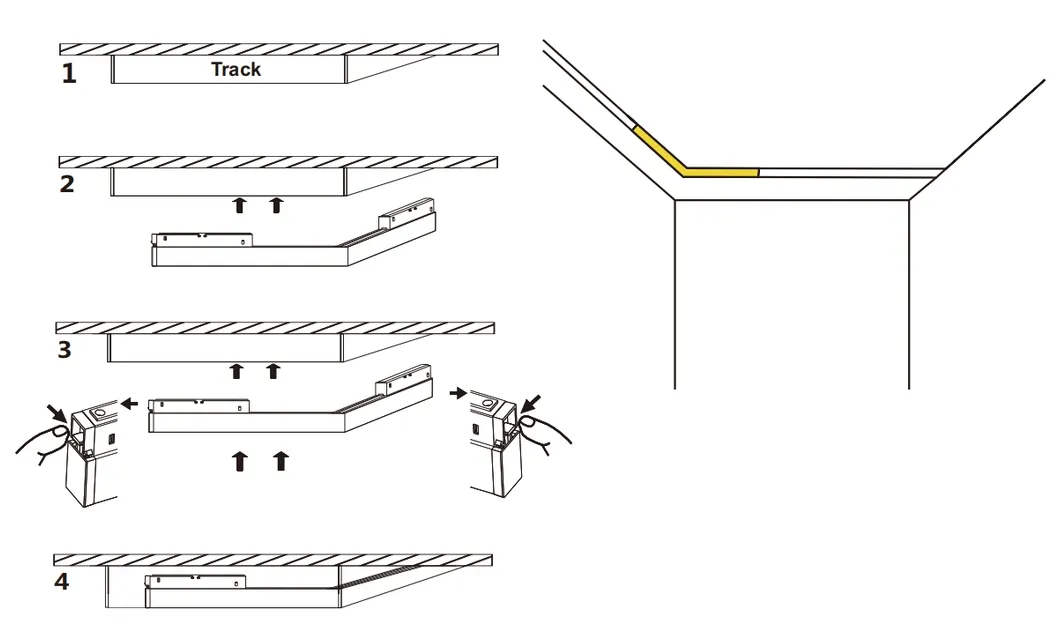

Installation Instructions
1. Install the track according to instructions before the lamp.
2. Hold both sides of the lamp clasp and place it into the track.
3. Secure the buckles, push the fitting in, and release to fasten.
4. Turn on power to test. Note: Always use safety clasps when removing.
2. Hold both sides of the lamp clasp and place it into the track.
3. Secure the buckles, push the fitting in, and release to fasten.
4. Turn on power to test. Note: Always use safety clasps when removing.

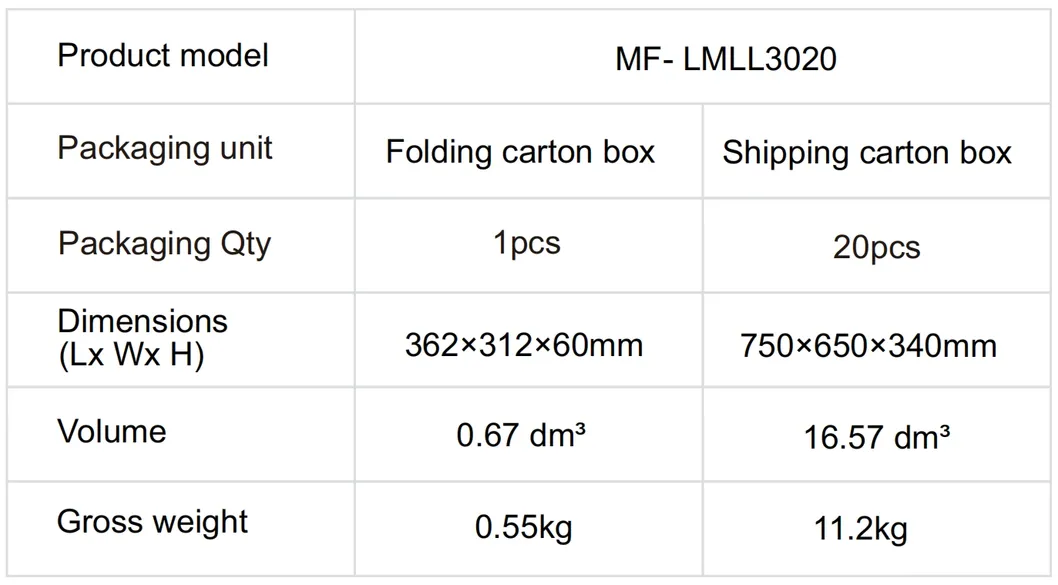

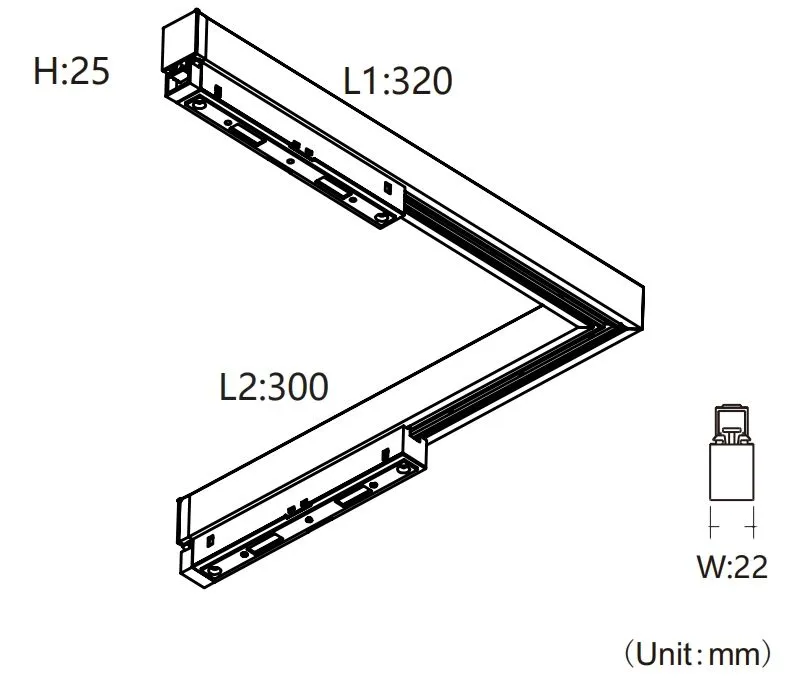

Dimensions & Logistics

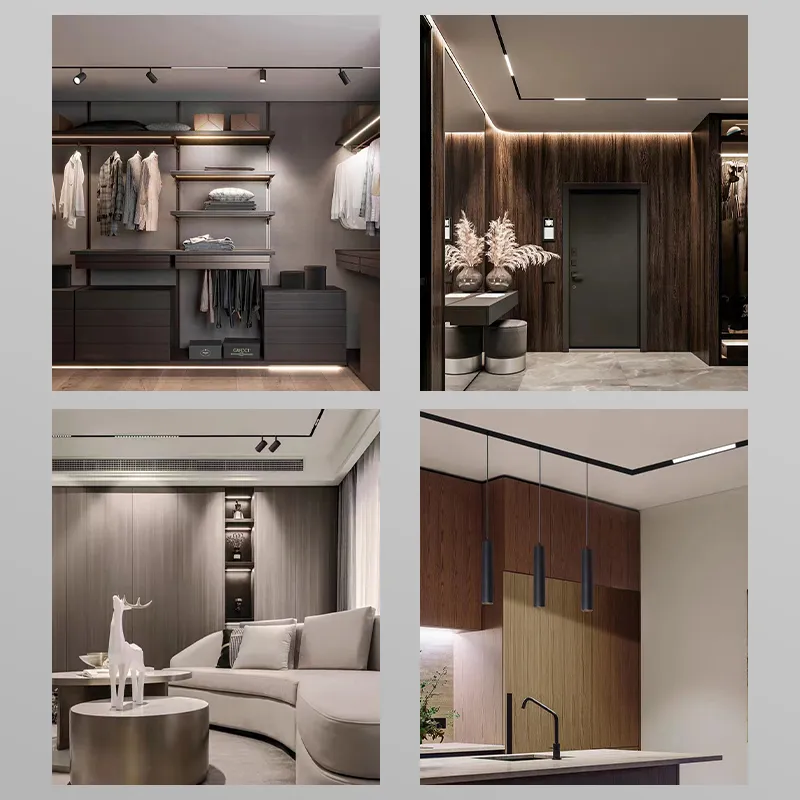

Applications
1. Commercial Displays: Ideal for shops and galleries to highlight products.
2. Home Decor: Directional lighting for living rooms, studies, and kitchens.
3. Accent Lighting: Precise illumination for artworks or dining areas.
4. Exhibitions: Creating engaging atmospheres for events.
5. Office Spaces: Supplemental lighting for enhanced productivity.
2. Home Decor: Directional lighting for living rooms, studies, and kitchens.
3. Accent Lighting: Precise illumination for artworks or dining areas.
4. Exhibitions: Creating engaging atmospheres for events.
5. Office Spaces: Supplemental lighting for enhanced productivity.

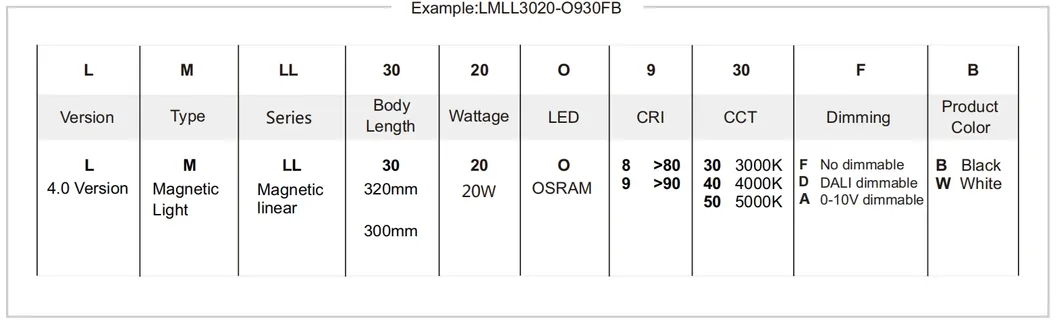

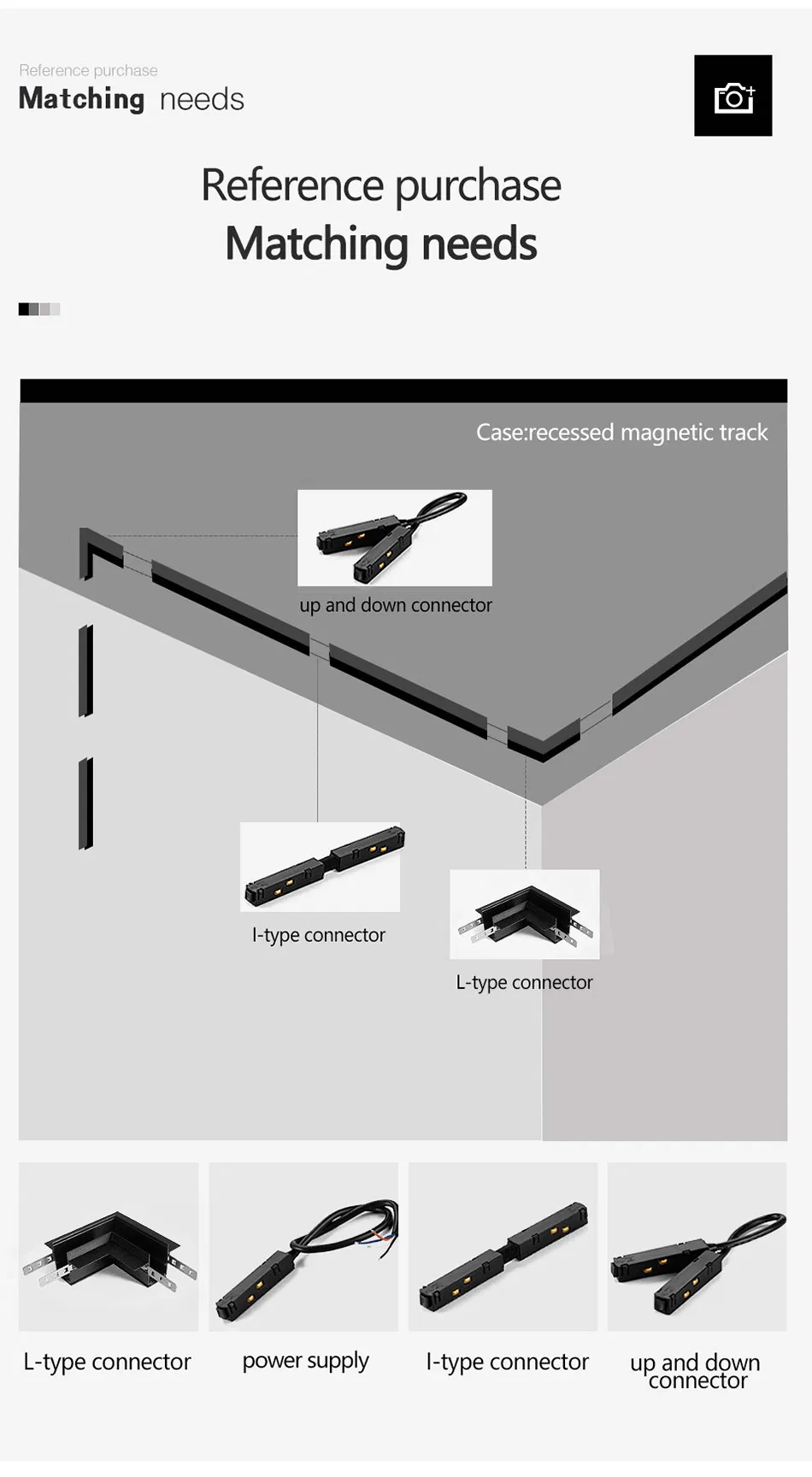

Selection Guide

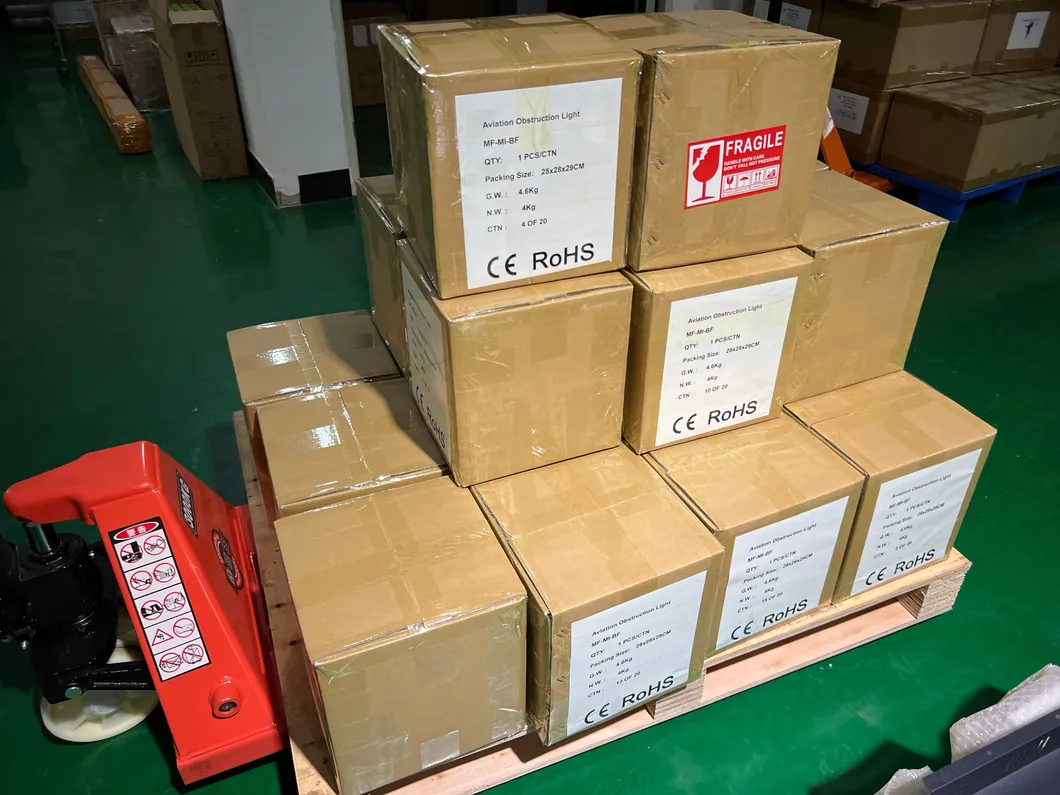

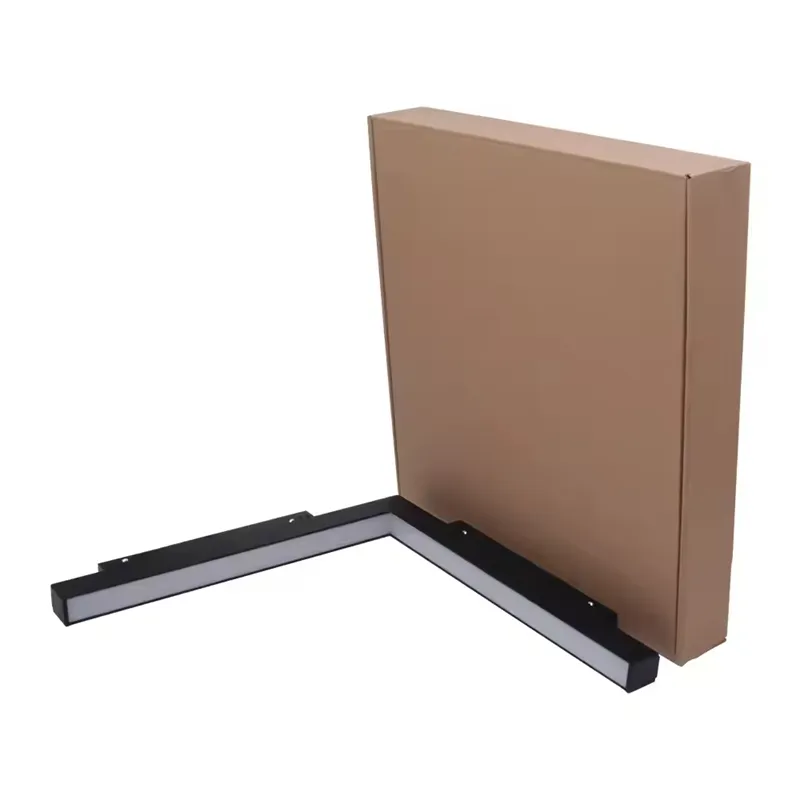

Packaging & Shipping
Frequently Asked Questions
1. Are you a professional manufacturer?
Yes, we have 16 years of experience in manufacturing professional lighting solutions including IP67 waterproof recessed lights and outdoor landscape lighting.
2. What are your main lighting products?
Our core range includes LED Triproof lights, High Bay lights, Flood lights, Explosion Proof lights, Down lights, and specialized underwater/garden lighting.
3. What is the minimum order quantity (MOQ)?
MOQ depends on the product. For customized models, we offer free customization for orders exceeding 1000 pieces.
4. What is the typical delivery time?
Samples are usually ready within 5-7 working days, while mass production takes approximately 20-30 working days depending on order volume.
5. Do you offer OEM/ODM services?
Absolutely. We provide comprehensive OEM/ODM services backed by our internal design team to meet specific client requirements.
6. How are the products protected during shipping?
Each unit is packed in an individual color box and then secured in a strong master carton to ensure safety during transit.
